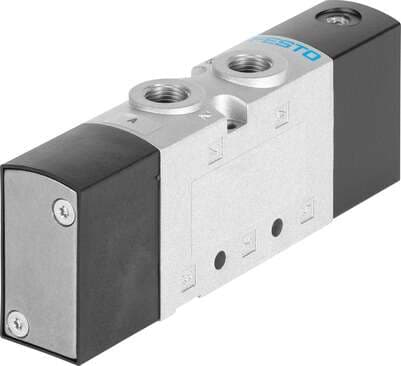

575708 Festo Directional Control Valves

Product Details

• Lap
  Overlap
• Pneumatic working port
  1/8 NPT
• Type code
  VUVS
• Pilot air supply port
  Internal
• Flow direction
  Non-reversible
• On switching time
  13 ms
• Max. negative test pulse on 1 signal
  2700 µs
• Temperature of medium
  -10 °C ... 60 °C
• Pilot medium
  Compressed air as per ISO 8573-1:2010 [7:4:4]
• Pilot exhaust air port 82
  10-32 UNF-2B
• Pneumatic connection 2
  1/8 NPT
• Seals material
  HNBR NBR
• Valve function
  5/3, closed
• Valve size
  21 mm
• Design
  Piston gate valve
• Sealing principle
  Soft
• Nominal width
  5 mm
• b-value
  0.35
• Operating medium
  Compressed air as per ISO 8573-1:2010 [7:4:4]
• Corrosion resistance class (CRC)
  2 - Moderate corrosion stress
Type of mounting
Optionally: With through-hole
Pneumatic connection 3
1/8 NPT
Housing material
Die-cast aluminum Painted
Actuation type
Electrical
Operating pressure
2.5 bar ... 10 bar
Exhaust air function
With flow control option
Type of control
Pilot-controlled
C value
2.9 l/sbar
Information on operating and pilot media
Operation with oil lubrication possible (required for further use)
Shock resistance
Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
Product weight
229 g
Pneumatic connection 1
1/8 NPT
Note on materials
RoHS-compliant
Material of screws
Steel, galvanized
Standard nominal flow rate
700 l/min
Certification
c UL us - Recognized (OL)
Manual override
Detenting Non-detenting
Symbol
00991033
Changeover time
24 ms
Vibration resistance
Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6
Ambient temperature
-10 °C ... 60 °C
Pneumatic connection 4
1/8 NPT
Reset method
Mechanical spring
Mounting position
Any
Switching time off
42 ms
Max. positive test pulse with 0 signal
1900 µs
Venting hole connection
Not ducted
Pilot exhaust air port 84
10-32 UNF-2B
Pneumatic connection 5
1/8 NPT
Piston slide material
High-alloy stainless steel
