559308 Festo Pneumatic Actuators

559308 on Powermatic Associates
Festo

Part#:559308

Alt. Part#:DSNU-40-80-PPS-A

Manufacturer:Festo

Category:Pneumatic Actuators

Product Lifecycle:Active

Product description

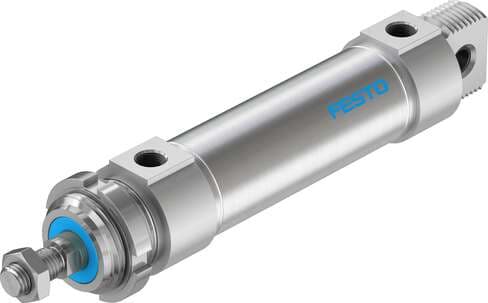

round cylinder DSNU-40-80-PPS-A with self-adjusting pneumatic end position cushioning Stroke: 80 mm, Piston diameter: 40 mm, Piston rod thread: M12x1,25, Cushioning: PPS: Self-adjusting pneumatic end-position cushioning, Assembly position: Any

Product Details

  • Piston rod thread
    M12x1.25
  • Operating pressure
    0.1 MPa ... 1 MPa
  • Corrosion resistance class (CRC)
    2 - Moderate corrosion stress
  • Moving mass
    358 g
  • Note on materials
    RoHS-compliant
  • Seals material
    NBR TPE-U(PU)
  • Symbol
    00992970
  • Information on operating and pilot media
    Operation with oil lubrication possible (required for further use)
  • Product weight
    853 g
  • Pneumatic connection
    G1/4
  • Stroke
    80 mm
  • Cushioning
    Self-adjusting pneumatic end-position cushioning
  • Position sensing
    For proximity sensor
  • Cushioning length
    18 mm
  • Cover material
    Wrought aluminum alloy
  • Material of cylinder barrel
    High-alloy stainless steel
  • Type code
    DSNU
  • Design
    Piston Cylinder barrel
  • Ambient temperature
    -20 °C ... 80 °C
  • Theoretical force at 6 bar, retracting
    633.3 N
  • Piston rod material
    High-alloy steel
  • Piston diameter
    40 mm
  • Mounting position
    Any
  • Mode of operation
    Double-acting
  • Operating medium
    Compressed air as per ISO 8573-1:2010 [7:4:4]
  • Theoretical force at 6 bar, advancing
    752.9 N
  • Type of mounting
    With accessories

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
