543876 Festo Proximity Sensors

543876 on Powermatic Associates
Festo

Part#:543876

Alt. Part#:SME-8M-DS-24V-K-7,5-OE

Manufacturer:Festo

Category:Proximity Sensors

Product Lifecycle:Active

Product description

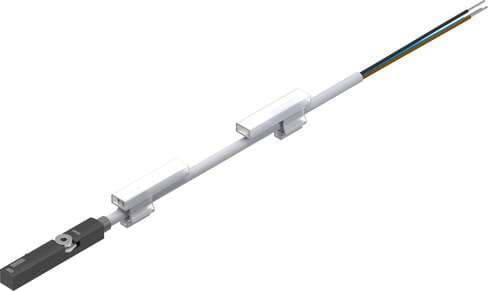

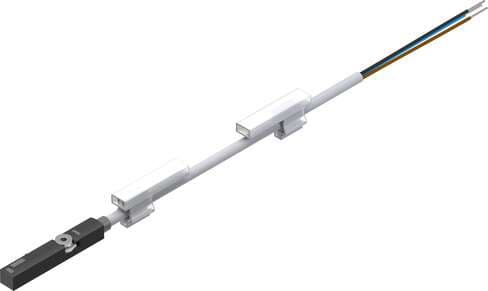

proximity sensor SME-8M-DS-24V-K-7,5-OE Electric, with reed contact, for drives with T-slot, assembly from above, with cable. Authorisation: (* RCM Mark, * c UL us - Listed (OL)), CE mark (see declaration of conformity): to EU directive for EMC, Special c

Product Details

  • Electrical connection 1, number of pins/wires
    3
  • CE marking (see declaration of conformity)
    As per EU EMC directive
  • Switching output
    Contact-based, bipolar
  • Max. switching capacity DC
    10 W
  • Voltage drop
    2.25 V
  • Connection outlet orientation
    Longitudinal
  • Connector cable test conditions
    Flexural strength: as per Festo standard Cable chain: 5 million cycles, bending radius 75 mm
  • Product weight
    86.8 g
  • Type code
    SME
  • Certification
    RCM compliance mark c UL us - Listed (OL)
  • Measuring principle
    Magnetic reed
  • Min. switching capacity AC
    10 VA
  • Short-circuit protection
    no
  • Cable characteristic
    Standard + cable chain
  • Housing material
    PA High-alloy stainless steel
  • Electrical connection 1, connection technology
    Open end
  • Symbol
    00991620
  • Note on materials
    Free of copper and PTFE RoHS-compliant
  • Max. output current in mounting kits
    80 mA
  • Switching element function
    N/O contact
  • Overload protection
    Not available
  • Cable length
    7.5 m
  • Type of mounting
    Screwed tightly Can be inserted in slot from above
  • Ambient temperature with flexible cable installation
    -5 °C ... 70 °C
  • Special features
    Oil-resistant
  • Max. output current
    500 mA
  • Max. switching capacity DC in mounting kits
    2.4 W
  • Operating voltage range AC
    5 V ... 30 V
  • Reverse polarity protection
    no
  • Degree of protection
    IP65 IP68
  • Electrical connection 1, connection type
    Cable
  • Ambient temperature
    -40 °C ... 70 °C
  • Max. switching capacity AC in mounting kits
    2.4 VA
  • DC operating voltage range
    5 V ... 30 V
  • Material of cable sheath
    TPE-U(PUR)
  • Switching status indication
    LED yellow

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

543876 Related Documents

543876 DataSheet.pdf
