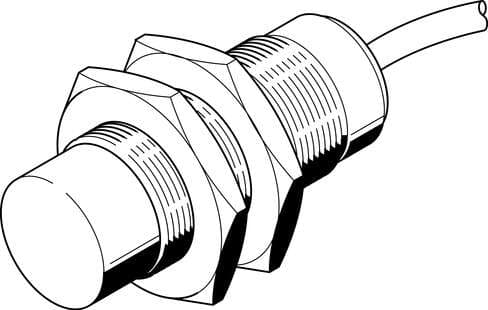

538334 Festo Proximity Sensors

Product Details

• Certification
  RCM compliance mark c UL us - Listed (OL)
• Rated operating distance
  15 mm
• Switching output
  NPN
• Max. switching frequency DC
  500 Hz
• Residual ripple
  10 %
• Reverse polarity protection
  for all electrical connections
• Type of mounting
  With lock nut
• Product weight
  158 g
• Corrosion resistance class (CRC)
  4 - Particularly high corrosion stress
• Symbol
  00991704
• Measuring principle
  Inductive
• Ambient temperature
  -25 °C ... 70 °C
• Switching element function
  N/O contact
• Max. output current
  200 mA
• DC operating voltage range
  10 V ... 30 V
• Electrical connection
  3-wire Cable
• Insulating sheath material
  PVC
• Tightening torque
  5 Nm
• Degree of protection
  IP65 IP67
• Selection of additional sensor information
  With standard switching distance
Design
Round
CE marking (see declaration of conformity)
As per EU EMC directive
Assured operating distance
12.15 mm
Repetition accuracy
0.3 mm
Voltage drop
≤ 1.8 V
Cable length
2.5 m
Size
M30
Switching status indication
LED yellow
Housing material
PA-reinforced
Electrical output
NPN
Type code
SIEN
Conforms to standard
EN 60947-5-2
Note on materials
Free of copper and PTFE
Reduction factors
Aluminum = 0.35 - 0.5 Steel St 37 = 1.0
Hysteresis
0.45 mm ... 2.25 mm
Short-circuit protection
Pulsed
Idle current
≤ 15 mA
Material of cable sheath
PVC
Mounting type
Not flush
Ambient temperature with flexible cable installation
0 °C ... 70 °C
Selection of sensor version
Polyamide housing
