538310 Festo Proximity Sensors

538310 on Powermatic Associates
Festo

Part#:538310

Alt. Part#:SIEF-M8NB-NS-K-L

Manufacturer:Festo

Category:Proximity Sensors

Product Lifecycle:Active

Product description

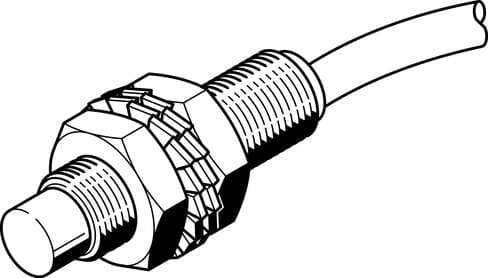

proximity sensor SIEF-M8NB-NS-K-L With cable, non-flush mounting Design: Round, Conforms to standard: EN 60947-5-2, Authorisation: (* RCM Mark, * c UL us - Listed (OL)), CE mark (see declaration of conformity): to EU directive for EMC, Materials note: Fre

Product Details

  • Rated operating distance
    4 mm
  • Switching output
    NPN
  • Voltage drop
    ≤ 1.8 V
  • Degree of protection
    IP67
  • Design
    Round
  • Measuring principle
    Inductive
  • Repetition accuracy
    0.08 mm
  • Max. output current
    150 mA
  • Residual ripple
    10 %
  • Cable length
    2.5 m
  • Type of mounting
    With lock nut
  • Type code
    SIEF
  • Certification
    RCM compliance mark c UL us - Listed (OL)
  • CE marking (see declaration of conformity)
    As per EU EMC directive
  • Ambient temperature
    -30 °C ... 85 °C
  • Max. switching frequency DC
    2000 Hz
  • Idle current
    ≤ 15 mA
  • Material of cable sheath
    TPE-U(PUR)
  • Tightening torque
    10 Nm
  • Switching status indication
    LED yellow
  • Resistance to interference from magnetic fields
    Magnetic direct and alternating fields
  • Selection of sensor version
    Standard
  • Conforms to standard
    EN 60947-5-2
  • Note on materials
    Free of copper and PTFE
  • Assured operating distance
    3.24 mm
  • Hysteresis
    0.12 mm ... 0.6 mm
  • Short-circuit protection
    Pulsed
  • Reverse polarity protection
    for all electrical connections
  • Size
    M8
  • Product weight
    77 g
  • Housing material
    PA High-alloy stainless steel
  • Corrosion resistance class (CRC)
    4 - Particularly high corrosion stress
  • Electrical output
    NPN
  • Symbol
    00991704
  • Reduction factors
    Aluminum = 1.0 Steel St 37 = 1.0
  • Switching element function
    N/O contact
  • DC operating voltage range
    10 V ... 30 V
  • Electrical connection
    3-wire Cable
  • Insulating sheath material
    PVC
  • Mounting type
    Partially flush
  • Ambient temperature with flexible cable installation
    0 °C ... 80 °C
  • Selection of additional sensor information
    With reduction factor 1 – resistance to magnetic fields

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
