535910 Festo Directional Control Valves
Part#:535910
Alt. Part#:MFH-5-1/4-S-EX
Manufacturer:Festo
Category:Directional Control Valves
Product Lifecycle:Active
Product description

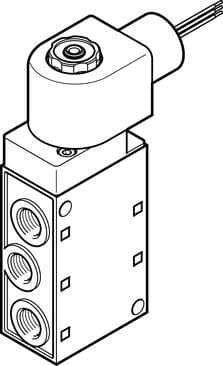

solenoid valve MFH-5-1/4-S-EX With manual override, without solenoid coil or socket. Solenoid coil and socket should be ordered separately. Valve function: 5/2 monostable, Type of actuation: electrical, Width: 30,5 mm, Standard nominal flow rate: 1000 l/m
Product Details
- Pilot air port 14 M5
- Pneumatic connection 5 G1/4
- Valve function 5/2, monostable
- Operating voltage Via solenoid coil, to be ordered separately
- Reset method Mechanical spring
- Type code MFH
- Mounting position Any
- Type of control Pilot-controlled
- C value 4.49 l/sbar
- Actuation type Electrical
- Standard nominal flow rate 1000 l/min
- Design Plate seat
- Nominal width 7 mm
- Manual override Detenting
- Symbol 00991024
- On switching time 9 ms
- ATEX category gas II 2G
- Type of (ignition) protection for dust Ex h IIIC T130°C Db
- CE marking (see declaration of conformity) as per EU explosion protection directive (ATEX)
- Temperature of medium -5 °C ... 40 °C
- Pilot exhaust air port 84 M5
- Pneumatic connection 4 G1/4
- Lap Underlap
- Operating pressure 0 bar ... 8 bar
- Width dimension 32 mm
- Sealing principle Soft
- Flow direction Non-reversible
- b-value 0.19
- Coil characteristics See solenoid coil, to be ordered separately
- ATEX category for dust II 2D
- Information on operating and pilot media Operation with oil lubrication possible (required for further use)
- Electrical connection Via F coil, to be ordered separately
- Explosion prevention and protection Zone 1 (ATEX) Zone 22 (ATEX)
- Ambient temperature -5 °C ... 40 °C
- Type of mounting Optionally: With through-hole
- Pneumatic connection 1 G1/4
- Width 30.5 mm
- Pneumatic working port G1/4
- Degree of protection IP65
- Exhaust air function With flow control option
- Pilot air supply port External
- Pilot pressure 1.5 bar ... 8 bar
- Switching time off 29 ms
- Max. negative test pulse on 1 signal 3700 µs
- Type of ignition protection for gas Ex h IIC T4 Gb
- Operating medium Compressed air as per ISO 8573-1:2010 [7:4:4]
- Storage temperature -20 °C ... 60 °C
- Product weight 290 g
- Venting hole connection M5
- Pneumatic connection 3 G1/4
- Note on materials RoHS-compliant
- Housing material Die-cast aluminum
- Max. positive test pulse with 0 signal 2200 µs
- Explosive ambient temperature -5°C <= Ta <= +40°C
- Corrosion resistance class (CRC) 1 - Low corrosion stress
- Pilot medium Compressed air as per ISO 8573-1:2010 [7:4:4]
- Pneumatic connection 2 G¼
- Seals material NBR TPE-U(PU)
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
