533236 Festo Pneumatic Fittings

533236 on Powermatic Associates
Festo

Part#:533236

Alt. Part#:QBL-1/8-5/16-U-M

Manufacturer:Festo

Category:Pneumatic Fittings

Product Lifecycle:Active

8 in stock

Apr 3, 2025

Product description

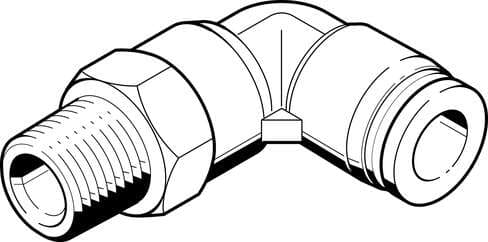

push-in L-fitting QBL-1/8-5/16-U-M 360° orientable, male thread with external hexagon. Size: Standard, Nominal size: 0,236 ", Type of seal on screw-in stud: coating, Operating pressure complete temperature range: -13,8 - 145 Psi, Maritime classification:

Product Details

  • Maritime classification
    See certificate
  • Type of seal on screwed trunnion
    Coating
  • Releasing ring color
    Gray
  • Material of tube retaining claw
    High-alloy stainless steel
  • Size
    Standard
  • Operating medium
    Compressed air as per ISO 8573-1:2010 [7:-:-]
  • Note on materials
    RoHS-compliant
  • Nominal width
    5.994 mm
  • Corrosion resistance class (CRC)
    1 - Low corrosion stress
  • Ambient temperature
    0 °C ... 60 °C
  • Material of threaded seal
    NBR
  • Type code
    QBL
  • Information on operating and pilot media
    Operation with oil lubrication possible
  • Product weight
    17.095 g
  • Releasing ring material
    POM
  • Operating pressure for entire temperature range
    -0.951 bar ... 9.997 bar
  • Housing material
    PBT

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

533236 Related Documents

533236 DataSheet.pdf
