533227 Festo Pneumatic Fittings

533227 on Powermatic Associates
Festo

Part#:533227

Alt. Part#:QB-1/2-1/2-U-M

Manufacturer:Festo

Category:Pneumatic Fittings

Product Lifecycle:Active

Only 1 left in stock. Order Now!

Apr 23, 2025

Product description

push-in fitting QB-1/2-1/2-U-M male thread with external hexagon. Size: Standard, Nominal size: 0,394 ", Type of seal on screw-in stud: coating, Operating pressure complete temperature range: -13,8 - 145 Psi, Maritime classification: see certificate

Product Details

  • Type code
    QB
  • Ambient temperature
    0 °C ... 60 °C
  • Releasing ring color
    Gray
  • Material of threaded seal
    NBR
  • Nominal width
    10.008 mm
  • Operating medium
    Compressed air as per ISO 8573-1:2010 [7:-:-]
  • Housing material
    PBT
  • Size
    Standard
  • Type of seal on screwed trunnion
    Coating
  • Corrosion resistance class (CRC)
    1 - Low corrosion stress
  • Information on operating and pilot media
    Operation with oil lubrication possible
  • Note on materials
    RoHS-compliant
  • Releasing ring material
    POM
  • Maritime classification
    See certificate
  • Operating pressure for entire temperature range
    -0.951 bar ... 9.997 bar
  • Product weight
    46.097 g
  • Material of tube retaining claw
    High-alloy stainless steel

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

533227 Related Documents

533227 DataSheet.pdf

Similar products from: Festo Pneumatic Fittings

153134 on Powermatic Associates

153134

Festo

push-in T-connector QST-6-4 reducing. Size: Standard, Nominal size: 2,3 mm, Assembly position: Any, Container size: 10, Design structure: Push/pull principle

8 in stock
2030 on Powermatic Associates

2030

Festo

quick connector CK-1/4-PK-6 Male thread with sealing ring, metal version. Nominal size: 4,9 mm, Type of seal on screw-in stud: Sealing ring, Assembly position: Any, Maritime classification: see certificate, Operating medium: (* Compressed air in accordanc

10 in stock
572319 on Powermatic Associates

572319

Festo

push-in fitting QB-1/8-5/16-I-U Size: Standard, Nominal size: 0,189 ", Type of seal on screw-in stud: coating, Assembly position: Any, Design structure: Push/pull principle

7 in stock
572311 on Powermatic Associates

572311

Festo

push-in fitting QBM-10-32-UNF-1/8-I-U Size: Mini, Nominal size: 0,094 ", Type of seal on screw-in stud: Sealing ring, Assembly position: Any, Design structure: Push/pull principle

3 in stock
567779 on Powermatic Associates

567779

Festo

push-in connector QB-3/8H-5/16-U male thread with external hexagon. Size: Standard, Nominal size: 0,256 ", Assembly position: Any, Design structure: Push/pull principle, Operating pressure complete temperature range: -13,8 - 145 Psi

3 in stock
564801 on Powermatic Associates

564801

Festo

push-in connector QB-5/16T-1/4-U reducing. Size: Standard, Nominal size: 0,197 ", Assembly position: Any, Design structure: Push/pull principle, Operating pressure complete temperature range: -13,8 - 145 Psi

8 in stock

Manufacturer warranty

533227 Festo

Get a quick Quote!

Request a quote, and we will send you price within minutes.

Stock:

1

Select Qty:

Average response time: 11 minutes

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty

Responsive Customer Support

Got Questions? We've Got Answers!

Need more details?

Feel free to chat with us

Compare 533227 with other Pneumatic Fittings products

Type code

Ambient temperature

Releasing ring color

Material of threaded seal

Nominal width

Operating medium

Housing material

Size

Type of seal on screwed t...

Corrosion resistance clas...

Selected product

533227
1 in stock
533227
Festo

push-in fitting QB-1/2-1/2-U-M male thread with external hexagon. Size: Standard, Nominal size: 0,39...

Type codeQB

Ambient temperature0 °C ... 60 °C

Releasing ring colorGray

Material of threaded sealNBR

Nominal width10.008 mm

Operating mediumCompressed air as per ISO 85...

Housing materialPBT

SizeStandard

Type of seal on screwed trunnionCoating

Corrosion resistance class (CRC)1 - Low corrosion stress

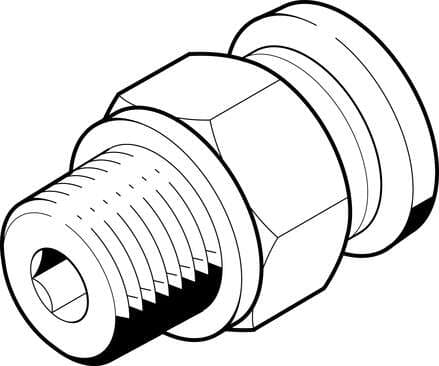

533219
