533224 Festo Pneumatic Fittings
Part#:533224
Alt. Part#:QB-3/8-3/8-U-M
Manufacturer:Festo
Category:Pneumatic Fittings
Product Lifecycle:Active
Mar 15, 2025
Product description

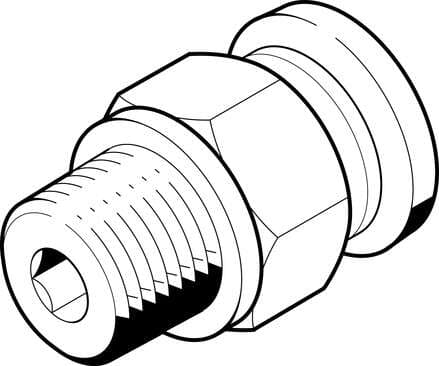

push-in fitting QB-3/8-3/8-U-M male thread with external hexagon. Size: Standard, Nominal size: 0,315 ", Type of seal on screw-in stud: coating, Operating pressure complete temperature range: -13,8 - 145 Psi, Maritime classification: see certificate
Product Details
- Corrosion resistance class (CRC) 1 - Low corrosion stress
- Releasing ring color Gray
- Type code QB
- Type of seal on screwed trunnion Coating
- Note on materials RoHS-compliant
- Maritime classification See certificate
- Operating medium Compressed air as per ISO 8573-1:2010 [7:-:-]
- Housing material PBT
- Material of tube retaining claw High-alloy stainless steel
- Size Standard
- Operating pressure for entire temperature range -0.951 bar ... 9.997 bar
- Information on operating and pilot media Operation with oil lubrication possible
- Material of threaded seal NBR
- Nominal width 8.001 mm
- Ambient temperature 0 °C ... 60 °C
- Product weight 20.412 g
- Releasing ring material POM
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
