153330 Festo Pneumatic Fittings

Name: 153330
Brand: Festo

Part#:153330

Alt. Part#:QSML-M3-3

Manufacturer:Festo

Category:Pneumatic Fittings

Product Lifecycle:Active

Only 5 left in stock. Order Now!

Apr 24, 2025

Product description

push-in L-fitting QSML-M3-3 360° orientable, male thread with external hexagon. Size: Mini, Nominal size: 0,8 mm, Type of seal on screw-in stud: Sealing ring, Assembly position: Any, Container size: 10

Product Details

Size
Mini
Type of seal on screwed trunnion
Sealing ring
Maritime classification
See certificate
Design
Push-pull principle
Operating medium
Compressed air as per ISO 8573-1:2010 [7:-:-]
Product weight
1.4 g
Note on materials
RoHS-compliant
Material of tubing seal
NBR
Type code
QSML
Nominal width
0.8 mm
Pack size
10
Mounting position
Any
Pneumatic connection 1
External thread M3
Releasing ring color
Blue
Releasing ring material
POM
Information on operating and pilot media
Operation with oil lubrication possible
Nominal tightening torque
0.48 Nm
Material of tube retaining claw
High-alloy stainless steel
Operating pressure for entire temperature range
-0.95 bar ... 6 bar
Corrosion resistance class (CRC)
1 - Low corrosion stress

Housing material

PBT

Temperature-dependent operating pressure

-0.95 bar ... 14 bar

Ambient temperature

-10 °C ... 80 °C

Tolerance for nominal tightening torque

± 55%

Pneumatic connection 2

for pneumatic tubing outside diameter 3 mm

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

153330 Related Documents

153330 DataSheet.pdf

Similar products from: Festo Pneumatic Fittings

533285

Festo

push-in L-fitting QBML-10-32-UNF-1/8-U 360° orientable, male thread with external hexagon. Size: Standard, Nominal size: 0,098 ", Type of seal on screw-in stud: Sealing ring, Assembly position: Any, Design structure: Push/pull principle

4 in stock

2030

Festo

quick connector CK-1/4-PK-6 Male thread with sealing ring, metal version. Nominal size: 4,9 mm, Type of seal on screw-in stud: Sealing ring, Assembly position: Any, Maritime classification: see certificate, Operating medium: (* Compressed air in accordanc

10 in stock

564817

Festo

push-in connector QB-3/8H-1/4-U male thread with external hexagon. Size: Standard, Nominal size: 0,22 ", Assembly position: Any, Design structure: Push/pull principle, Operating pressure complete temperature range: -13,8 - 145 Psi

9 in stock

132047

Festo

push-in fitting QS-G1/2-16-20 male thread with external hexagon. Size: Standard, Nominal size: 13 mm, Type of seal on screw-in stud: Sealing ring, Assembly position: Any, Container size: 20

20 in stock

572319

Festo

push-in fitting QB-1/8-5/16-I-U Size: Standard, Nominal size: 0,189 ", Type of seal on screw-in stud: coating, Assembly position: Any, Design structure: Push/pull principle

7 in stock

572311

Festo

push-in fitting QBM-10-32-UNF-1/8-I-U Size: Mini, Nominal size: 0,094 ", Type of seal on screw-in stud: Sealing ring, Assembly position: Any, Design structure: Push/pull principle

3 in stock

Manufacturer warranty

153330 Festo

Get a quick Quote!

Request a quote, and we will send you price within minutes.

Stock:

Select Qty:

Average response time: 11 minutes

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty

Responsive Customer Support

Got Questions? We've Got Answers!

Need more details?

Feel free to chat with us

Compare 153330 with other Pneumatic Fittings products

Size

Type of seal on screwed t...

Maritime classification

Design

Operating medium

Product weight

Note on materials

Material of tubing seal

Type code

Nominal width

Selected product

5 in stock

153330

Festo

push-in L-fitting QSML-M3-3 360° orientable, male thread with external hexagon. Size: Mini, Nominal ...

SizeMini

Type of seal on screwed trunnionSealing ring

Maritime classificationSee certificate

DesignPush-pull principle

Operating mediumCompressed air as per ISO 85...

Product weight1.4 g

Note on materialsRoHS-compliant

Material of tubing sealNBR

Type codeQSML

Nominal width0.8 mm

6 in stock

186268

Festo

push-in L-fitting QSML-G1/8-4 360° orientable, male thread with external hexagon. Size: Mini, Nomina...

SizeMini

Type of seal on screwed trunnionSealing ring

Maritime classificationSee certificate

DesignPush-pull principle

Operating mediumCompressed air as per ISO 85...

Product weight-

Note on materials-

Material of tubing seal-

Type codeQSML

Nominal width2.5 mm

49 in stock

153333

Festo

push-in L-fitting QSML-M5-4 360° orientable, male thread with external hexagon. Size: Mini, Nominal ...

SizeMini

Type of seal on screwed trunnionSealing ring

Maritime classificationSee certificate

DesignPush-pull principle

Operating mediumCompressed air as per ISO 85...

Product weight-

Note on materials-

Material of tubing seal-

Type codeQSML

Nominal width1.7 mm

About the manufacturer

Powermatic Associates is an authorized Festo distributor, proudly offering a wide array of Festo's innovative industrial automation products and solutions. Festo is a globally recognized leader in automation technology and pneumatic solutions, renowned for their commitment to quality, efficiency, and sustainability. With a vast portfolio ranging from actuators, valves, sensors, and connectors to e...

About the Product Category

Air fittings, also referred to as pneumatic fittings or connectors, are crucial components of pneumatic systems. They ensure safe and airtight connections between various pneumatic elements like air hoses, tubes, valves, and cylinders.

Recently viewed products

LMHCA573C

Novanta IMS

Novanta IMS LMHCA573C is a stepper motor characterized by its integration of a driver and a high-torque DC stepper motor within the high-torque stepper motors sub-range. It features an incremental magnetic encoder and a triple (3) motor stack with closed-loop hMTechnology. The connection is facilitated through a 4-pin M12 male connector, a 12-pin M12 male connector, and a 5-pin M12 male connector, supporting CANopen communication protocol. Designed for a supply voltage range of 12Vdc to 60Vdc, optimally at 24Vdc or 48Vdc, it mounts via a 57x57mm flange. The LMHCA573C offers a degree of protection rated at IP65, a moment of inertia at 0.37kg.cm^2, a stall torque of 294N.cm, and a resolution characterized by a 1.8° step angle.

0 in stock

ZBVB5

Schneider Electric

Schneider Electric ZBVB5 is a light unit designed as a light block with an integral LED. It features a degree of protection rated at IP20 and operates on a network frequency of 50/60 Hz. This unit is compatible with a supply voltage of 24 V, available in both AC and DC formats. The light emitted by the ZBVB5 is orange, and it is equipped with screw-clamp type terminals for secure connections.

1 in stock

LMHCA571C

Novanta IMS

Novanta IMS LMHCA571C is a stepper motor that falls under the high-torque stepper motors sub-range. It features an integrated driver and a high-torque DC stepper motor with an incremental magnetic encoder, utilizing a single motor stack and closed-loop hMTechnology for precise control. This motor offers a variety of connection types, including a 4-pin M12 male connector, a 12-pin M12 male connector, and a 5-pin M12 male connector, supporting CANopen communication protocol. It operates on a supply voltage range of 12Vdc to 60Vdc, with optimal performance at 24Vdc or 48Vdc. The LMHCA571C is designed for mounting with a 57x57mm flange and is rated with a degree of protection of IP65, making it suitable for environments where dust and water resistance is necessary. It has a moment of inertia of 0.14kg.cm^2 and can deliver a stall torque of 107N.cm. The resolution of this stepper motor is defined by a 1.8° step angle.

0 in stock

Q45BB6LPQ5

Banner

Q45 Series: Polarized Retro; Range: 0.15 - 6 m; Input: 10-30 V dc; Output: Bipolar: 1 NPN; 1 PNP; 4-pin M12 Integral QD

4 in stock

WKV 4.4T-12/S618/S1057/S1579

Turck

WKV 4.4T-12/S618/S1057/S1579 Turck - WKV 4.4T-12/S618/S1057/S1579

2 in stock

LMHCA573C

Novanta IMS

0 in stock

ZBVB5

Schneider Electric

1 in stock

LMHCA571C

Novanta IMS

0 in stock

LMHCA573C

Novanta IMS

0 in stock

Relevant products

153334

Verified stock: 10

push-in L-fitting QSML-1/8-4 360° orientable, male thread with external hexagon. Size: Mini, Nominal size: 2,5 mm, Type of seal on screw-in stud: coating, Assembly position: Any, Container size: 10

Festo

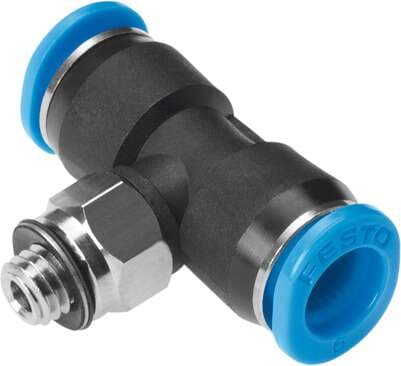

153351

Verified stock: 10

push-in T-fitting QSMT-M3-3 360° orientable, male thread with external hexagon. Size: Mini, Nominal size: 0,9 mm, Type of seal on screw-in stud: Sealing ring, Assembly position: Any, Container size: 10

Festo

153314

Verified stock: 3

push-in fitting QSM-M3-4-I male thread with internal hexagon socket. Size: Mini, Nominal size: 1,5 mm, Type of seal on screw-in stud: Sealing ring, Assembly position: Any, Container size: 10

Festo

153333

Verified stock: 49

push-in L-fitting QSML-M5-4 360° orientable, male thread with external hexagon. Size: Mini, Nominal size: 1,7 mm, Type of seal on screw-in stud: Sealing ring, Assembly position: Any, Container size: 10

Festo

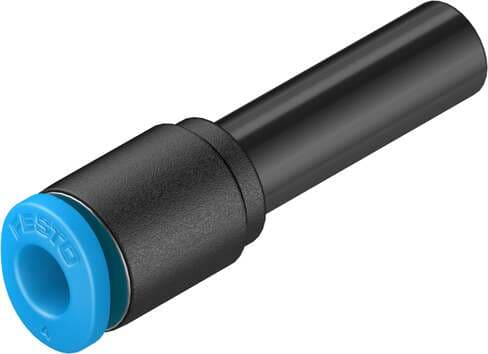

153329
