533243 Festo Pneumatic Fittings

533243 on Powermatic Associates
Festo

Part#:533243

Alt. Part#:QBL-3/8-3/8-U-M

Manufacturer:Festo

Category:Pneumatic Fittings

Product Lifecycle:Active

17 in stock

Apr 23, 2025

Product description

push-in L-fitting QBL-3/8-3/8-U-M 360° orientable, male thread with external hexagon. Size: Standard, Nominal size: 0,315 ", Type of seal on screw-in stud: coating, Operating pressure complete temperature range: -13,8 - 145 Psi, Maritime classification: s

Product Details

  • Nominal width
    8.001 mm
  • Operating medium
    Compressed air as per ISO 8573-1:2010 [7:-:-]
  • Ambient temperature
    0 °C ... 60 °C
  • Housing material
    PBT
  • Operating pressure for entire temperature range
    -0.951 bar ... 9.997 bar
  • Releasing ring material
    POM
  • Material of tube retaining claw
    High-alloy stainless steel
  • Size
    Standard
  • Corrosion resistance class (CRC)
    1 - Low corrosion stress
  • Note on materials
    RoHS-compliant
  • Material of threaded seal
    NBR
  • Maritime classification
    See certificate
  • Information on operating and pilot media
    Operation with oil lubrication possible
  • Releasing ring color
    Gray
  • Type code
    QBL
  • Type of seal on screwed trunnion
    Coating
  • Product weight
    34.303 g

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

533243 Related Documents

533243 DataSheet.pdf

Similar products from: Festo Pneumatic Fittings

153134 on Powermatic Associates

153134

Festo

push-in T-connector QST-6-4 reducing. Size: Standard, Nominal size: 2,3 mm, Assembly position: Any, Container size: 10, Design structure: Push/pull principle

8 in stock
2030 on Powermatic Associates

2030

Festo

quick connector CK-1/4-PK-6 Male thread with sealing ring, metal version. Nominal size: 4,9 mm, Type of seal on screw-in stud: Sealing ring, Assembly position: Any, Maritime classification: see certificate, Operating medium: (* Compressed air in accordanc

10 in stock
572319 on Powermatic Associates

572319

Festo

push-in fitting QB-1/8-5/16-I-U Size: Standard, Nominal size: 0,189 ", Type of seal on screw-in stud: coating, Assembly position: Any, Design structure: Push/pull principle

7 in stock
572311 on Powermatic Associates

572311

Festo

push-in fitting QBM-10-32-UNF-1/8-I-U Size: Mini, Nominal size: 0,094 ", Type of seal on screw-in stud: Sealing ring, Assembly position: Any, Design structure: Push/pull principle

3 in stock
567779 on Powermatic Associates

567779

Festo

push-in connector QB-3/8H-5/16-U male thread with external hexagon. Size: Standard, Nominal size: 0,256 ", Assembly position: Any, Design structure: Push/pull principle, Operating pressure complete temperature range: -13,8 - 145 Psi

3 in stock
564801 on Powermatic Associates

564801

Festo

push-in connector QB-5/16T-1/4-U reducing. Size: Standard, Nominal size: 0,197 ", Assembly position: Any, Design structure: Push/pull principle, Operating pressure complete temperature range: -13,8 - 145 Psi

8 in stock

Manufacturer warranty

533243 Festo

Get a quick Quote!

Request a quote, and we will send you price within minutes.

Stock:

17

Select Qty:

Average response time: 11 minutes

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty

Responsive Customer Support

Got Questions? We've Got Answers!

Need more details?

Feel free to chat with us

Compare 533243 with other Pneumatic Fittings products

Nominal width

Operating medium

Ambient temperature

Housing material

Operating pressure for en...

Releasing ring material

Material of tube retainin...

Size

Corrosion resistance clas...

Note on materials

Selected product

533243
17 in stock
533243
Festo

push-in L-fitting QBL-3/8-3/8-U-M 360° orientable, male thread with external hexagon. Size: Standard...

Nominal width8.001 mm

Operating mediumCompressed air as per ISO 85...

Ambient temperature0 °C ... 60 °C

Housing materialPBT

Operating pressure for entire temperature range-0.951 bar ... 9.997 bar

Releasing ring materialPOM

Material of tube retaining clawHigh-alloy stainless steel

SizeStandard

Corrosion resistance class (CRC)1 - Low corrosion stress

Note on materialsRoHS-compliant

562578
2 in stock

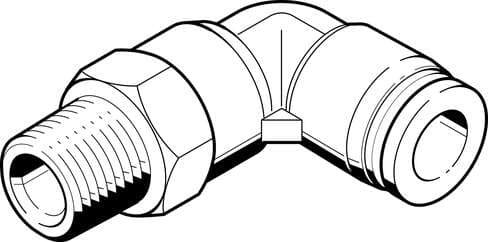

562578
