533210 Festo Pneumatic Fittings

533210 on Powermatic Associates
Festo

Part#:533210

Alt. Part#:QB-M5-5/32-U-M

Manufacturer:Festo

Category:Pneumatic Fittings

Product Lifecycle:Active

Only 2 left in stock. Order Now!

Apr 1, 2025

Product description

push-in fitting QB-M5-5/32-U-M male thread with external hexagon. Size: Standard, Nominal size: 0,098 ", Type of seal on screw-in stud: Sealing ring, Operating pressure complete temperature range: -13,8 - 145 Psi, Maritime classification: see certificate

Product Details

  • Maritime classification
    See certificate
  • Product weight
    7.002 g
  • Nominal width
    2.489 mm
  • Operating pressure for entire temperature range
    -0.951 bar ... 9.997 bar
  • Corrosion resistance class (CRC)
    1 - Low corrosion stress
  • Note on materials
    RoHS-compliant
  • Releasing ring color
    Gray
  • Releasing ring material
    POM
  • Size
    Standard
  • Nominal tightening torque
    0.5 Nm
  • Housing material
    PBT
  • Material of tube retaining claw
    High-alloy stainless steel
  • Type of seal on screwed trunnion
    Sealing ring
  • Information on operating and pilot media
    Operation with oil lubrication possible
  • Ambient temperature
    0 °C ... 60 °C
  • Material of threaded seal
    NBR
  • Type code
    QB
  • Operating medium
    Compressed air as per ISO 8573-1:2010 [7:-:-]
  • Tolerance for nominal tightening torque
    ± 10%

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

533210 Related Documents

533210 DataSheet.pdf

Similar products from: Festo Pneumatic Fittings

572319 on Powermatic Associates

572319

Festo

push-in fitting QB-1/8-5/16-I-U Size: Standard, Nominal size: 0,189 ", Type of seal on screw-in stud: coating, Assembly position: Any, Design structure: Push/pull principle

7 in stock
190651 on Powermatic Associates

190651

Festo

push-in fitting QSF-1/4-12-B female thread with external hexagon. Size: Standard, Nominal size: 11 mm, Type of seal on screw-in stud: coating, Assembly position: Any, Container size: 10

8 in stock
572311 on Powermatic Associates

572311

Festo

push-in fitting QBM-10-32-UNF-1/8-I-U Size: Mini, Nominal size: 0,094 ", Type of seal on screw-in stud: Sealing ring, Assembly position: Any, Design structure: Push/pull principle

3 in stock
533280 on Powermatic Associates

533280

Festo

push-in fitting QB-3/8-5/16-U male thread with external hexagon. Size: Standard, Nominal size: 0,252 ", Type of seal on screw-in stud: coating, Assembly position: Any, Design structure: Push/pull principle

6 in stock
533285 on Powermatic Associates

533285

Festo

push-in L-fitting QBML-10-32-UNF-1/8-U 360° orientable, male thread with external hexagon. Size: Standard, Nominal size: 0,098 ", Type of seal on screw-in stud: Sealing ring, Assembly position: Any, Design structure: Push/pull principle

4 in stock
153134 on Powermatic Associates

153134

Festo

push-in T-connector QST-6-4 reducing. Size: Standard, Nominal size: 2,3 mm, Assembly position: Any, Container size: 10, Design structure: Push/pull principle

8 in stock

Manufacturer warranty

533210 Festo

Get a quick Quote!

Request a quote, and we will send you price within minutes.

Stock:

2

Select Qty:

Average response time: 11 minutes

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty

Responsive Customer Support

Got Questions? We've Got Answers!

Need more details?

Feel free to chat with us

Compare 533210 with other Pneumatic Fittings products

Maritime classification

Product weight

Nominal width

Operating pressure for en...

Corrosion resistance clas...

Note on materials

Releasing ring color

Releasing ring material

Size

Nominal tightening torque

Selected product

533210
2 in stock
533210
Festo

push-in fitting QB-M5-5/32-U-M male thread with external hexagon. Size: Standard, Nominal size: 0,09...

Maritime classificationSee certificate

Product weight7.002 g

Nominal width2.489 mm

Operating pressure for entire temperature range-0.951 bar ... 9.997 bar

Corrosion resistance class (CRC)1 - Low corrosion stress

Note on materialsRoHS-compliant

Releasing ring colorGray

Releasing ring materialPOM

SizeStandard

Nominal tightening torque0.5 Nm

533212
5 in stock
533212
Festo

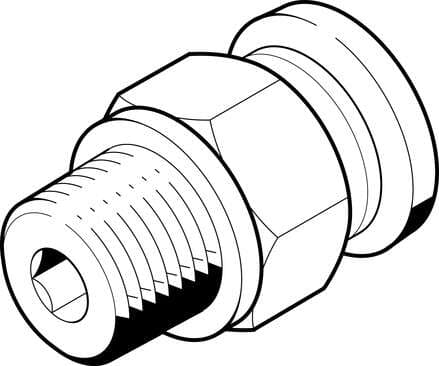

push-in fitting QB-M5-1/4-U-M male thread with external hexagon. Size: Standard, Nominal size: 0,098...

Maritime classificationSee certificate

Product weight-

Nominal width2.489 mm

Operating pressure for entire temperature range-0.951 bar ... 9.997 bar

Corrosion resistance class (CRC)1 - Low corrosion stress

Note on materials-

Releasing ring color-

Releasing ring material-

SizeStandard

Nominal tightening torque0.5 Nm

533231
19 in stock
533231
Festo

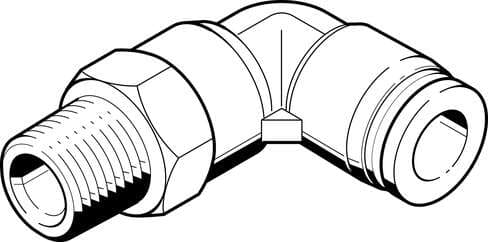

push-in L-fitting QBL-M5-1/4-U-M 360° orientable, male thread with external hexagon. Size: Standard,...
