3628 Festo Mechanical & Manual Valves

3628 on Powermatic Associates

Festo

Part#:3628

Manufacturer:Festo

Alt. Part#:L-3-M5

Product Lifecycle:Active

Get a quick Quote!

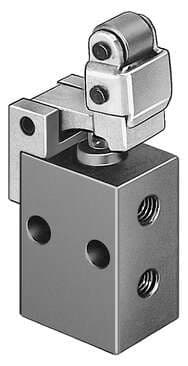

Roller lever valve L-3-M5 With idle return. Function unactuated, no through flow. Valve function: 3/2 closed, monostable, Type of actuation: mechanical, Standard nominal flow rate: 80 l/min, Operating pressure: -0,95 - 8 bar, Design structure: Poppet seat

About the manufacturer: Festo is one of the manufacturers that offers Mechanical & Manual Valves that you can order at Powermatic Associates site. Festo Corp. has been a top supplier of automation and intelligent automation solutions for more than four decades in the United States and eight decades globally. The company is committed to transforming the manufacturing sector and enhancing business efficiency.

Check out the 3628 Festo price in the box on the right side or send a quick quote.

Product Details

Pneumatic working port
M5
Design
Plate seat
Symbol
00991096
Actuation type
Mechanical
Operating medium
Compressed air as per ISO 8573-1:2010 [-:-:-]
Ambient temperature
-10 °C ... 60 °C
Pneumatic connection 2
M5
Valve function
3/2, closed, monostable
Operating pressure
-0.95 bar ... 8 bar
Type code
L
Product weight
43 g
Seals material
NBR
Standard nominal flow rate
80 l/min
Nominal width
2 mm
Type of control
Direct
Actuating force
16.5 N
Pneumatic connection 1
M5
Information on operating and pilot media
Operation with oil lubrication possible (required for further use)
Type of mounting
With through-hole
Housing material
Die-cast zinc

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

Related documents 3628 Specs

3628 3628 DataSheet.pdf
