3629 Festo Mechanical & Manual Valves

Name: 3629
Brand: Festo

Part#:3629

Alt. Part#:R-3-M5

Manufacturer:Festo

Category:Mechanical & Manual Valves

Product Lifecycle:Active

Product description

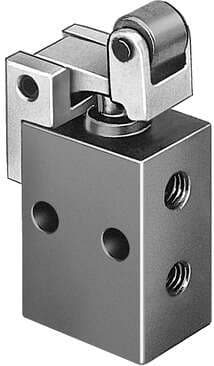

roller lever valve R-3-M5 Valve function: 3/2 closed, monostable, Type of actuation: mechanical, Standard nominal flow rate: 80 l/min, Operating pressure: -0,95 - 8 bar, Design structure: Poppet seat

Product Details

Pneumatic working port
M5
Symbol
00991097
Information on operating and pilot media
Operation with oil lubrication possible (required for further use)
Product weight
40 g
Pneumatic connection 1
M5
Standard nominal flow rate
80 l/min
Design
Plate seat
Explosion prevention and protection
Zone 1 (ATEX) Zone 22 (ATEX)
Actuating force
16.5 N
Housing material
Die-cast zinc
Nominal width
2 mm
Operating medium
Compressed air as per ISO 8573-1:2010 [-:-:-]
Type of mounting
With through-hole
Valve function
3/2, closed, monostable
Operating pressure
-0.95 bar ... 8 bar
Ambient temperature
-10 °C ... 60 °C
Seals material
NBR
Actuation type
Mechanical
Type code
R
Type of control
Direct

Pneumatic connection 2

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

3629 Related Documents

3629 DataSheet.pdf
