3626 Festo Pneumatic Components

3626 on Powermatic Associates
Festo

Part#:3626

Alt. Part#:V-3-M5

Manufacturer:Festo

Category:Pneumatic Components

Product Lifecycle:Active

Product description

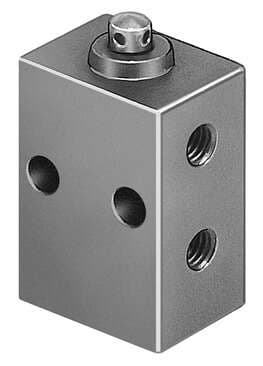

stem actuated valve V-3-M5 Normally closed. Valve function: 3/2 closed, monostable, Type of actuation: mechanical, Standard nominal flow rate: 80 l/min, Operating pressure: -0,95 - 8 bar, Design structure: Poppet seat

Product Details

  • Actuation type
    Mechanical
  • Operating pressure
    -0.95 bar ... 8 bar
  • Nominal width
    2 mm
  • Information on operating and pilot media
    Operation with oil lubrication possible (required for further use)
  • Housing material
    Die-cast zinc
  • Valve function
    3/2, closed, monostable
  • Pneumatic working port
    M5
  • Design
    Plate seat
  • Type of control
    Direct
  • Ambient temperature
    -10 °C ... 60 °C
  • Pneumatic connection 2
    M5
  • Explosion prevention and protection
    Zone 1 (ATEX) Zone 22 (ATEX)
  • Product weight
    25 g
  • Standard nominal flow rate
    80 l/min
  • Type code
    V
  • Symbol
    00991095
  • Actuating force
    23 N
  • Seals material
    NBR
  • Operating medium
    Compressed air as per ISO 8573-1:2010 [-:-:-]
  • Type of mounting
    With through-hole
  • Pneumatic connection 1
    M5

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

3626 Related Documents

3626 DataSheet.pdf
