188324 Festo Pneumatic Actuators

188324 on Powermatic Associates
Festo

Part#:188324

Alt. Part#:AEVC-100-10-I-P-A

Manufacturer:Festo

Category:Pneumatic Actuators

Product Lifecycle:Active

Product description

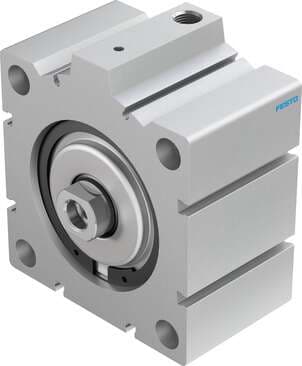

short-stroke cylinder AEVC-100-10-I-P-A For proximity sensing, piston-rod end with female thread. Stroke: 10 mm, Piston diameter: 100 mm, Spring return force, retracted: 140 N, Based on the standard: (* ISO 6431, * Hole pattern, * VDMA 24562), Cushioning:

Product Details

  • Type code
    AEVC
  • Mode of operation
    Single-acting Pushing
  • Operating medium
    Compressed air as per ISO 8573-1:2010 [7:4:4]
  • Corrosion resistance class (CRC)
    1 - Low corrosion stress
  • Type of mounting
    Optionally: With accessories
  • Note on materials
    Free of copper and PTFE
  • Piston diameter
    100 mm
  • Based on norm
    ISO 6431 VDMA 24562
  • Symbol
    00991729
  • Theoretical force at 6 bar, advancing
    4503 N
  • Pneumatic connection
    G1/4
  • Piston rod material
    High-alloy steel
  • Stroke
    10 mm
  • Mounting position
    Any
  • Information on operating and pilot media
    Operation with oil lubrication possible (required for further use)
  • Product weight
    2000 g
  • Cover material
    Wrought aluminum alloy Anodized
  • Position sensing
    For proximity sensor
  • Operating pressure
    1 bar ... 10 bar
  • Ambient temperature
    -20 °C ... 80 °C
  • Seals material
    TPE-U(PU)
  • Spring resetting force with piston rod in retracted position
    140 N
  • Cushioning
    Elastic cushioning rings/pads at both ends
  • Design
    Piston Piston rod
  • Moving mass
    546 g
  • Housing material
    Wrought aluminum alloy Anodized

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

188324 Related Documents

188324 DataSheet.pdf

Similar products from: Festo Pneumatic Actuators
