188347 Festo Pneumatic Actuators

Name: 188347
Brand: Festo

Part#:188347

Alt. Part#:ADVC-100-25-A-P

Manufacturer:Festo

Category:Pneumatic Actuators

Product Lifecycle:Active

Product description

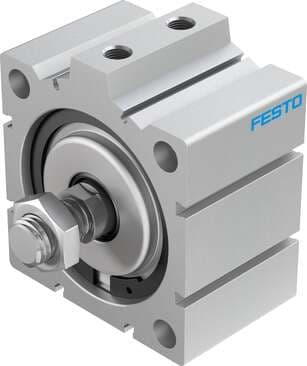

short-stroke cylinder ADVC-100-25-A-P No facility for sensing, piston-rod end with male thread. Stroke: 25 mm, Piston diameter: 100 mm, Based on the standard: (* ISO 6431, * Hole pattern, * VDMA 24562), Cushioning: P: Flexible cushioning rings/plates at b

Product Details

Symbol
00991227
Ambient temperature
-20 °C ... 80 °C
Pneumatic connection
G1/4
Cover material
Wrought aluminum alloy Anodized
Piston diameter
100 mm
Cushioning
Elastic cushioning rings/pads at both ends
Position sensing
None
Corrosion resistance class (CRC)
1 - Low corrosion stress
Type of mounting
Optionally: With accessories
Housing material
Wrought aluminum alloy Anodized
Type code
ADVC
Mode of operation
Double-acting
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Theoretical force at 6 bar, retracting
4418 N
Seals material
NBR TPE-U(PU)
Based on norm
ISO 6431 VDMA 24562
Design
Piston Piston rod
Operating pressure
1 bar ... 10 bar
Theoretical force at 6 bar, advancing
4712 N
Moving mass
759 g

Piston rod material

High-alloy steel

Stroke

25 mm

Mounting position

Any

Information on operating and pilot media

Operation with oil lubrication possible (required for further use)

Product weight

2400 g

Note on materials

Free of copper and PTFE

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
