174548 Festo Proximity Sensors

174548 on Powermatic Associates
Festo

Part#:174548

Alt. Part#:SIES-Q5B-NO-K-L

Manufacturer:Festo

Category:Proximity Sensors

Product Lifecycle:Active

Product description

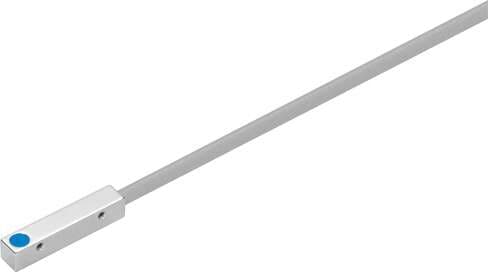

proximity sensor SIES-Q5B-NO-K-L Inductive, with cable, can be flush-mounted, normally-closed function, negative-switching. Conforms to standard: EN 60947-5-2, Authorisation: (* RCM Mark, * c UL us - Listed (OL)), CE mark (see declaration of conformity):

Product Details

  • Conforms to standard
    EN 60947-5-2
  • Note on materials
    Free of copper and PTFE
  • Repetition accuracy
    0.04 mm
  • Max. switching frequency DC
    3000 Hz
  • DC operating voltage range
    10 V ... 30 V
  • Electrical connection
    3-wire Cable
  • Type of mounting
    With internal thread
  • Degree of protection
    IP67
  • Type code
    SIES
  • Assured operating distance
    0.64 mm
  • Switching output
    NPN
  • Residual ripple
    10 %
  • Cable length
    2.5 m
  • Size
    5x5x25 mm
  • Housing material
    Brass Nickel-plated
  • Certification
    RCM compliance mark c UL us - Listed (OL)
  • Rated operating distance
    0.8 mm
  • Max. switching frequency
    3000 Hz
  • Short-circuit protection
    Pulsed
  • Reverse polarity protection
    for all electrical connections
  • Mounting type
    Flush
  • Electrical output
    NPN
  • CE marking (see declaration of conformity)
    As per EU EMC directive
  • Reduction factors
    Aluminum = 0.4 Steel St 37 = 1.0
  • Switching element function
    N/C contact
  • Voltage drop
    2 V
  • Material of cable sheath
    TPE-U(PUR)
  • Switching status indication
    LED yellow
  • Selection of sensor version
    Standard
  • Symbol
    00991643
  • Ambient temperature
    -25 °C ... 70 °C
  • Max. output current
    200 mA
  • Idle current
    ≤ 10 mA
  • Product weight
    22 g
  • Selection of additional sensor information
    Special design

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
