1564894 Festo Pneumatic Actuators

1564894 on Powermatic Associates
Festo

Part#:1564894

Alt. Part#:DSM-T-6-90-P

Manufacturer:Festo

Category:Pneumatic Actuators

Product Lifecycle:Active

Product description

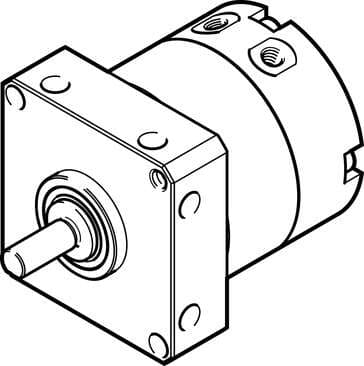

semi-rotary drive DSM-T-6-90-P Size: 6, Cushioning angle: 0,5 deg, Swivel angle: 0 - 90 deg, Cushioning: P: Flexible cushioning rings/plates at both ends, Assembly position: Any

Product Details

  • Swivel angle
    0 deg ... 90 deg
  • Position sensing
    None
  • Ambient temperature
    0 °C ... 60 °C
  • Type of mounting
    With internal thread
  • Seals material
    TPE-U(PU)
  • Size
    6
  • Cushioning
    Elastic cushioning rings/pads at both ends
  • Symbol
    00991265
  • Theoretical torque at 6 bar
    0.3 Nm
  • Pneumatic connection
    M3
  • Cushioning angle
    0.5 deg
  • Mounting position
    Any
  • Operating pressure
    4 bar ... 8 bar
  • Information on operating and pilot media
    Operation with oil lubrication possible (required for further use)
  • Product weight
    60 g
  • Housing material
    Aluminum Anodized
  • Type code
    DSM
  • Design
    Rotary vane
  • Operating medium
    Compressed air as per ISO 8573-1:2010 [7:4:4]
  • Note on materials
    Free of copper and PTFE RoHS-compliant
  • Max. swivel frequency at 6 bar
    3 Hz
  • Drive shaft material
    High-alloy stainless steel
  • Mode of operation
    Double-acting
  • Permissible mass moment of inertia
    6.5E-4 kgm²

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
