151687 Festo Electrical Connectors

151687 on Powermatic Associates
Festo

Part#:151687

Alt. Part#:MSSD-EB

Manufacturer:Festo

Category:Electrical Connectors

Product Lifecycle:Active

Product description

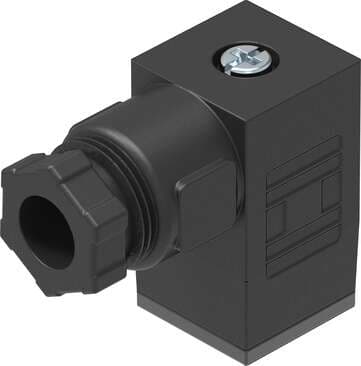

plug socket MSSD-EB For solenoid coils and valves, port pattern per DIN EN 175 301, type C. Mounting type: On solenoid valve with M2.5 central screw, Assembly position: Any, Product weight: 11 g, Electrical connection: (* 3-pin, * Plug socket, * Plug sock

Product Details

  • Electrical connection
    3-pin Rectangular design MSN2
  • Surge resistance
    4 kV
  • Ambient temperature
    -45 °C ... 90 °C
  • CE marking (see declaration of conformity)
    As per EU low voltage directive
  • Type code
    MSSD
  • Nominal operating voltage DC
    300 V
  • Connection cross section
    0.75 mm²
  • Housing material
    Polymer
  • Cable fitting
    Pg7
  • Cable diameter
    6 mm ... 8 mm
  • Degree of protection
    IP65 as per IEC 60529
  • Mounting position
    Any
  • Product weight
    11 g
  • Nominal operating voltage AC
    250 V
  • Approved cable diameter
    7.5 mm
  • Housing colour
    Black
  • Type of mounting
    On air solenoid valve with M2.5 central screw
  • Current rating
    6 A
  • Nominal conductor cross section
    ≤ 0.75 mm²
  • Contamination level
    3
  • Seals material
    NBR

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
