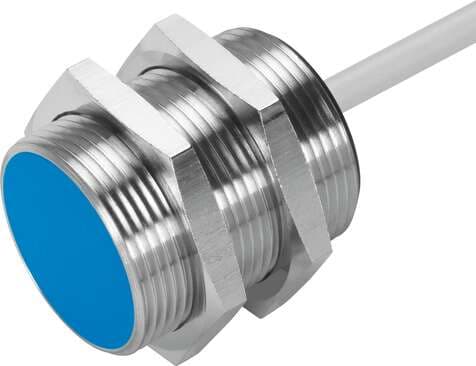

150438 Festo Proximity Sensors

Product Details

• Ambient temperature
  -25 °C ... 70 °C
• Hysteresis
  ≤ 1.1 mm
• DC operating voltage range
  10 V ... 30 V
• Electrical connection
  3-wire Cable
• Size
  M30x1.5
• Housing material
  Brass Chrome-plated
• Degree of protection
  IP67
• Selection of sensor version
  Standard
• Conforms to standard
  EN 60947-5-2
• Note on materials
  Free of copper and PTFE RoHS-compliant
• Max. switching frequency
  1200 Hz
• Switching output
  PNP
• Short-circuit protection
  Pulsed
• Idle current
  ≤ 10 mA
• Product weight
  155 g
• Surge resistance
  0.8 kV
• Type code
  SIEN
• CE marking (see declaration of conformity)
  As per EU EMC directive
• Reduction factors
  Aluminum = 0.45 Steel St 37 = 1.0
• Max. output current
  200 mA
Voltage drop
≤ 2 V
Reverse polarity protection
for all electrical connections
Tightening torque
40 Nm
Ambient temperature with flexible cable installation
-5 °C ... 70 °C
Electrical output
PNP
Symbol
00991613
Rated operating distance
10 mm
Repetition accuracy
0.5 mm
Switching element function
N/C contact
Residual ripple
+/- 20 %
Material of cable sheath
TPE-U(PUR)
Mounting type
Flush
Selection of additional sensor information
With standard switching distance
Certification
RCM compliance mark c UL us - Listed (OL)
Assured operating distance
8.1 mm
Cable length
2.5 m
Type of mounting
With lock nut
Switching status indication
LED yellow
Contamination level
3
