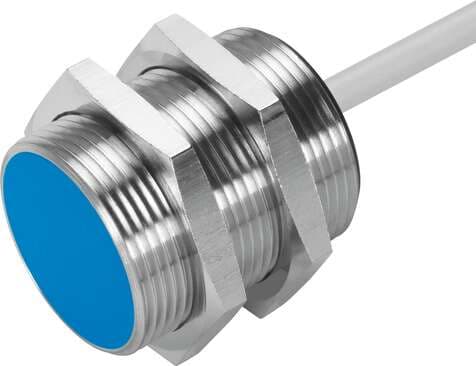

150434 Festo Proximity Sensors

Product Details

• Conforms to standard
  EN 60947-5-2
• Note on materials
  Free of copper and PTFE RoHS-compliant
• Reduction factors
  Aluminum = 0.45 Steel St 37 = 1.0
• Max. output current
  200 mA
• Cable length
  2.5 m
• Type code
  SIEN
• Certification
  RCM compliance mark c UL us - Listed (OL)
• Rated operating distance
  10 mm
• Hysteresis
  ≤ 1.1 mm
• Voltage drop
  ≤ 2 V
• DC operating voltage range
  10 V ... 30 V
• Material of cable sheath
  TPE-U(PUR)
• Tightening torque
  40 Nm
• Ambient temperature with flexible cable installation
  -5 °C ... 70 °C
• Symbol
  00991702
• Ambient temperature
  -25 °C ... 70 °C
• Switching output
  PNP
• Reverse polarity protection
  for all electrical connections
• Size
  M30x1.5
• Housing material
  Brass Chrome-plated
Surge resistance
0.8 kV
Selection of sensor version
Standard
CE marking (see declaration of conformity)
As per EU EMC directive
Assured operating distance
8.1 mm
Max. switching frequency
1200 Hz
Short-circuit protection
Pulsed
Residual ripple
+/- 20 %
Idle current
≤ 10 mA
Mounting type
Flush
Degree of protection
IP67
Electrical output
PNP
Repetition accuracy
0.5 mm
Switching element function
N/O contact
Electrical connection
3-wire Cable
Type of mounting
With lock nut
Product weight
155 g
Selection of additional sensor information
With standard switching distance
Switching status indication
LED yellow
Contamination level
3
