150385 Festo Proximity Sensors

150385 on Powermatic Associates
Festo

Part#:150385

Alt. Part#:SIEN-M8B-NS-S-L

Manufacturer:Festo

Category:Proximity Sensors

Product Lifecycle:Active

Product description

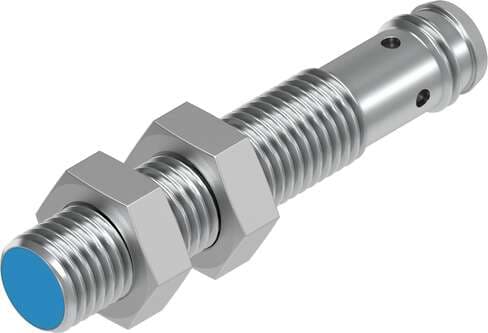

proximity sensor SIEN-M8B-NS-S-L Inductive, with standard switching distance. Conforms to standard: EN 60947-5-2, Authorisation: (* RCM Mark, * c UL us - Listed (OL)), CE mark (see declaration of conformity): to EU directive for EMC, Materials note: (* Fr

Product Details

  • CE marking (see declaration of conformity)
    As per EU EMC directive
  • Assured operating distance
    1.21 mm
  • Hysteresis
    ≤ 0.07 mm
  • Max. switching frequency
    5000 Hz
  • Mounting type
    Flush
  • Electrical output
    NPN
  • Symbol
    00991703
  • Ambient temperature
    -25 °C ... 70 °C
  • Switching element function
    N/O contact
  • Voltage drop
    ≤ 2 V
  • DC operating voltage range
    10 V ... 30 V
  • Housing material
    Brass Chrome-plated
  • Selection of sensor version
    Standard
  • Type code
    SIEN
  • Certification
    RCM compliance mark c UL us - Listed (OL)
  • Reduction factors
    Aluminum = 0.25 Steel St 37 = 1.0
  • Switching output
    NPN
  • Short-circuit protection
    Pulsed
  • Idle current
    ≤ 10 mA
  • Electrical connection
    3-pin Plug
  • Ambient temperature with flexible cable installation
    -5 °C ... 70 °C
  • Conforms to standard
    EN 60947-5-2
  • Note on materials
    Free of copper and PTFE RoHS-compliant
  • Max. output current
    200 mA
  • Residual ripple
    ± 10%
  • Size
    M8x1
  • Product weight
    18 g
  • Selection of additional sensor information
    With standard switching distance
  • Degree of protection
    IP65 IP67
  • Rated operating distance
    1.5 mm
  • Repetition accuracy under constant conditions
    0.07 mm
  • Inductive protective circuit
    Installed
  • Reverse polarity protection
    for all electrical connections
  • Type of mounting
    With lock nut
  • Switching status indication
    LED yellow
  • Corrosion resistance class (CRC)
    2 - Moderate corrosion stress

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
