150363 Festo Proximity Sensors

150363 on Powermatic Associates
Festo

Part#:150363

Alt. Part#:SIEN-4B-PS-S-L

Manufacturer:Festo

Category:Proximity Sensors

Product Lifecycle:Active

Product description

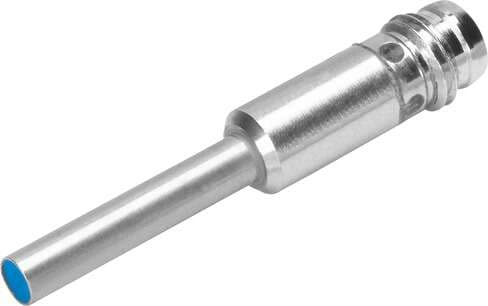

proximity sensor SIEN-4B-PS-S-L Inductive, with standard switching distance. Conforms to standard: EN 60947-5-2, Authorisation: (* RCM Mark, * c UL us - Listed (OL)), CE mark (see declaration of conformity): to EU directive for EMC, Materials note: Free o

Product Details

  • Symbol
    00991701
  • Type code
    SIEN
  • CE marking (see declaration of conformity)
    As per EU EMC directive
  • Repetition accuracy
    0.04 mm
  • Voltage drop
    2 V
  • Size
    4 mm
  • Housing material
    High-alloy stainless steel
  • Selection of additional sensor information
    With standard switching distance
  • Assured operating distance
    0.64 mm
  • Switching element function
    N/O contact
  • Max. output current
    200 mA
  • Residual ripple
    10 %
  • Product weight
    9 g
  • Switching status indication
    LED yellow
  • Note on materials
    Free of copper and PTFE
  • Max. switching frequency DC
    3000 Hz
  • DC operating voltage range
    10 V ... 30 V
  • Electrical connection
    3-pin Plug
  • Electrical output
    PNP
  • Certification
    RCM compliance mark c UL us - Listed (OL)
  • Rated operating distance
    0.8 mm
  • Switching output
    PNP
  • Max. switching frequency
    3000 Hz
  • Idle current
    ≤ 10 mA
  • Type of mounting
    Clamped
  • Degree of protection
    IP67
  • Selection of sensor version
    Standard
  • Conforms to standard
    EN 60947-5-2
  • Ambient temperature
    -25 °C ... 70 °C
  • Reduction factors
    Aluminum = 0.4 Steel St 37 = 1.0
  • Short-circuit protection
    Pulsed
  • Reverse polarity protection
    for all electrical connections
  • Mounting type
    Flush

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

150363 Related Documents

150363 DataSheet.pdf
