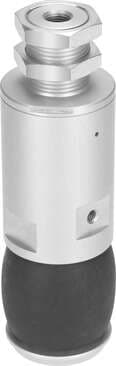

1320833 Festo Grippers

Product Details

• Min. diameter to be gripped
  13 mm
• Operating pressure
  5 bar ... 8 bar
• Max. diameter to be gripped
  17 mm
• Guide
  Basic guide
• Size
  12
• Type code
  DHEB
• Resetting pressure
  < 1 bar
• Operating medium
  Compressed air as per ISO 8573-1:2010 [7:4:4]
• Note on materials
  Contains paint-wetting impairment substances RoHS-compliant
• Stroke of bellows
  5.5 mm
• Mode of operation
  Single-acting Closed
• Position sensing
  None
• Information on operating and pilot media
  Operation with oil lubrication possible (required for further use)
• Pneumatic connection
  M3
• Type of mounting
  Optionally: With lock nut
• Mounting position
  Any
• Design
  Contracting diaphragm Positively driven motion sequence
• Max. operating frequency of pneumatic gripper
  ≤ 4 Hz
• Corrosion resistance class (CRC)
  2 - Moderate corrosion stress
• Min. closing time at 6 bar
  40 ms
Ambient temperature
5 °C ... 60 °C
Average replacement interval for the bellows
0.5 MioCyc
Housing material
Aluminum Anodized
Min. opening time at 6 bar
20 ms
Product weight
18 g
Guide value for payload
0.12 kg
Bellows material
EPDM
