1320831 Festo Grippers

1320831 on Powermatic Associates
Festo

Part#:1320831

Manufacturer:Festo

Category:Grippers

Alt. Part#:DHEB-8-E-U-E-P

Product Lifecycle:Active

Get a quick Quote!

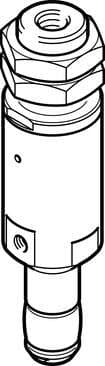

bellows gripper DHEB-8-E-U-E-P Size: 8, Stroke of the bellows: 3,5 mm, Min. diameter to be gripped: 8 mm, Max. diameter to be gripped: 11 mm, Assembly position: Any

About the manufacturer: Festo is one of the manufacturers that offers Grippers that you can order at Powermatic Associates site. Festo Corp. has been a top supplier of automation and intelligent automation solutions for more than four decades in the United States and eight decades globally. The company is committed to transforming the manufacturing sector and enhancing business efficiency.

Check out the 1320831 Festo price in the box on the right side or send a quick quote.

Product Details

  • Max. diameter to be gripped
    11 mm
  • Position sensing
    None
  • Min. closing time at 6 bar
    30 ms
  • Product weight
    16 g
  • Bellows material
    EPDM
  • Mode of operation
    Single-acting Closed
  • Max. operating frequency of pneumatic gripper
    ≤ 4 Hz
  • Operating medium
    Compressed air as per ISO 8573-1:2010 [7:4:4]
  • Corrosion resistance class (CRC)
    2 - Moderate corrosion stress
  • Stroke of bellows
    3.5 mm
  • Mounting position
    Any
  • Operating pressure
    5 bar ... 8 bar
  • Ambient temperature
    5 °C ... 60 °C
  • Guide value for payload
    0.08 kg
  • Housing material
    Aluminum Anodized
  • Min. diameter to be gripped
    8 mm
  • Guide
    Basic guide
  • Min. opening time at 6 bar
    10 ms
  • Average replacement interval for the bellows
    0.5 MioCyc
  • Pneumatic connection
    M3
  • Size
    8
  • Type code
    DHEB
  • Design
    Contracting diaphragm Positively driven motion sequence
  • Resetting pressure
    < 1 bar
  • Information on operating and pilot media
    Operation with oil lubrication possible (required for further use)
  • Type of mounting
    Optionally: With lock nut
  • Note on materials
    Contains paint-wetting impairment substances RoHS-compliant

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

Related documents 1320831 Specs

1320831 1320831 DataSheet.pdf
