1320830 Festo Grippers

1320830 on Powermatic Associates
Festo

Part#:1320830

Manufacturer:Festo

Alt. Part#:DHEB-63-E-U-S-P

Product Lifecycle:Active

Get a quick Quote!

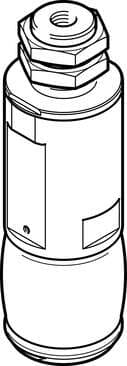

bellows gripper DHEB-63-E-U-S-P Size: 63, Stroke of the bellows: 25 mm, Min. diameter to be gripped: 66 mm, Max. diameter to be gripped: 85 mm, Assembly position: Any

About the manufacturer: Festo is one of the manufacturers that offers Grippers that you can order at Powermatic Associates site. Festo Corp. has been a top supplier of automation and intelligent automation solutions for more than four decades in the United States and eight decades globally. The company is committed to transforming the manufacturing sector and enhancing business efficiency.

Check out the 1320830 Festo price in the box on the right side or send a quick quote.

Product Details

  • Stroke of bellows
    25 mm
  • Design
    Contracting diaphragm Positively driven motion sequence
  • Guide
    Basic guide
  • Operating medium
    Compressed air as per ISO 8573-1:2010 [7:4:4]
  • Corrosion resistance class (CRC)
    2 - Moderate corrosion stress
  • Bellows material
    VMQ (silicone)
  • Housing material
    Aluminum Anodized
  • Size
    63
  • Type code
    DHEB
  • Position sensing
    For proximity sensor
  • Resetting pressure
    < 1 bar
  • Information on operating and pilot media
    Operation with oil lubrication possible (required for further use)
  • For use in the food industry
    See supplementary material information
  • Type of mounting
    Optionally: With lock nut
  • Min. diameter to be gripped
    66 mm
  • Mode of operation
    Single-acting Closed
  • Operating pressure
    4 bar ... 8 bar
  • Max. operating frequency of pneumatic gripper
    ≤ 4 Hz
  • Ambient temperature
    5 °C ... 60 °C
  • Guide value for payload
    5.1 kg
  • Product weight
    785 g
  • Note on materials
    Contains paint-wetting impairment substances RoHS-compliant
  • Max. diameter to be gripped
    85 mm
  • Mounting position
    Any
  • Min. opening time at 6 bar
    40 ms
  • Min. closing time at 6 bar
    100 ms
  • Average replacement interval for the bellows
    1 MioCyc
  • Pneumatic connection
    G1/8

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

Related documents 1320830 Specs

1320830 1320830 DataSheet.pdf

Manufacturer warranty
