1320824 Festo Grippers

Name: 1320824
Brand: Festo

Part#:1320824

Manufacturer:Festo

Category:Grippers

Alt. Part#:DHEB-18-E-U-S-P

Product Lifecycle:Active

Get a quick Quote!

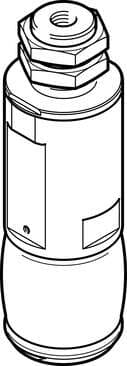

bellows gripper DHEB-18-E-U-S-P Size: 18, Stroke of the bellows: 7,5 mm, Min. diameter to be gripped: 19,5 mm, Max. diameter to be gripped: 25 mm, Assembly position: Any

About the manufacturer: Festo is one of the manufacturers that offers Grippers that you can order at Powermatic Associates site. Festo Corp. has been a top supplier of automation and intelligent automation solutions for more than four decades in the United States and eight decades globally. The company is committed to transforming the manufacturing sector and enhancing business efficiency.

Check out the 1320824 Festo price in the box on the right side or send a quick quote.

Product Details

Max. diameter to be gripped
25 mm
Resetting pressure
< 1 bar
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Pneumatic connection
M5
Size
18
Mounting position
Any
Position sensing
None
Min. opening time at 6 bar
20 ms
Corrosion resistance class (CRC)
2 - Moderate corrosion stress
Product weight
35 g
Housing material
Aluminum Anodized
Guide
Basic guide
Operating pressure
5 bar ... 8 bar
Ambient temperature
5 °C ... 60 °C
Average replacement interval for the bellows
1 MioCyc
Min. diameter to be gripped
19.5 mm
Mode of operation
Single-acting Closed
Type code
DHEB
Max. operating frequency of pneumatic gripper
≤ 4 Hz
Information on operating and pilot media
Operation with oil lubrication possible (required for further use)

Guide value for payload

0.21 kg

Bellows material

VMQ (silicone)

Stroke of bellows

7.5 mm

Design

Contracting diaphragm Positively driven motion sequence

Min. closing time at 6 bar

50 ms

For use in the food industry

See supplementary material information

Type of mounting

Optionally: With lock nut

Note on materials

Contains paint-wetting impairment substances RoHS-compliant

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
