1320818 Festo Grippers
Product Details
- Max. diameter to be gripped 68 mm
- Design Contracting diaphragm Positively driven motion sequence
- Min. opening time at 6 bar 30 ms
- Guide value for payload 2.5 kg
- Note on materials Contains paint-wetting impairment substances RoHS-compliant
- Min. diameter to be gripped 54 mm
- Mode of operation Single-acting Closed
- Guide Basic guide
- Stroke of bellows 18 mm
- Position sensing For proximity sensor
- Resetting pressure < 1 bar
- Operating medium Compressed air as per ISO 8573-1:2010 [7:4:4]
- Mounting position Any
- Operating pressure 4 bar ... 8 bar
- Size 51
- Type code DHEB
- Max. operating frequency of pneumatic gripper ≤ 4 Hz
- Corrosion resistance class (CRC) 2 - Moderate corrosion stress
- Type of mounting Optionally: With lock nut
- Information on operating and pilot media Operation with oil lubrication possible (required for further use)
- Average replacement interval for the bellows 0.5 MioCyc
- Ambient temperature 5 °C ... 60 °C
- Housing material Aluminum Anodized
- Min. closing time at 6 bar 70 ms
- Pneumatic connection G1/8
- Product weight 500 g
- Bellows material EPDM
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
1320818 Related Documents
Similar products from: Festo Grippers
Manufacturer warranty
1320818 Festo
Get a quick Quote!
Request a quote, and we will send you price and availability within minutes.
Select Qty:
Average response time: 11 minutes
Worldwide Shipping and Delivery
Secure Payment Processing
Warranty
Responsive Customer Support
Got Questions? We've Got Answers!
Need more details?
Feel free to chat with us
Compare 1320818 with other Grippers products
Max. diameter to be gripp...
Design
Min. opening time at 6 ba...
Guide value for payload
Note on materials
Min. diameter to be gripp...
Mode of operation
Guide
Stroke of bellows
Position sensing
Selected product
1320818
Festo
bellows gripper DHEB-51-E-U-E-L Size: 51, Stroke of the bellows: 18 mm, Min. diameter to be gripped:...
Max. diameter to be gripped68 mm
DesignContracting diaphragm Positi...
Min. opening time at 6 bar30 ms
Guide value for payload2.5 kg
Note on materialsContains paint-wetting impai...
Min. diameter to be gripped54 mm
Mode of operationSingle-acting Closed
GuideBasic guide
Stroke of bellows18 mm
Position sensingFor proximity sensor
540860
Festo
three-point gripper HGDT-25-A-G1 Sturdy, can be used as internal and external gripper, for position ...
Max. diameter to be gripped-
DesignInclined plane Positively dr...
Min. opening time at 6 bar-
Guide value for payload-
Note on materials-
Min. diameter to be gripped-
Mode of operationDouble-acting
Guide-
Stroke of bellows-
Position sensingFor proximity sensor
540869
Festo
three-point gripper HGDT-50-A-G1 Sturdy, can be used as internal and external gripper, for position ...
Max. diameter to be gripped-
DesignInclined plane Positively dr...
Min. opening time at 6 bar-
Guide value for payload-
Note on materials-
Min. diameter to be gripped-
Mode of operationDouble-acting
Guide-
Stroke of bellows-
Position sensingFor proximity sensor
About the manufacturer
Powermatic Associates is an authorized Festo distributor, proudly offering a wide array of Festo's innovative industrial automation products and solutions. Festo is a globally recognized leader in automation technology and pneumatic solutions, renowned for their commitment to quality, efficiency, and sustainability. With a vast portfolio ranging from actuators, valves, sensors, and connectors to e...
Recently viewed products
Relevant products
FAQ
Out if stock but available for backorder.

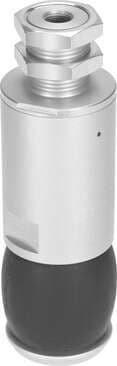

bellows gripper DHEB-51-E-U-E-L Size: 51, Stroke of the bellows: 18 mm, Min. diameter to be gripped: 54 mm, Max. diameter to be gripped: 68 mm, Assembly position: Any
