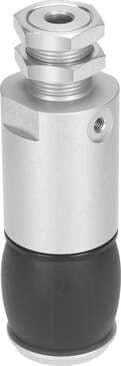

1320795 Festo Grippers
Product Details
- Max. diameter to be gripped 54 mm
- Min. diameter to be gripped 42 mm
- Mode of operation Single-acting Closed
- Position sensing For proximity sensor
- Max. operating frequency of pneumatic gripper ≤ 4 Hz
- Operating medium Compressed air as per ISO 8573-1:2010 [7:4:4]
- Average replacement interval for the bellows 0.5 MioCyc
- Note on materials Contains paint-wetting impairment substances RoHS-compliant
- Size 41
- Guide Basic guide
- Min. opening time at 6 bar 30 ms
- Ambient temperature 5 °C ... 60 °C
- Product weight 280 g
- Type of mounting Optionally: With lock nut
- Type code DHEB
- Min. closing time at 6 bar 70 ms
- Pneumatic connection M5
- Stroke of bellows 15.5 mm
- Mounting position Any
- Operating pressure 4 bar ... 8 bar
- Corrosion resistance class (CRC) 2 - Moderate corrosion stress
- Housing material Aluminum Anodized
- Design Contracting diaphragm Positively driven motion sequence
- Resetting pressure < 1 bar
- Information on operating and pilot media Operation with oil lubrication possible (required for further use)
- Guide value for payload 1.2 kg
- Bellows material EPDM
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
