1320790 Festo Grippers

Name: 1320790
Brand: Festo

Part#:1320790

Manufacturer:Festo

Alt. Part#:DHEB-14-E-D-E-P

Product Lifecycle:Active

Get a quick Quote!

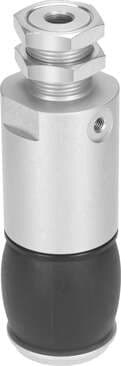

bellows gripper DHEB-14-E-D-E-P Size: 14, Stroke of the bellows: 7 mm, Min. diameter to be gripped: 15 mm, Max. diameter to be gripped: 19,5 mm, Assembly position: Any

About the manufacturer: Festo is one of the manufacturers that offers Grippers that you can order at Powermatic Associates site. Festo Corp. has been a top supplier of automation and intelligent automation solutions for more than four decades in the United States and eight decades globally. The company is committed to transforming the manufacturing sector and enhancing business efficiency.

Check out the 1320790 Festo price in the box on the right side or send a quick quote.

Product Details

Size
14
Type code
DHEB
Guide
Basic guide
Stroke of bellows
7 mm
Mounting position
Any
Resetting pressure
< 1 bar
Corrosion resistance class (CRC)
2 - Moderate corrosion stress
Average replacement interval for the bellows
0.5 MioCyc
Min. diameter to be gripped
15 mm
Design
Contracting diaphragm Positively driven motion sequence
Max. operating frequency of pneumatic gripper
≤ 4 Hz
Ambient temperature
5 °C ... 60 °C
Pneumatic connection
M3
Max. diameter to be gripped
19.5 mm
Operating pressure
5 bar ... 8 bar
Min. closing time at 6 bar
40 ms
Guide value for payload
0.15 kg
Bellows material
EPDM
Position sensing
None
Mode of operation
Single-acting Closed

Information on operating and pilot media

Operation with oil lubrication possible (required for further use)

Product weight

17 g

Min. opening time at 6 bar

20 ms

Operating medium

Compressed air as per ISO 8573-1:2010 [7:4:4]

Type of mounting

Optionally: With lock nut

Housing material

Aluminum Anodized

Note on materials

Contains paint-wetting impairment substances RoHS-compliant

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
