1320784 Festo Grippers

Name: 1320784
Brand: Festo

Part#:1320784

Manufacturer:Festo

Alt. Part#:DHEB-41-E-D-S-P

Product Lifecycle:Active

Get a quick Quote!

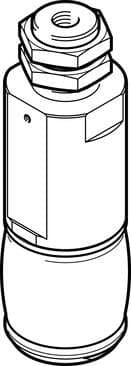

bellows gripper DHEB-41-E-D-S-P Size: 41, Stroke of the bellows: 15,5 mm, Min. diameter to be gripped: 42 mm, Max. diameter to be gripped: 54 mm, Assembly position: Any

About the manufacturer: Festo is one of the manufacturers that offers Grippers that you can order at Powermatic Associates site. Festo Corp. has been a top supplier of automation and intelligent automation solutions for more than four decades in the United States and eight decades globally. The company is committed to transforming the manufacturing sector and enhancing business efficiency.

Check out the 1320784 Festo price in the box on the right side or send a quick quote.

Product Details

Size
41
Mounting position
Any
Operating pressure
4 bar ... 8 bar
Min. opening time at 6 bar
30 ms
Max. diameter to be gripped
54 mm
Position sensing
For proximity sensor
Design
Contracting diaphragm Positively driven motion sequence
For use in the food industry
See supplementary material information
Pneumatic connection
M5
Bellows material
VMQ (silicone)
Min. diameter to be gripped
42 mm
Type code
DHEB
Resetting pressure
< 1 bar
Information on operating and pilot media
Operation with oil lubrication possible (required for further use)
Note on materials
Contains paint-wetting impairment substances RoHS-compliant
Stroke of bellows
15.5 mm
Mode of operation
Single-acting Closed
Max. operating frequency of pneumatic gripper
≤ 4 Hz
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Ambient temperature
5 °C ... 60 °C

Housing material

Aluminum Anodized

Guide

Basic guide

Corrosion resistance class (CRC)

2 - Moderate corrosion stress

Average replacement interval for the bellows

1 MioCyc

Product weight

280 g

Min. closing time at 6 bar

70 ms

Guide value for payload

1.2 kg

Type of mounting

Optionally: With lock nut

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
