1320769 Festo Grippers

1320769 on Powermatic Associates
Festo

Part#:1320769

Manufacturer:Festo

Alt. Part#:DHEB-18-E-D-E-L

Product Lifecycle:Active

Get a quick Quote!

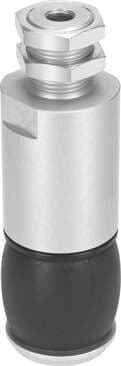

bellows gripper DHEB-18-E-D-E-L Size: 18, Stroke of the bellows: 7,5 mm, Min. diameter to be gripped: 19,5 mm, Max. diameter to be gripped: 25 mm, Assembly position: Any

About the manufacturer: Festo is one of the manufacturers that offers Grippers that you can order at Powermatic Associates site. Festo Corp. has been a top supplier of automation and intelligent automation solutions for more than four decades in the United States and eight decades globally. The company is committed to transforming the manufacturing sector and enhancing business efficiency.

Check out the 1320769 Festo price in the box on the right side or send a quick quote.

Product Details

  • Min. diameter to be gripped
    19.5 mm
  • Stroke of bellows
    7.5 mm
  • Guide
    Basic guide
  • Operating pressure
    5 bar ... 8 bar
  • Min. opening time at 6 bar
    20 ms
  • Bellows material
    EPDM
  • Max. diameter to be gripped
    25 mm
  • Position sensing
    None
  • Mode of operation
    Single-acting Closed
  • Information on operating and pilot media
    Operation with oil lubrication possible (required for further use)
  • Average replacement interval for the bellows
    0.5 MioCyc
  • Note on materials
    Contains paint-wetting impairment substances RoHS-compliant
  • Max. operating frequency of pneumatic gripper
    ≤ 4 Hz
  • Corrosion resistance class (CRC)
    2 - Moderate corrosion stress
  • Product weight
    28 g
  • Housing material
    Aluminum Anodized
  • Size
    18
  • Type code
    DHEB
  • Resetting pressure
    < 1 bar
  • Operating medium
    Compressed air as per ISO 8573-1:2010 [7:4:4]
  • Ambient temperature
    5 °C ... 60 °C
  • Pneumatic connection
    M5
  • Type of mounting
    Optionally: With lock nut
  • Mounting position
    Any
  • Design
    Contracting diaphragm Positively driven motion sequence
  • Min. closing time at 6 bar
    50 ms
  • Guide value for payload
    0.21 kg

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

Related documents 1320769 Specs

1320769 1320769 DataSheet.pdf
