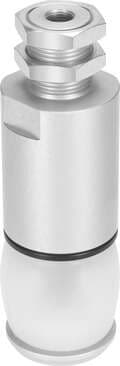

1320762 Festo Grippers

Product Details

• Max. diameter to be gripped
  54 mm
• Design
  Contracting diaphragm Positively driven motion sequence
• Resetting pressure
  < 1 bar
• Min. closing time at 6 bar
  70 ms
• For use in the food industry
  See supplementary material information
• Type of mounting
  Optionally: With lock nut
• Stroke of bellows
  15.5 mm
• Mode of operation
  Single-acting Closed
• Operating pressure
  4 bar ... 8 bar
• Position sensing
  For proximity sensor
• Information on operating and pilot media
  Operation with oil lubrication possible (required for further use)
• Average replacement interval for the bellows
  1 MioCyc
• Bellows material
  VMQ (silicone)
• Guide
  Basic guide
• Min. diameter to be gripped
  42 mm
• Mounting position
  Any
• Size
  41
• Type code
  DHEB
• Max. operating frequency of pneumatic gripper
  ≤ 4 Hz
• Corrosion resistance class (CRC)
  2 - Moderate corrosion stress
Guide value for payload
1.2 kg
Note on materials
Contains paint-wetting impairment substances RoHS-compliant
Min. opening time at 6 bar
30 ms
Ambient temperature
5 °C ... 60 °C
Pneumatic connection
G1/8
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Product weight
280 g
Housing material
Aluminum Anodized
