Powermatic Associates Logo

WLC90WL8RPWM Banner Electronic Components

WLC90WL8RPWM on Powermatic Associates
Banner

Part#:WLC90WL8RPWM

Manufacturer:Banner

Category:Electronic Components

Product Lifecycle:Active

Product description

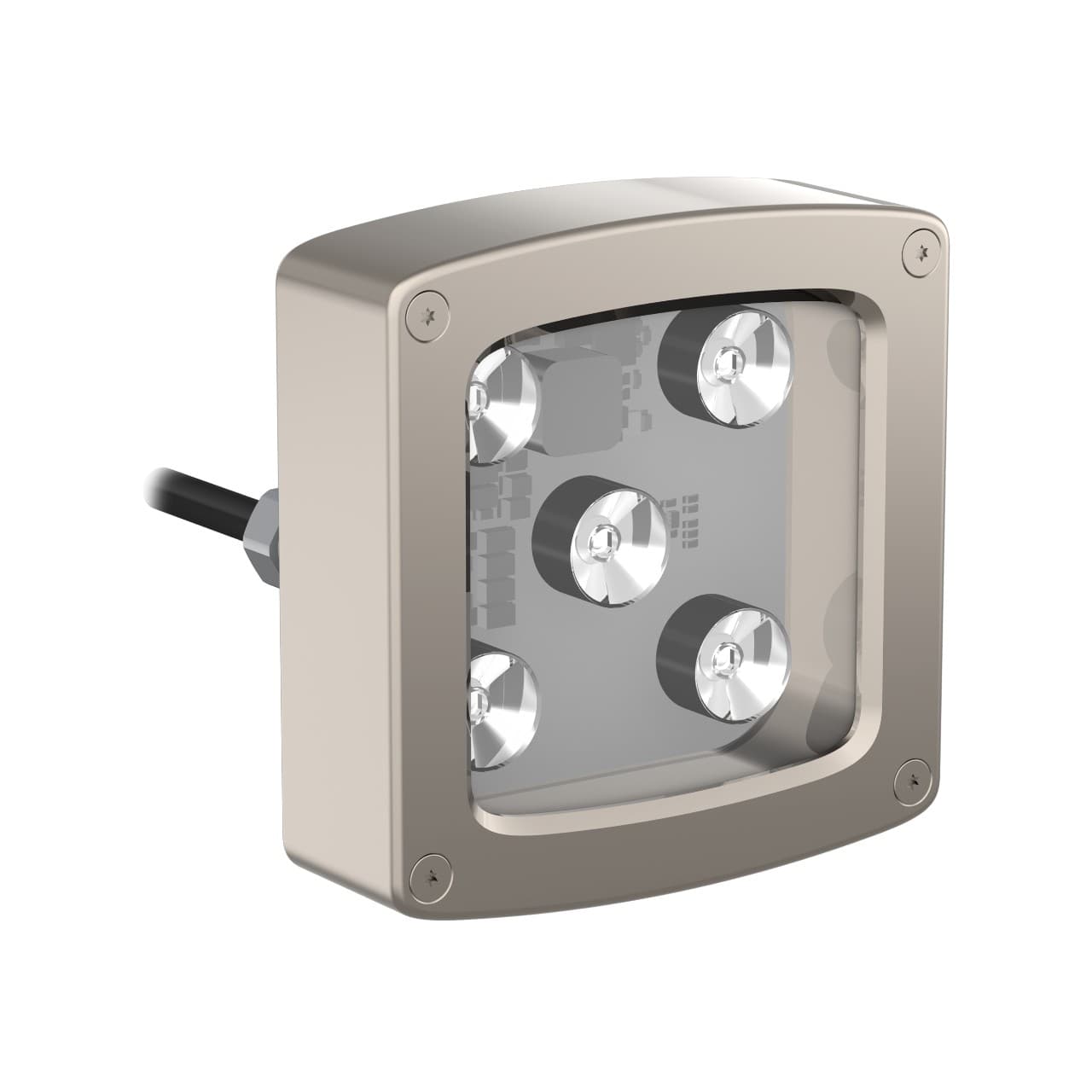

WLC90 Work Light; Dimensions: 90X90 mm; PWM Dimming, Voltage: 12-30 V dc; Environmental Rating: IP68g, IP69K, Color: White; 8 Deg Lens; Window: Polycarbonate, Euro Cable; Rear exit

Product Details

  • Pro-Editor Compatible (Discrete)
    No
  • Wireless
    No
  • Feature: Audible
    No
  • Feature: Quick Disconnect
    No
  • Feature: Chemical Resistant
    Yes
  • IO Link
    No
  • Modbus RTU
    No
  • Feature: Hazardous Area
    No
  • Primary Window Material
    Polycarbonate Clear
  • Storage Temp (°C)
    -40 to 70
  • Feature: Washdown Rated
    Yes
  • Lens Focusing Angle (°)/Field of View
    8
  • Min Op. Temperature (°C)
    -40
  • Max Op. Temperature (°C)
    70
  • Physical Dimensions (LxWxH or DxH mm)
    91.0 x 89.0 x 42.9
  • Environmental Rating
    IP67; IP68; IP68g; IP69
  • Illuminated Length (LxWxH mm)
    65.0
  • Animation Option 1
    Solid On
  • Connection
    Cable
  • Color 1 - Wavelength/Color Temp/Coordinates
    6500K (Cool)
  • Supply Voltage
    12-30 V dc
  • Color Technology
    Standard LED
  • Number of Input Pins/Conductors
    4
  • Dimming Option
    PWM
  • Lumens Color 1
    700
  • Color Option 1
    White
  • Illumination
    Yes
  • Product Size (mm)
    90
  • Number of Colors / Segments
    1
  • Color Input Control
    Individual (One wire/color, same number of colors as input wires)
  • Mounting Thread
    No Thread
  • Primary Housing Material
    Aluminum
  • Power Source
    DC
  • Housing Style
    Rectangular
  • Power
    DC

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

WLC90WL8RPWM Related Documents

WLC90 Heavy Duty LED Lights PWM Dimmable -- Datasheet-1630953444952.pdf
