WLC90WGL15RQ Banner Light Bars

WLC90WGL15RQ on Powermatic Associates
Banner

Part#:WLC90WGL15RQ

Alt. Part#:86540

Manufacturer:Banner

Category:Light Bars

Product Lifecycle:Active

Product description

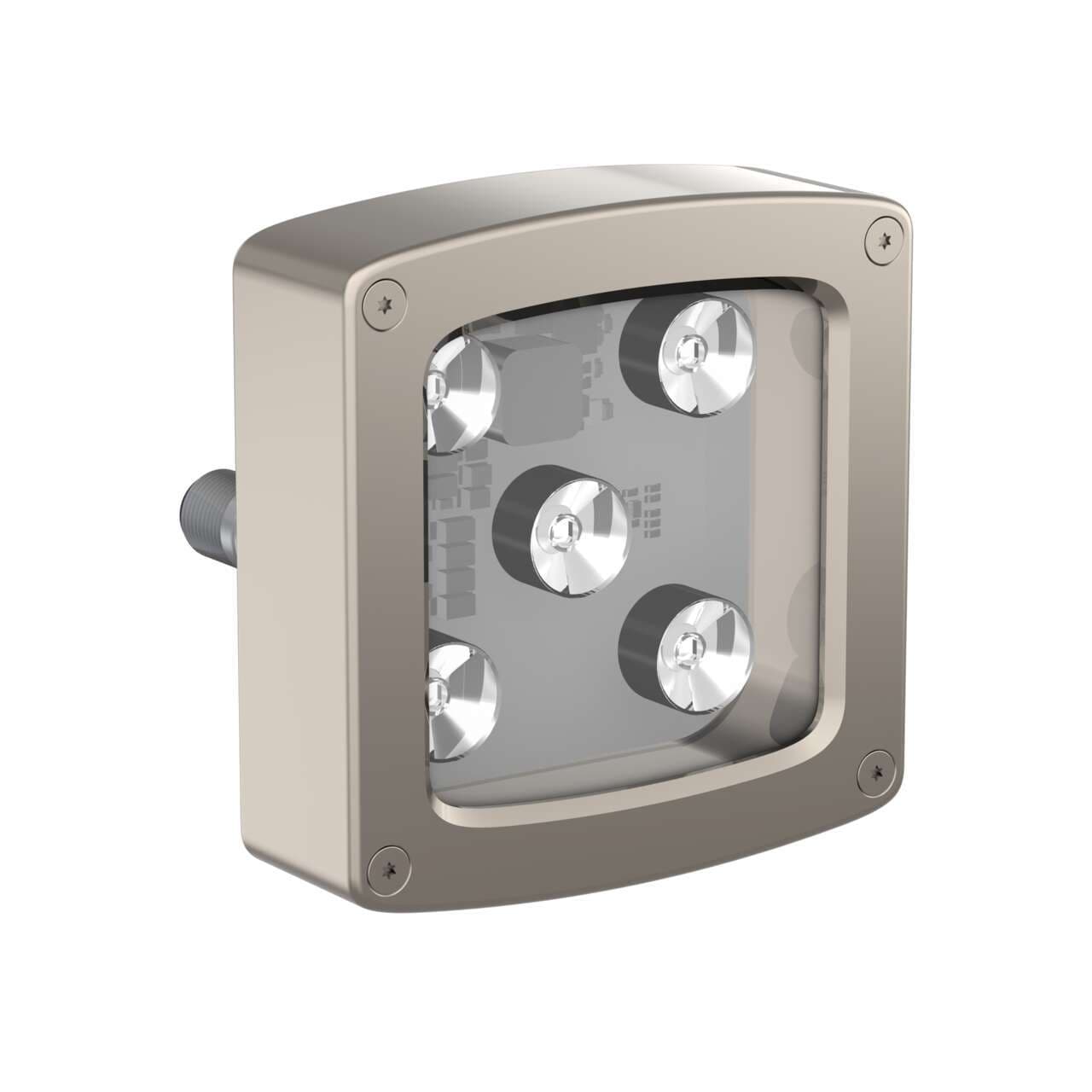

WLC90 Work Light; Dimensions: 90X90 mm; Voltage: 12-30 V dc; Environmental Rating: IP68g, IP69K; Color: White; 15 Deg Lens; Window: Glass; 4-pin M12 Integral QD; Rear exit

Product Details

  • Weight
    512.55896 g
  • Country Of Origin
    MX
  • Pro-Editor Compatible (Discrete)
    No
  • Modbus RTU
    No
  • IO Link
    No
  • Storage Temp (°C)
    -40 to 70
  • Feature: Hazardous Area
    No
  • Physical Dimensions (LxWxH or DxH mm)
    91.0 x 89.0 x 49.2
  • Wireless
    No
  • Feature: Quick Disconnect
    Yes
  • Feature: Chemical Resistant
    Yes
  • Feature: Audible
    No
  • Feature: Washdown Rated
    Yes
  • Primary Window Material
    Glass Clear
  • Min Op. Temperature (°C)
    -40
  • Lens Focusing Angle (°)/Field of View
    15
  • Max Op. Temperature (°C)
    70
  • Environmental Rating
    IP67; IP68; IP68g; IP69
  • Supply Voltage
    12-30 V dc
  • Illuminated Length (LxWxH mm)
    65.0
  • Lumens Color 1
    700
  • Dimming Option
    High-Low-Off
  • Color 1 - Wavelength/Color Temp/Coordinates
    6500K (Cool)
  • Number of Input Pins/Conductors
    4
  • Quick Disconnect Type
    M12 (Euro)
  • Connection
    Integral QD
  • Color Technology
    Standard LED
  • Animation Option 1
    Solid On
  • Color Option 1
    White
  • Housing Style
    Rectangular
  • Number of Colors / Segments
    1
  • Illumination
    Yes
  • Mounting Thread
    No Thread
  • Product Size (mm)
    90
  • Color Input Control
    Individual (One wire/color, same number of colors as input wires)
  • Primary Housing Material
    Aluminum
  • Power Source
    DC
  • Power
    DC

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of WLC90WGL15RQ on Powermatic Associates is $352.00. Order now.

About the product

Banner Engineering WLC90WGL15RQ is a task light designed for industrial heavy-duty applications, featuring LED work light with 1-color Cool White (W) LED illumination. It is equipped with a 15° glass window for rear connection and operates on a supply voltage of 12Vdc-30Vdc, with 24Vdc nominal. The dimensions of this product are L90mm x W90mm, constructed with a borosilicate glass window and an aluminium housing. It comes pre-equipped with a 4-pin M12 Euro-style QD connector for connectivity. The shape of the light is defined by its rectangular window. This product offers a high degree of protection with ratings of IP67, IP68, IP68G, and IP69K, making it suitable for various environmental conditions. It can be mounted on surfaces or walls and is designed to operate within an ambient air temperature range of -40°C to +70°C. Additionally, it includes 1 x digital input (12Vdc / 24Vdc) for color control.

WLC90WGL15RQ Related Documents

172704.pdf
