WLC90WGL15 Banner Light Bars

WLC90WGL15 on Powermatic Associates
Banner

Part#:WLC90WGL15

Manufacturer:Banner

Alt. Part#:86537

Product Lifecycle:Active

Get a quick Quote!

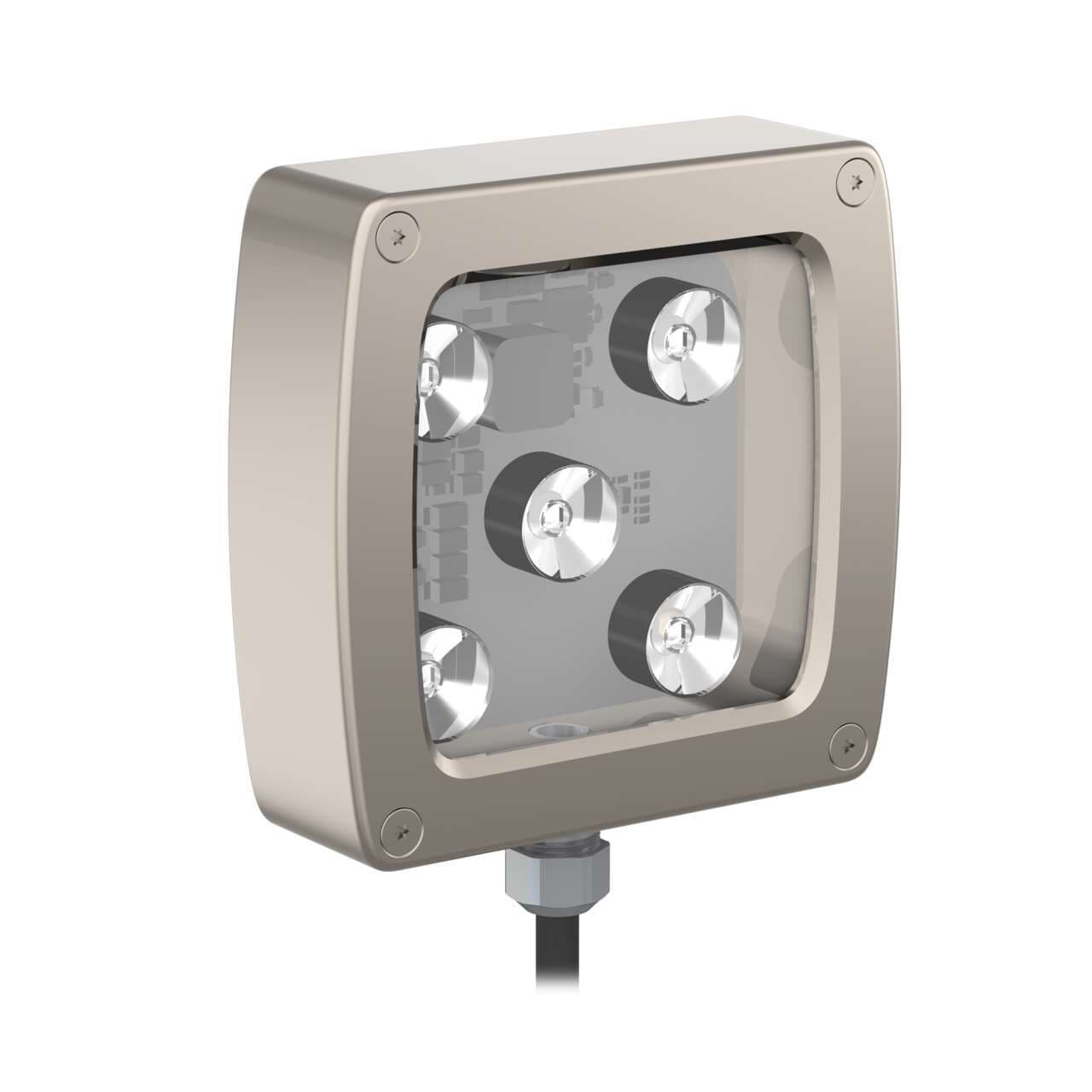

WLC90 Work Light; Dimensions: 90X90 mm; Voltage: 12-30 V dc; Environmental Rating: IP68g, IP69K; Color: White; 15 Deg Lens; Window: Glass; 2 m (6.5 ft) Integral Cable; Side exit

About the manufacturer: Banner is one of the manufacturers that offers Light Bars that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the WLC90WGL15 Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    566.99 g
  • Country Of Origin
    US
  • Pro-Editor Compatible (Discrete)
    No
  • Wireless
    No
  • Modbus RTU
    No
  • IO Link
    No
  • Feature: Quick Disconnect
    No
  • Feature: Chemical Resistant
    Yes
  • Feature: Audible
    No
  • Feature: Hazardous Area
    No
  • Primary Window Material
    Glass Clear
  • Feature: Washdown Rated
    Yes
  • Max Op. Temperature (°C)
    70
  • Lens Focusing Angle (°)/Field of View
    15
  • Storage Temp (°C)
    -40 to 70
  • Min Op. Temperature (°C)
    -40
  • Environmental Rating
    IP67; IP68; IP68g; IP69
  • Supply Voltage
    12-30 V dc
  • Illuminated Length (LxWxH mm)
    65.0
  • Physical Dimensions (LxWxH or DxH mm)
    91.0 x 103.7 x 28.2
  • Dimming Option
    High-Low-Off
  • Number of Input Pins/Conductors
    4
  • Color 1 - Wavelength/Color Temp/Coordinates
    6500K (Cool)
  • Lumens Color 1
    700
  • Animation Option 1
    Solid On
  • Connection
    Cable
  • Color Option 1
    White
  • Color Technology
    Standard LED
  • Primary Housing Material
    Aluminum
  • Power Source
    DC
  • Power
    DC
  • Number of Colors / Segments
    1
  • Product Size (mm)
    90
  • Color Input Control
    Individual (One wire/color, same number of colors as input wires)
  • Mounting Thread
    No Thread
  • Illumination
    Yes
  • Housing Style
    Rectangular

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

WLC90WGL15 Description

Banner Engineering WLC90WGL15 is a task light designed for industrial heavy-duty applications, featuring LED work light with 1-color Cool White (W) LED illumination. It is equipped with a 15° glass window side connection and operates on a supply voltage of 12Vdc-30Vdc, with a nominal 24Vdc. The dimensions of this product are L90mm x W90mm, constructed with a borosilicate glass window and an aluminium housing. It comes pre-wired with a 2m / 6.5ft 4-wire cable terminated with bare end flying leads. The shape of the light is defined by a rectangular window. This task light offers a high degree of protection with ratings of IP67, IP68, IP68G, and IP69K, making it suitable for various challenging environments. It can be mounted on surfaces or walls and is designed to operate within an ambient air temperature range of -40°C to +70°C. Additionally, it includes 1 x digital input (12Vdc / 24Vdc) for color control.

Related documents WLC90WGL15 Specs

WLC90WGL15 172704.pdf
