WLC90WL8R Banner Light Bars

WLC90WL8R on Powermatic Associates
Banner

Part#:WLC90WL8R

Alt. Part#:86530

Manufacturer:Banner

Category:Light Bars

Product Lifecycle:Active

Product description

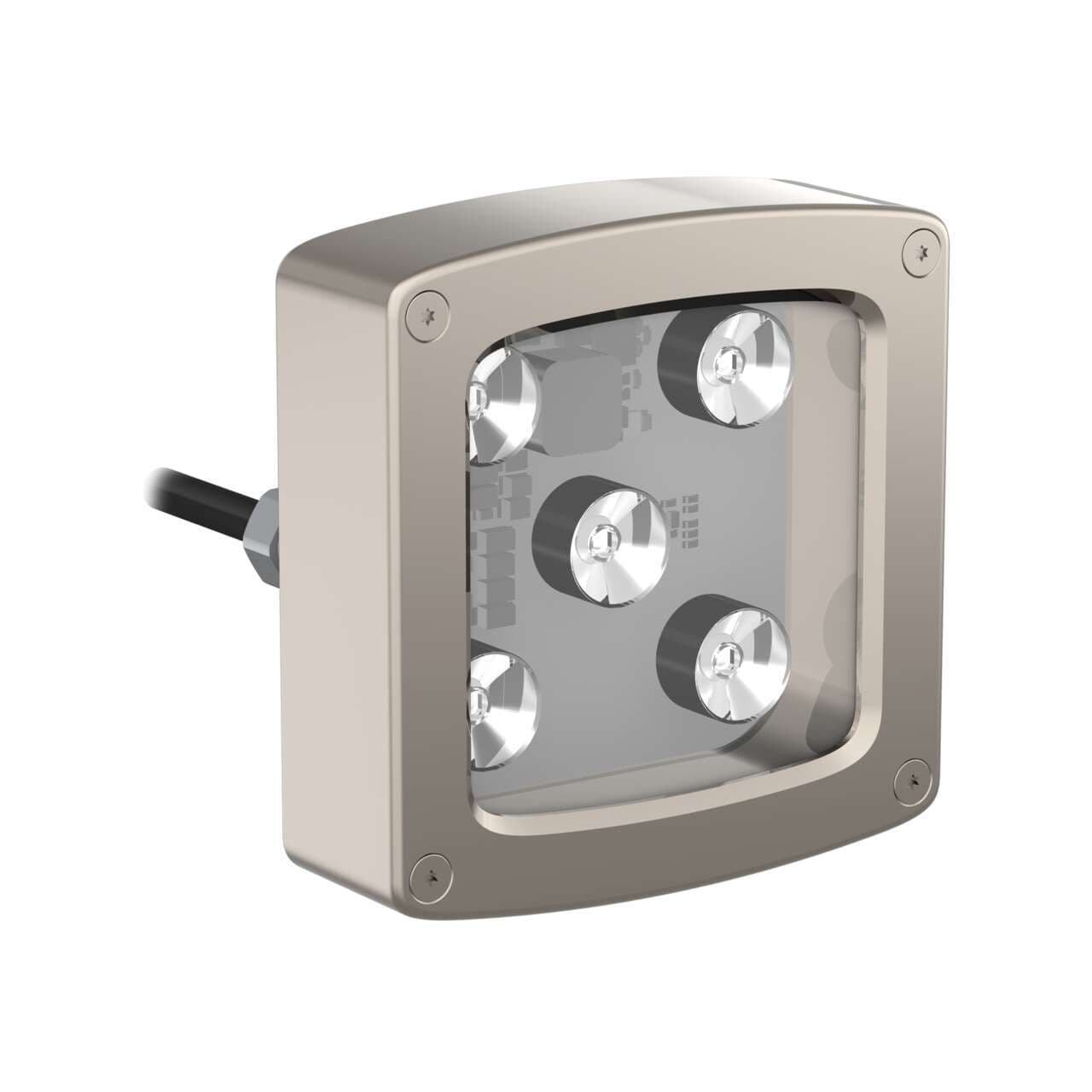

WLC90 Work Light; Dimensions: 90X90 mm; Voltage: 12-30 V dc; Environmental Rating: IP68g, IP69K; Color: White; 8 Deg Lens; Window: Polycarbonate; 2 m (6.5 ft) Integral Cable ; Rear exit

Product Details

  • Weight
    371.94544 g
  • Country Of Origin
    US
  • Wireless
    No
  • IO Link
    No
  • Feature: Quick Disconnect
    No
  • Pro-Editor Compatible (Discrete)
    No
  • Feature: Audible
    No
  • Modbus RTU
    No
  • Feature: Chemical Resistant
    Yes
  • Feature: Hazardous Area
    No
  • Feature: Washdown Rated
    Yes
  • Primary Window Material
    Polycarbonate Clear
  • Lens Focusing Angle (°)/Field of View
    8
  • Storage Temp (°C)
    -40 to 70
  • Min Op. Temperature (°C)
    -40
  • Environmental Rating
    IP67; IP68; IP68g; IP69
  • Max Op. Temperature (°C)
    70
  • Physical Dimensions (LxWxH or DxH mm)
    91.0 x 89.0 x 42.9
  • Supply Voltage
    12-30 V dc
  • Illuminated Length (LxWxH mm)
    65.0
  • Number of Input Pins/Conductors
    4
  • Dimming Option
    High-Low-Off
  • Color 1 - Wavelength/Color Temp/Coordinates
    6500K (Cool)
  • Connection
    Cable
  • Animation Option 1
    Solid On
  • Lumens Color 1
    700
  • Color Option 1
    White
  • Color Technology
    Standard LED
  • Power
    DC
  • Housing Style
    Rectangular
  • Product Size (mm)
    90
  • Mounting Thread
    No Thread
  • Color Input Control
    Individual (One wire/color, same number of colors as input wires)
  • Primary Housing Material
    Aluminum
  • Power Source
    DC
  • Illumination
    Yes
  • Number of Colors / Segments
    1

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of WLC90WL8R on Powermatic Associates is $326.00. Order now.

About the product

Banner Engineering WLC90WL8R is a task light designed for industrial heavy-duty applications, featuring LED illumination in Cool White with a single color. It is equipped with an 8° polycarbonate window for rear connection and operates on a supply voltage range of 12Vdc to 30Vdc, with a nominal voltage of 24Vdc. The dimensions of this product are L90mm x W90mm, and it is constructed with a polycarbonate window and an aluminium housing for durability. It comes pre-wired with a 2m / 6.5ft 4-wire cable terminated with bare end flying leads for easy installation. The rectangular window shape of the WLC90WL8R offers focused lighting, and it boasts a high degree of protection with ratings of IP67, IP68, IP68G, and IP69K, making it suitable for challenging environments. It can be mounted on surfaces or walls and is designed to operate within an ambient air temperature range of -40°C to +70°C. Additionally, it features 1 x digital input (12Vdc / 24Vdc) for color control.
