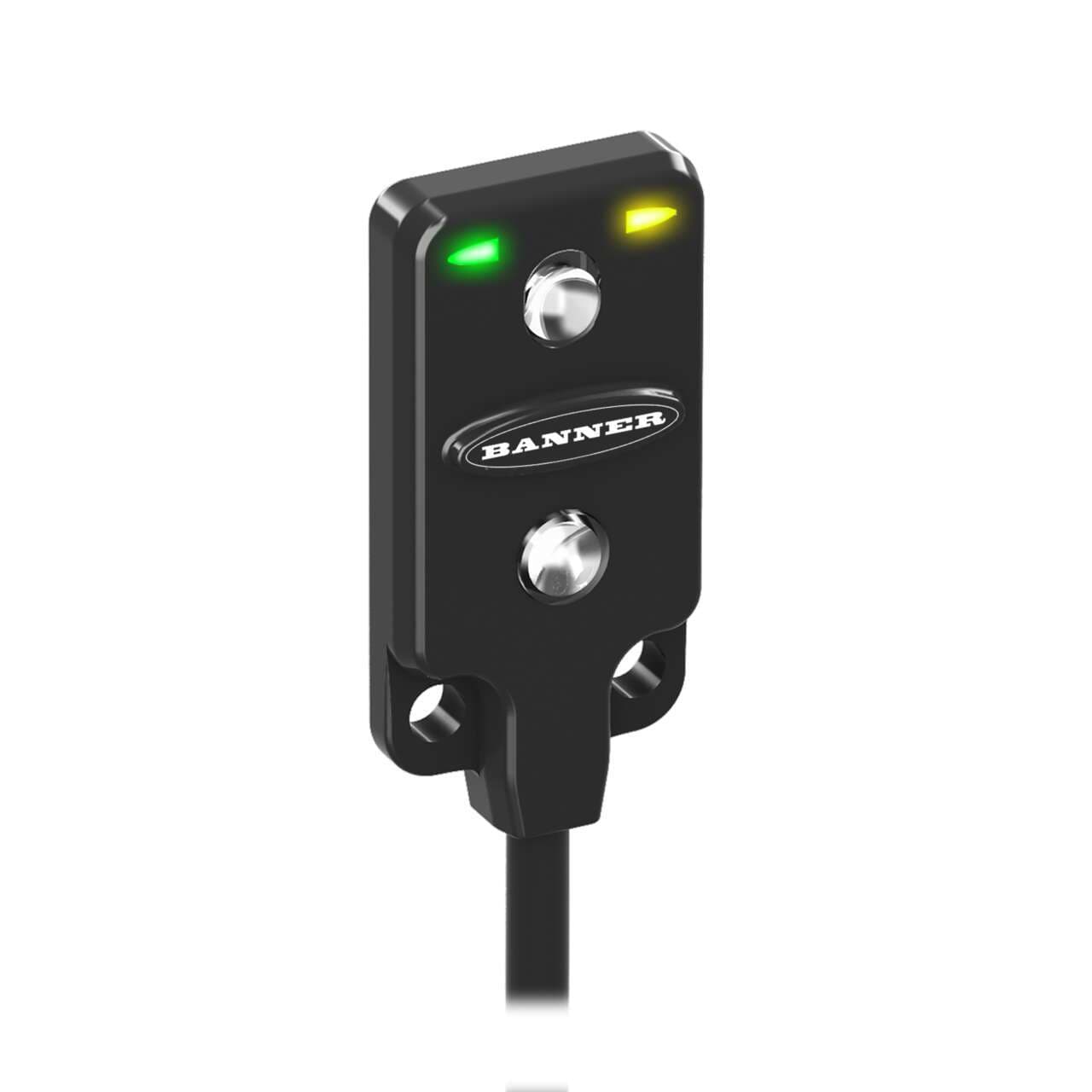

VS2RP5CV15Q Banner Proximity Sensors
Part#:VS2RP5CV15Q
Alt. Part#:63077
Manufacturer:Banner
Category:Proximity Sensors
Product Lifecycle:Active
Product description
VS2 Series: Convergent; Focal Point: 15 mm; Input: 10-30 V dc; Output: PNP Dark Operate; 3-pin M8 Pigtail QD
Product Details
- Weight 36.28736 g
- Country Of Origin MX
- Supply voltage (DC) 10Vdc-30Vdc (12Vdc / 24Vdc nom.)
- Shape Rectangular
- Light Color Visible red
- Digital outputs 1 x digital output (PNP transistor)
- Order code / Manufacturer SKU 63077
- Sub-range name VS2 series
- Wavelength 660 nm
- Response time 1ms / 0.001 s
- Primary brand Banner Engineering
- Functions Photo-electric sensor green LED (power ON) amber LED (light sensed)
- Sensing distance 15mm
- Connection type Pre-wired with 6" / 150mm pigtail terminated with 3-pin Pico-style M8 connector
- Operating mode Dark-ON
- Main function Sensor (Photo-electric)
- Ambient air temperature for operation -20...+55 °C
- Design convergent mode
- Degree of protection IP67 NEMA 6
- Material thermoplastic housing MABS lns.
- Compliant with standard(s) CE
- Feature: Chemical Resistant No
- Sensing Mode (General) Proximity
- Output response time (ms) 1 ON/0.5 OFF
- Repeatability (µs) 100
- Adjustments N/A
- Primary Housing Material Thermoplastic
- Max Op. Temp. (°C) 55
- Number of Pins 3
- Opposed Mode Emitter/Receiver N/A
- Outputs PNP
- Special Feature: Remote Teach No
- Lens Material MABS
- DeviceNet No
- Input/Output Discrete
- Min Op. Temp. (°C) -20
- Barrel Diameter (mm) N/A
- NEMA Rating NEMA 6
- Sensing Beam Visible Red LED
- Power Supply/Supply Voltage 10-30 V dc
- Sensing Beam Wavelength 660
- Indicator LEDs
- IO Link No
- Housing Style Rectangular
- Quick Disconnect Type M8 (Pico)
- IP Rating IP67
- Feature: Audible No
- Power DC
- Connection Pigtail QD
- Special Feature: Water Detection No
- Feature: Timing (Hold/Delay) No
- Max Sensing Distance (mm) 15
- Special Feature: Intrinsically Safe No
- Max Op. Relative Humidity [%] 80% @ 50°C
- Feature: Hazardous Area No
- Sensing Mode (Detailed) Convergent
- Operation Dark Operate
- Delay at Power-up (ms) 100
- Feature: Encapsulated No
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of VS2RP5CV15Q on Powermatic Associates is $131.00. Order now.
About the product
Banner Engineering VS2RP5CV15Q is a photo-electric sensor constructed with a thermoplastic housing MABS lns. and designed to operate within an ambient air temperature range of -20 to +55 °C. It features an IP67 NEMA 6 degree of protection, ensuring its suitability for various industrial environments. This sensor operates in a Dark-ON mode and is equipped with a single digital output (PNP transistor). It boasts a rapid response time of 1ms / 0.001 s and comes pre-wired with a 6" / 150mm pigtail terminated with a 3-pin Pico-style M8 connector for easy installation. The rectangular-shaped sensor emits a visible red light at a wavelength of 660 nm and operates on a supply voltage range of 10Vdc-30Vdc (12Vdc / 24Vdc nom.). Designed in a convergent mode, it has a sensing distance of 15mm. This part is part of the VS2 series, specifically tailored for photo-electric sensing applications.
