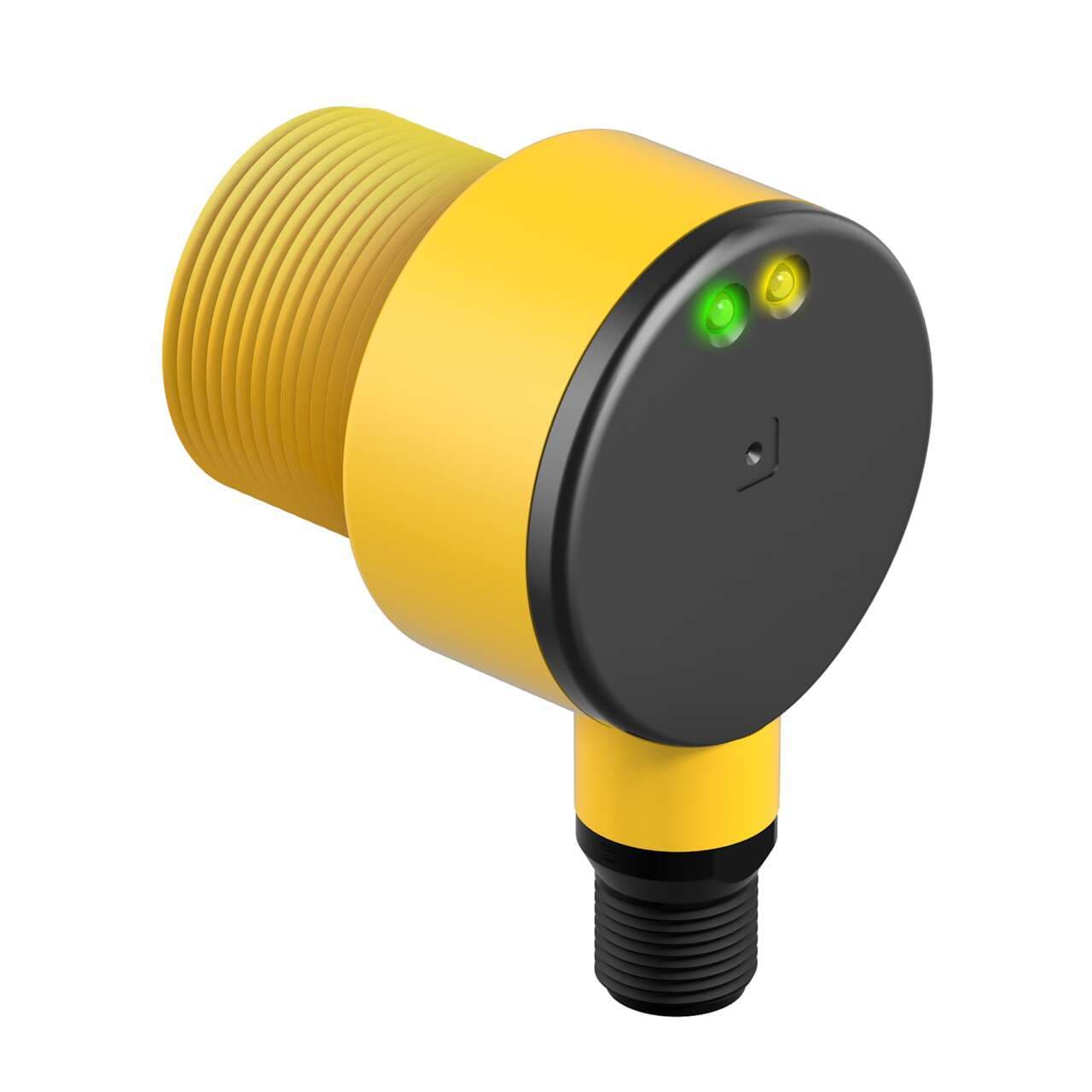

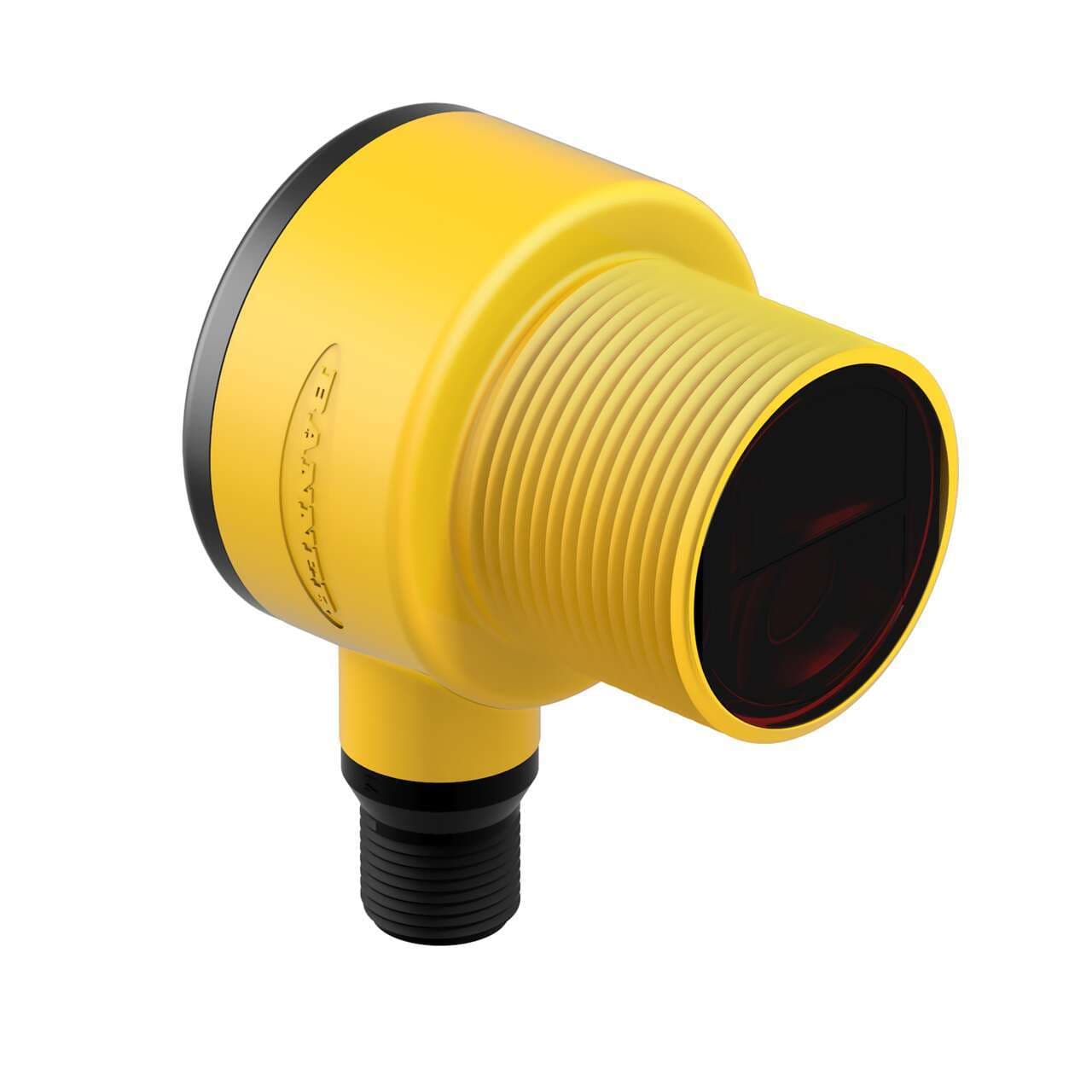

T30SP6FF600Q Banner Proximity Sensors

T30SP6FF600Q on Powermatic Associates
Banner
  • T30SP6FF600Q
  • T30SP6FF600Q

Part#:T30SP6FF600Q

Alt. Part#:34349

Manufacturer:Banner

Category:Proximity Sensors

Product Lifecycle:Active

Product description

EZ-BEAM T30 Series: Fixed Field; Range: 600 mm; Input: 10-30 V dc; Output: Complementary PNP; 4-pin M12 Integral QD

Product Details

  • Weight
    99.79024 g
  • Country Of Origin
    US
  • Primary brand
    Banner Engineering
  • Supply voltage (DC)
    10Vdc-30Vdc (12Vdc / 24Vdc nom.)
  • Connection type
    Pre-equipped with 4-pin Euro-style M12 connector
  • Material
    thermoplastic housing
  • Functions
    Fixed-field photo-electric sensor green LED (power ON) yellow LED (output state)
  • Shape
    Cylindrical threaded/barrel
  • Digital outputs
    1 x digital output (PNP transistor)
  • Ambient air temperature for operation
    -40...+70 °C
  • Product series / family name
    EZ-BEAM series
  • Sensing distance
    600mm
  • Response time
    3ms / 0.003 s
  • Main function
    Sensor (Photo-electric)
  • Design
    background suppression system
  • Operating mode
    Light-ON Dark-ON
  • Compliant with standard(s)
    cULus cCSAus CE
  • Sub-range name
    T30 series
  • Light Color
    Infrared (IR)
  • Thread size
    M30
  • Degree of protection
    IP69K NEMA 6P
  • Order code / Manufacturer SKU
    34349
  • Delay at Power-up (ms)
    100
  • Indicator
    LEDs
  • IO Link
    No
  • Outputs
    PNP
  • Power
    DC
  • Special Feature: Remote Teach
    No
  • Adjustments
    N/A
  • Sensing Mode (General)
    Proximity
  • Connection
    Integral QD
  • Number of Pins
    4
  • Feature: Washdown Rated
    Yes
  • Input/Output
    Discrete
  • Power Supply/Supply Voltage
    10-30 V dc
  • NEMA Rating
    NEMA 6P
  • Feature: Encapsulated
    Yes
  • Housing Style
    Barrel
  • Output response time (ms)
    3
  • IP Rating
    IP69
  • Feature: Timing (Hold/Delay)
    No
  • Max Sensing Distance (mm)
    600
  • Special Feature: Intrinsically Safe
    No
  • Lens Material
    Acrylic
  • Feature: Health/ Marginal Signal Output
    Yes
  • Operation
    Light/Dark Operate
  • Sensing Mode (Detailed)
    Background Suppression (Fixed)
  • Repeatability (µs)
    750
  • Opposed Mode Emitter/Receiver
    N/A
  • Min Op. Temp. (°C)
    -40
  • Sensing Beam
    Infrared LED
  • Max Op. Temp. (°C)
    70
  • Barrel Diameter (mm)
    30
  • Primary Housing Material
    Thermoplastic
  • Quick Disconnect Type
    M12 (Euro)
  • Special Feature: Water Detection
    No
  • Max Op. Relative Humidity [%]
    90% @ 50°C
  • Feature: Ecolab Certified
    Yes
  • Feature: Hazardous Area
    No
  • Feature: Chemical Resistant
    No
  • DeviceNet
    No
  • Feature: Audible
    No

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of T30SP6FF600Q on Powermatic Associates is $136.00. Order now.

About the product

Banner Engineering T30SP6FF600Q is a fixed-field photo-electric sensor from the T30 series, designed with a background suppression system. This sensor features a thermoplastic housing and is pre-equipped with a 4-pin Euro-style M12 connector for connectivity. It operates on a supply voltage range of 10Vdc to 30Vdc, with nominal voltages of 12Vdc and 24Vdc. The sensor can function within an ambient air temperature range of -40 to +70°C and boasts a degree of protection rated at IP69K NEMA 6P, making it suitable for harsh environments. Its M30 cylindrical threaded/barrel shape facilitates easy installation. The T30SP6FF600Q offers a sensing distance of 600mm and utilizes infrared (IR) light, with a response time of 3ms (0.003 s). It includes 1 x digital output (PNP transistor) and supports both Light-ON and Dark-ON operating modes. The thread size for this sensor is M30.

T30SP6FF600Q Related Documents

116161.pdf
