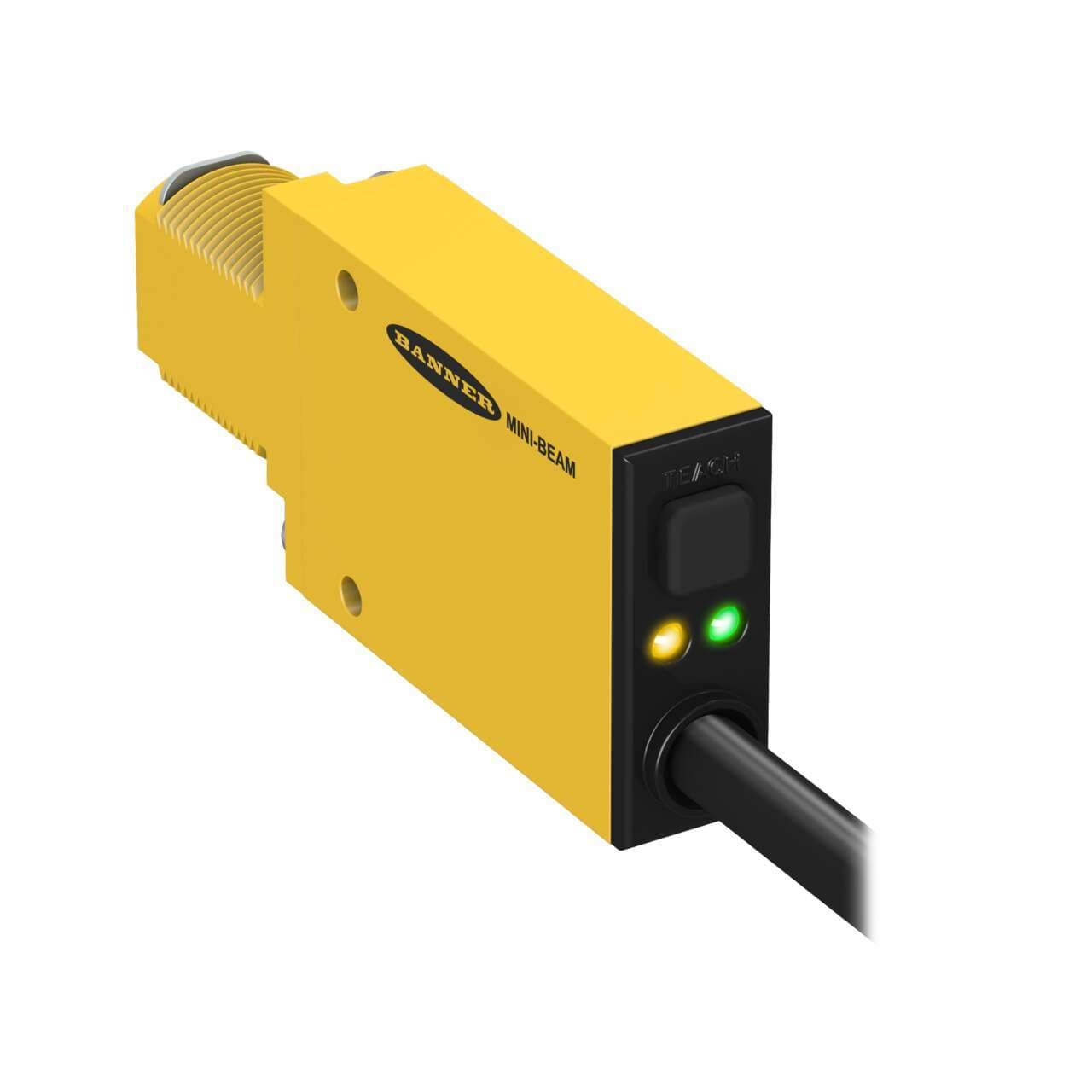

SME312FVW Banner Proximity Sensors
Part#:SME312FVW
Alt. Part#:55523
Manufacturer:Banner
Category:Proximity Sensors
Product Lifecycle:Active
Product description
MINI-BEAM EXPERT: Visible White Glass Fiber Optic; Range: Depends on Fiber; Input: 10-30 V dc; Output: Bipolar: 1 NPN; 1 PNP; 2 m (6.5 ft) Cable
Product Details
- Weight 190.50864 g
- Country Of Origin US
- Supply voltage (DC) 10Vdc-30Vdc (12Vdc / 24Vdc nom.)
- Thread size M18
- Digital outputs 1 x digital output (PNP/NPN transistor)
- Ambient air temperature for operation -20...+70 °C
- Main function Sensor (Photo-electric)
- Wavelength 450-650 nm
- Compliant with standard(s) cURus CE
- Primary brand Banner Engineering
- Product series / family name MINI-BEAM series
- Functions Photo-electric fiber optic sensor green / red LED (power ON) amber LED (output state) TEACH mode
- Degree of protection IP67 NEMA 1 NEMA 2 NEMA 3 NEMA 3S NEMA 4 NEMA 4X NEMA 6 NEMA 12 NEMA 13
- Sub-range name SME312 Expert
- Shape Rectangular
- Operating mode Light-ON Dark-ON
- Material thermoplastic housing Glass fiber
- Light Color Visible white
- Mounting mode Threaded mount
- Connection type Pre-wired with 6.5ft / 2m cable terminated with bare end flying leads
- Order code / Manufacturer SKU 55523
- Primary Housing Material Thermoplastic
- Fiber Type Glass Only
- Max Op. Relative Humidity (%) 90% @ 50°C
- Feature: Hazardous Area No
- Cable Length (m) 2
- IP Rating IP67
- Power Supply/Supply Voltage 10-30 V dc
- Feature: Audible No
- Output Bipolar (NPN & PNP)
- Repeatability (µs) 100
- Intrinsically Safe No
- Indicator Display Type Indicator LEDs
- Connection Cable
- Quick Disconnect Type No QD
- Special Feature: Remote Teach Yes
- Feature: Timing (Hold/Delay) No
- Color LED - Amplifiers White
- Number of Pins 5
- Minimum response time (ms) .5
- IO Link No
- Input/Output Discrete
- NEMA Rating NEMA 1, 2, 3, 3S, 4, 4X, 6, 12, 13
- Adjustments Teach Button
- Housing Material Thermoplastic
- Power DC
- Output Type (Specific) Single Discrete
- Min Op. Temperature (°C) -20
- Special Feature: Bussable Power No
- Housing Style Rectangular w/M18 Mount
- Max Op. Temperature (°C) 70
- Delay at Power-up (ms) 1000
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of SME312FVW on Powermatic Associates is $239.00. Order now.
About the product
Banner Engineering SME312FVW is a photo-electric fiber optic sensor from the SME312 Expert series. This sensor features a thermoplastic housing with glass fiber and is designed with TEACH mode for versatile application. It comes pre-wired with a 6.5ft / 2m cable terminated with bare end flying leads for easy installation. The SME312FVW operates on a supply voltage of 10Vdc-30Vdc, with nominal voltages of 12Vdc and 24Vdc, and can be mounted using an M18 threaded mount. It is designed to operate within an ambient air temperature range of -20 to +70°C and offers a high degree of protection with ratings of IP67, NEMA 1, 2, 3, 3S, 4, 4X, 6, 12, and 13, ensuring durability in various environments. The sensor has a rectangular shape, includes 1 x digital output (PNP/NPN transistor), and provides a visible white light with a wavelength range of 450-650 nm. It features a fast response time of 0.5ms / 0.0005 s and supports both Light-ON and Dark-ON operating modes for flexible application in detecting presence or absence of objects.
