SMA30PEL Banner Proximity Sensors

SMA30PEL on Powermatic Associates
Banner

Part#:SMA30PEL

Manufacturer:Banner

Category:Proximity Sensors

Alt. Part#:27287

Product Lifecycle:Active

Get a quick Quote!

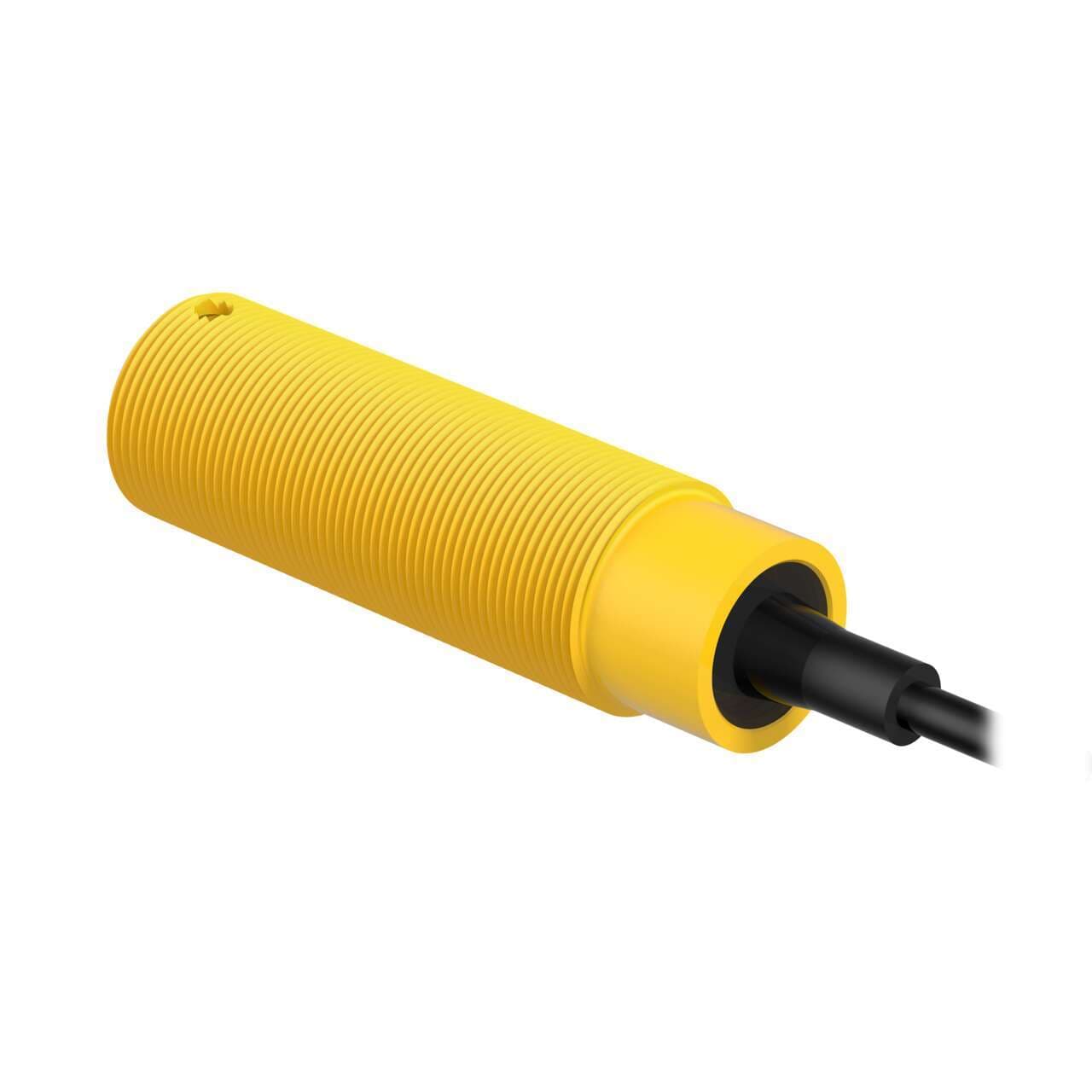

SM30 Series: Emitter - Frequency A PBT Polyester; Range: 150 m; Input: 10-30 V dc /12-240 V ac; Output: Not Applicable; 2 m (6.5 ft) Cable

About the manufacturer: Banner is one of the manufacturers that offers Proximity Sensors that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the SMA30PEL Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    223.167264 g
  • Country Of Origin
    MX
  • IO Link
    No
  • DeviceNet
    No
  • Feature: Chemical Resistant
    No
  • Feature: Audible
    No
  • Opposed Mode Emitter/Receiver
    Emitter
  • Feature: Timing (Hold/Delay)
    No
  • Indicator
    LEDs
  • Feature: Hazardous Area
    No
  • Adjustments
    N/A
  • Feature: Encapsulated
    Yes
  • Barrel Diameter (mm)
    30
  • Lens Material
    Acrylic
  • Special Feature: Water Detection
    No
  • Max Op. Relative Humidity [%]
    90% @ 50°C
  • Repeatability (µs)
    N/A
  • IP Rating
    IP67
  • Number of Pins
    2
  • NEMA Rating
    NEMA 6P
  • Delay at Power-up (ms)
    N/A
  • Special Feature: Remote Teach
    No
  • Special Feature: Intrinsically Safe
    No
  • Min Op. Temp. (°C)
    -40
  • Operation
    N/A
  • Output response time (ms)
    N/A
  • Connection
    Cable
  • Max Op. Temp. (°C)
    70
  • Power Supply/Supply Voltage
    10-30 V dc or 12-240 V ac
  • Quick Disconnect Type
    No QD
  • Outputs
    N/A
  • Sensing Mode (Detailed)
    Emitter
  • Housing Style
    Barrel
  • Sensing Beam
    Infrared LED
  • Power
    AC/DC Universal
  • Cable Length (m)
    2
  • Max Sensing Distance (mm)
    150000
  • Sensing Mode (General)
    Opposed
  • Primary Housing Material
    Thermoplastic
  • Primary brand
    Banner Engineering
  • Supply voltage (DC)
    10Vdc-30Vdc (12Vdc / 24Vdc nom.)
  • Response time
    10ms / 0.01 s
  • Sub-range name
    SM30 series
  • Main function
    Sensor (Photo-electric)
  • Supply voltage (AC)
    12Vac-240Vac (200Vac / 220Vac nom.)
  • Functions
    Photo-electric emitter red LED (power ON)
  • Thread size
    M30
  • Connection type
    Pre-wired with 6.5ft / 2m cable terminated with bare end flying leads
  • Product series / family name
    EZ-BEAM series
  • Design
    through-beam system / opposed mode "A" modulation frequency washdown rated
  • Light Color
    Infrared (IR)
  • Material
    thermoplastic housing
  • Ambient air temperature for operation
    -40...+70 °C
  • Wavelength
    880 nm
  • Degree of protection
    IP67 NEMA 6P
  • Order code / Manufacturer SKU
    27287
  • Shape
    Cylindrical threaded/barrel
  • Compliant with standard(s)
    cURus CSA CE

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

SMA30PEL Description

Banner Engineering SMA30PEL is a photo-electric sensor designed as part of the SM30 series, featuring a through-beam system with opposed mode "A" modulation frequency and is washdown rated. This sensor, functioning as an emitter alone, is housed in a thermoplastic material. It comes pre-wired with a 6.5ft / 2m cable terminated with bare end flying leads. The SMA30PEL operates on a supply voltage range of 12Vac-240Vac (200Vac / 220Vac nominal) for AC and 10Vdc-30Vdc (12Vdc / 24Vdc nominal) for DC. It is designed to work within an ambient air temperature range of -40 to +70°C. This sensor offers a degree of protection rated at IP67, NEMA 6P, and IP69K. It has an M30 cylindrical threaded/barrel shape, with a sensing distance of up to 150m. The SMA30PEL utilizes infrared (IR) light with a wavelength of 880 nm and has a response time of 10ms / 0.01 s. The thread size for installation is M30.
