SMA30SELQDC Banner Proximity Sensors

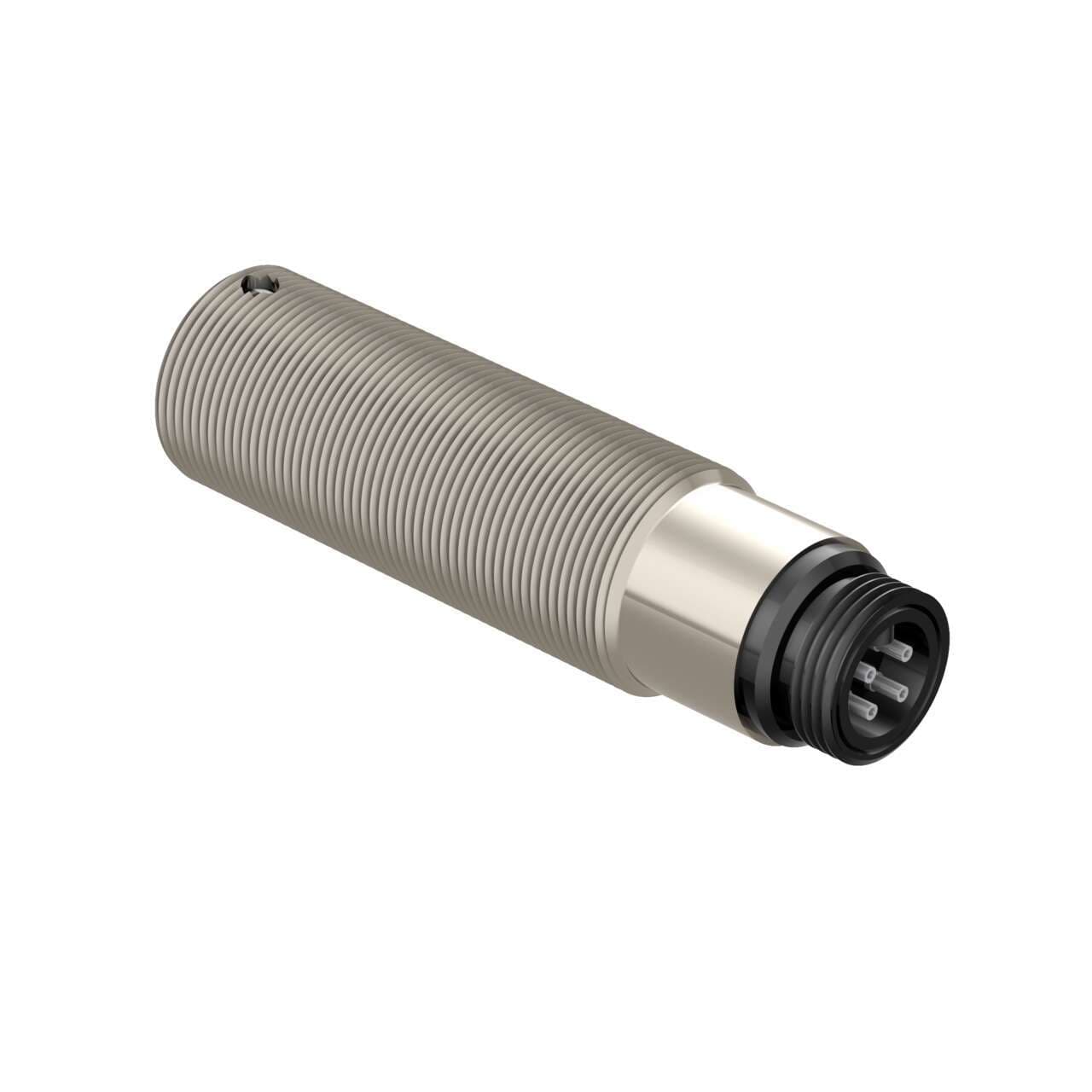

Banner SMA30SELQDC SM30 Series: Emitter - Frequency C Stainless Stl; Range: 150 m; Input: 10-30 V dc /12-240 V ac; Output: Not Applicable; 3-pin Mini Integral QD
Banner

Part#:SMA30SELQDC

Manufacturer:Banner

Alt. Part#:27562

Product Lifecycle:Active

Get a quick Quote!

SM30 Series: Emitter - Frequency C Stainless Stl; Range: 150 m; Input: 10-30 V dc /12-240 V ac; Output: Not Applicable; 3-pin Mini Integral QD

About the manufacturer: Banner is one of the manufacturers that offers Proximity Sensors that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the SMA30SELQDC Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    381.01728 g
  • Country Of Origin
    MX
  • IO Link
    No
  • DeviceNet
    No
  • Feature: Chemical Resistant
    Yes
  • Feature: Audible
    No
  • Feature: Hazardous Area
    No
  • Opposed Mode Emitter/Receiver
    Emitter
  • Feature: Timing (Hold/Delay)
    No
  • Feature: Encapsulated
    Yes
  • Indicator
    LEDs
  • Barrel Diameter (mm)
    30
  • Adjustments
    N/A
  • Max Op. Relative Humidity [%]
    90% @ 50°C
  • Number of Pins
    3
  • Lens Material
    Acrylic
  • NEMA Rating
    NEMA 6P
  • IP Rating
    IP67
  • Repeatability (µs)
    N/A
  • Delay at Power-up (ms)
    N/A
  • Special Feature: Water Detection
    No
  • Min Op. Temp. (°C)
    -40
  • Special Feature: Intrinsically Safe
    No
  • Special Feature: Remote Teach
    No
  • Max Op. Temp. (°C)
    70
  • Output response time (ms)
    N/A
  • Operation
    N/A
  • Connection
    Integral QD
  • Quick Disconnect Type
    7/8 in. (Mini)
  • Outputs
    N/A
  • Housing Style
    Barrel
  • Sensing Mode (General)
    Opposed
  • Power Supply/Supply Voltage
    10-30 V dc or 12-240 V ac
  • Primary Housing Material
    Stainless Steel
  • Sensing Mode (Detailed)
    Emitter
  • Max Sensing Distance (mm)
    150000
  • Power
    AC/DC Universal
  • Sensing Beam
    Infrared LED

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

SMA30SELQDC Description

Banner Engineering SMA30SELQDC is a photo-electric sensor from the SM30 series designed with a through-beam system and opposed mode "C" modulation frequency, suitable for washdown applications. This sensor features a stainless steel housing and is pre-equipped with a 3-pin 7/8" mini connector for connectivity. It operates on a supply voltage range of 12Vac-240Vac (200Vac / 220Vac nom.) for AC and 10Vdc-30Vdc (12Vdc / 24Vdc nom.) for DC. The SMA30SELQDC can function within an ambient air temperature range of -40 to +70°C and offers a degree of protection rated at IP67, NEMA 6P, and IP69K. Its M30 cylindrical threaded/barrel shape facilitates easy installation, and it has a sensing distance of up to 150m. The sensor utilizes infrared (IR) light with a wavelength of 880 nm and boasts a quick response time of 10ms / 0.01 s.

Related documents SMA30SELQDC Specs

SMA30SELQDC 03541.pdf
