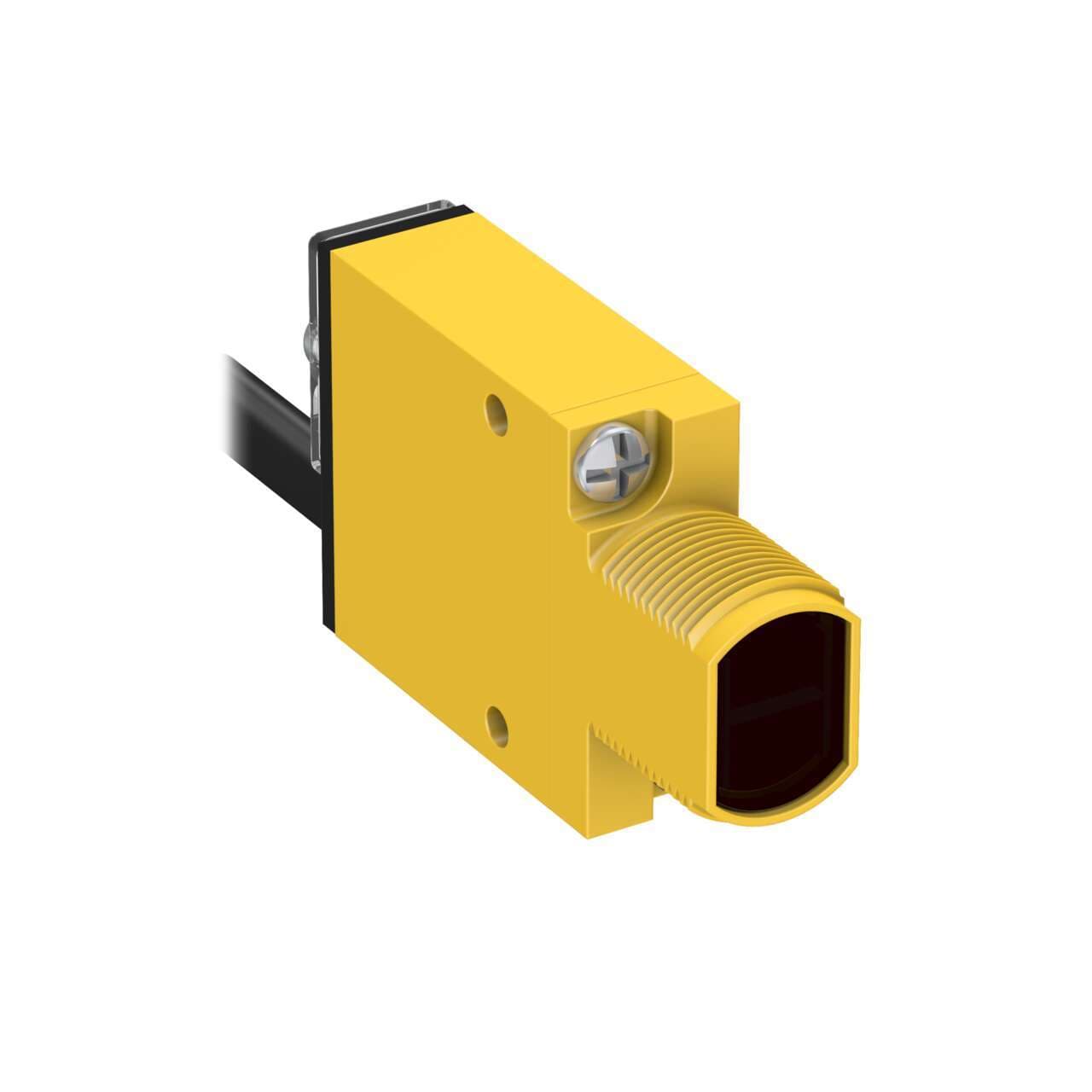

SM31RMHS Banner Proximity Sensors
Part#:SM31RMHS
Alt. Part#:26412
Manufacturer:Banner
Category:Proximity Sensors
Product Lifecycle:Active
Product description

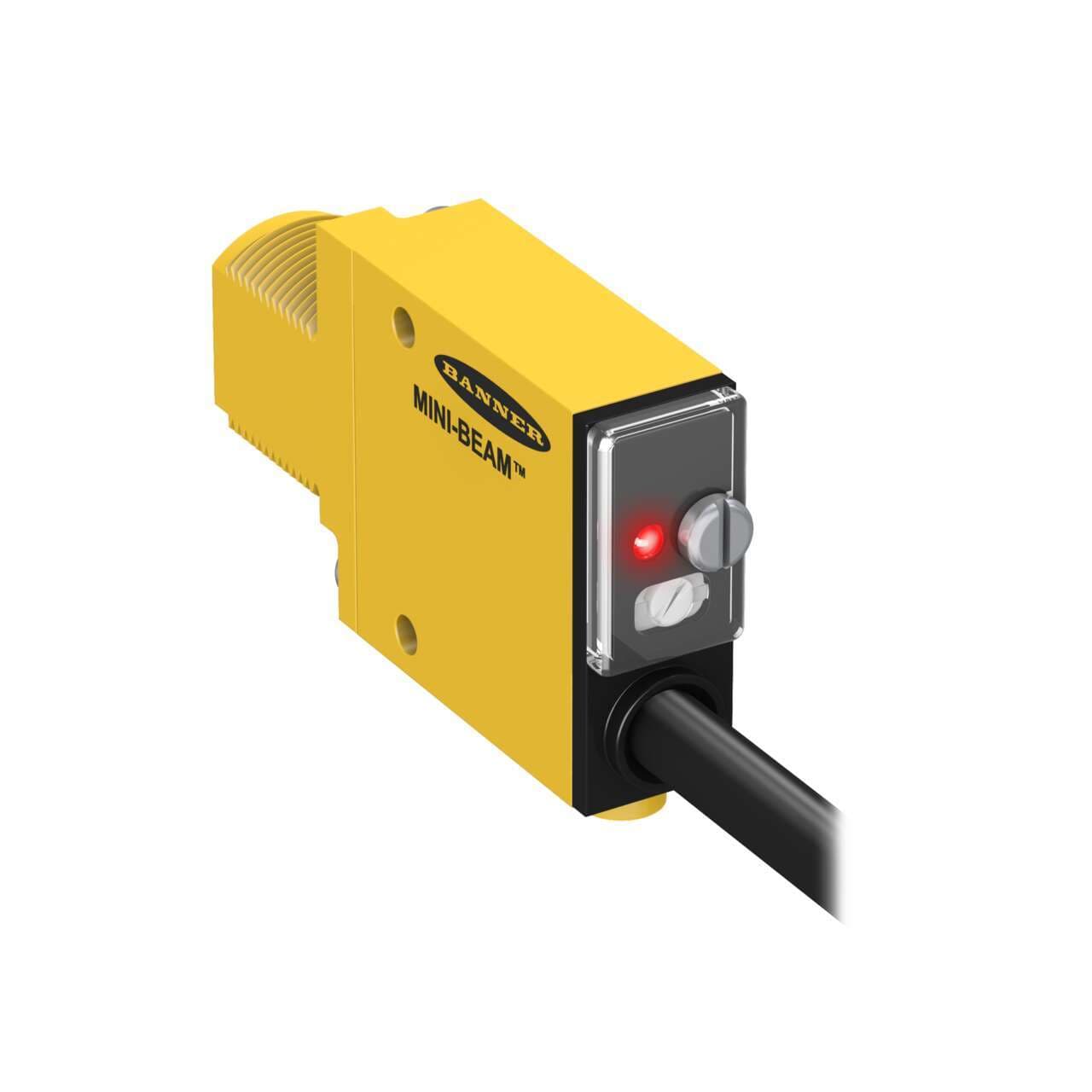

MINI-BEAM: High Speed Receiver; Input: 10-30 V dc; Output: Bipolar: 1 NPN; 1 PNP; MHS Response Time = 0.3 ms; 2 m (6.5 ft) Cable
Product Details
- Weight 145.14944 g
- Country Of Origin US
- Primary brand Banner Engineering
- Product series / family name MINI-BEAM series
- Operating mode Light-ON Dark-ON
- Degree of protection IP67 NEMA 1 NEMA 2 NEMA 3 NEMA 3S NEMA 4 NEMA 4X NEMA 6 NEMA 12 NEMA 13
- Functions Photo-electric sensor receiver red LED (power ON) potentiometer adjustment
- Connection type Pre-wired with 6.5ft / 2m cable terminated with bare end flying leads
- Ambient air temperature for operation -20...+70 °C
- Sub-range name SM312
- Thread size M18
- Compliant with standard(s) cURus CSA CE
- Main function Sensor (Photo-electric)
- Digital outputs 1 x digital output (PNP/NPN transistor)
- Order code / Manufacturer SKU 26412
- Mounting mode Threaded mount
- Response time 0.3ms / 0.0003 s
- Light Color Infrared (IR)
- Material thermoplastic housing Acrylic lns.
- Design through-beam system / opposed mode
- Supply voltage (DC) 10Vdc-30Vdc (12Vdc / 24Vdc nom.)
- Sensing distance 3m
- Shape Rectangular
- Primary Housing Material Thermoplastic
- Max Op. Temp. (°C) 70
- Max Op. Relative Humidity [%] 90% @ 50°C
- Feature: Chemical Resistant No
- Power DC
- Quick Disconnect Type No QD
- Delay at Power-up (ms) 100
- Feature: Encapsulated Yes
- Input/Output Discrete
- Special Feature: Remote Teach No
- Adjustments Potentiometer
- Housing Style Rectangular w/M18 Mount
- Number of Pins 4
- Feature: Hazardous Area No
- Sensing Mode (General) Opposed
- Operation Light/Dark Operate
- Repeatability (µs) 140
- Indicator LEDs
- Power Supply/Supply Voltage 10-30 V dc
- NEMA Rating NEMA 1, 2, 3, 3S, 4, 4X, 6, 12
- Feature: Audible No
- Cable Length (m) 2
- Connection Cable
- Special Feature: Water Detection No
- Feature: Timing (Hold/Delay) No
- Outputs Bipolar (NPN & PNP)
- Special Feature: Intrinsically Safe No
- Opposed Mode Emitter/Receiver Receiver
- DeviceNet No
- Max Sensing Distance (mm) 3000
- Sensing Beam Infrared LED
- Output response time (ms) 0.3
- Barrel Diameter (mm) 18
- IO Link No
- Sensing Mode (Detailed) Receiver
- Min Op. Temp. (°C) -20
- IP Rating IP67
- Lens Material Acrylic
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of SM31RMHS on Powermatic Associates is $125.00. Order now.
About the product
Banner Engineering SM31RMHS is a photo-electric sensor from the SM312 series designed with a through-beam system and opposed mode potentiometer adjustment. This sensor functions as a receiver alone, housed in a thermoplastic material with an acrylic lens. It features a pre-wired connection with a 6.5ft / 2m cable terminated with bare end flying leads. The SM31RMHS operates on a supply voltage of 10Vdc-30Vdc, with nominal values of 12Vdc and 24Vdc, and is mounted using an M18 threaded mount. It is designed to operate within an ambient air temperature range of -20 to +70°C and boasts a degree of protection rated at IP67, NEMA 1, NEMA 2, NEMA 3, NEMA 3S, NEMA 4, NEMA 4X, NEMA 6, and NEMA 12. The sensor has a rectangular shape, includes 1 x digital output (PNP/NPN transistor), and offers a sensing distance of 3m. It utilizes infrared (IR) light, with a response time of 0.3ms / 0.0003 s, and supports both Light-ON and Dark-ON operating modes.
