SM31EMHSQDP
Banner
Product Lifecycle: Active

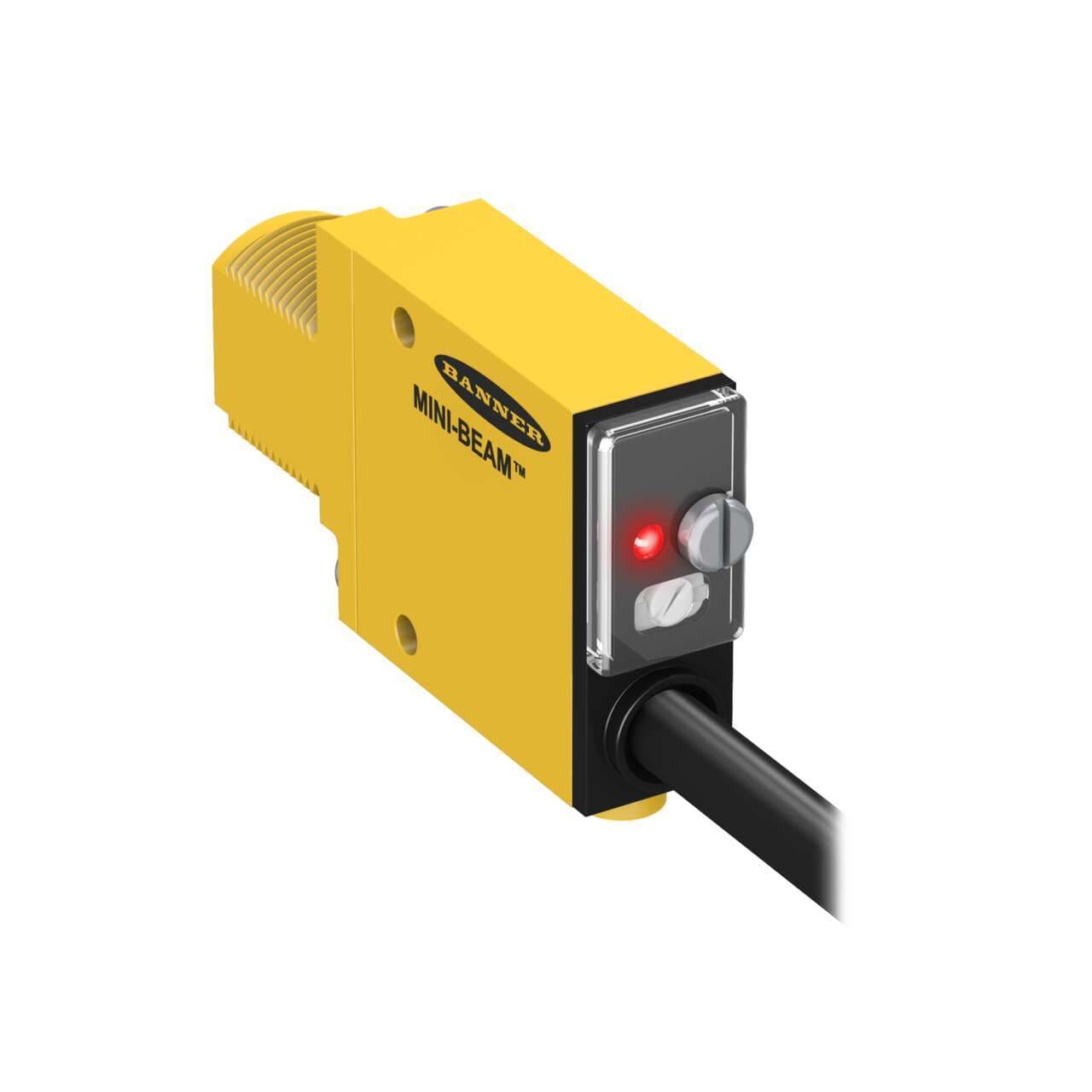

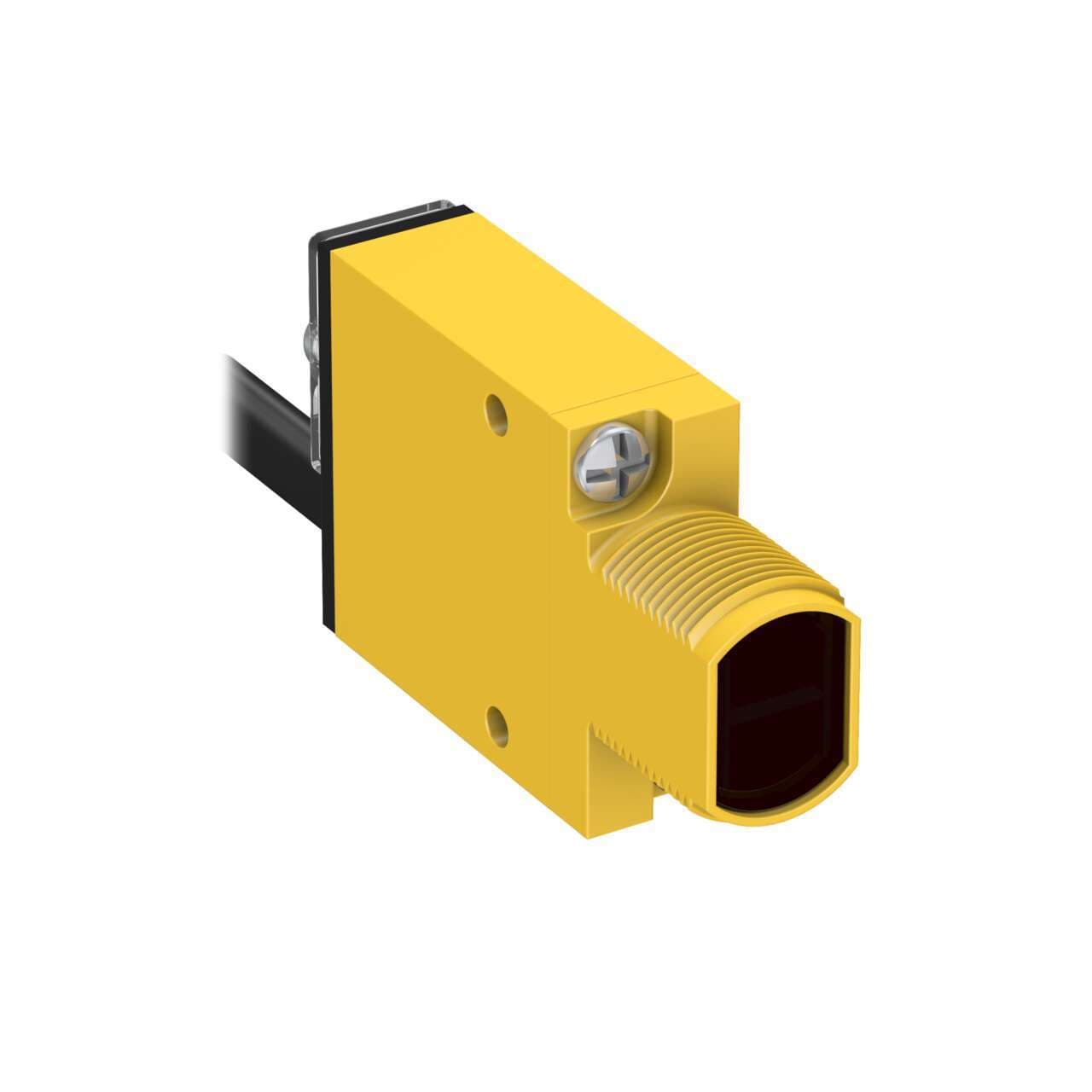

Banner Engineering SM31EMHSQDP is a photo-electric sensor from the SM312 series, designed with a through-beam system and opposed mode potentiometer adjustment. This sensor, functioning as an emitter alone, is housed in thermoplastic with an acrylic lens. It features a pre-wired 6" / 150mm pigtail terminated with a 4-pin Euro-style M12 connector for connectivity. The sensor operates on a supply voltage of 10Vdc-30Vdc, with nominal values of 12Vdc and 24Vdc, and is mounted using an M18 threaded mount. It is designed to operate within an ambient air temperature range of -20 to +70°C. The SM31EMHSQDP offers a degree of protection rated at IP67, NEMA 1, 2, 3, 3S, 4, 4X, 6, and 12, ensuring durability in various environmental conditions. Its rectangular shape allows for a sensing distance of up to 3m, utilizing infrared (IR) light, and it boasts a rapid response time of 0.3ms / 0.0003 s.
![SM31EMHSQDP](/_next/image?url=https%3A%2F%2Fappstoragepublicprod.s3.us-west-1.amazonaws.com%2FPartImage%2Fb30c55e6-e59b-4221-817f-86764179c318.jpeg&w=3840&q=75)
Banner Engineering SM31EMHSQDP is a photo-electric sensor from the SM312 series, designed with a through-beam system and opposed mode potentiometer adjustment. This sensor, functioning as an emitter alone, is housed in thermoplastic with an acrylic lens. It features a pre-wired 6" / 150mm pigtail terminated with a 4-pin Euro-style M12 connector for connectivity. The sensor operates on a supply voltage of 10Vdc-30Vdc, with nominal values of 12Vdc and 24Vdc, and is mounted using an M18 threaded mount. It is designed to operate within an ambient air temperature range of -20 to +70°C. The SM31EMHSQDP offers a degree of protection rated at IP67, NEMA 1, 2, 3, 3S, 4, 4X, 6, and 12, ensuring durability in various environmental conditions. Its rectangular shape allows for a sensing distance of up to 3m, utilizing infrared (IR) light, and it boasts a rapid response time of 0.3ms / 0.0003 s.
Product details
- Feature: AudibleNo
- IO LinkNo
- DeviceNetNo
- Feature: Chemical ResistantNo
- Feature: Hazardous AreaNo
- Feature: EncapsulatedYes
- Feature: Timing (Hold/Delay)No
- Opposed Mode Emitter/ReceiverEmitter
- IndicatorLEDs
- AdjustmentsPotentiometer
- Barrel Diameter (mm)18
- Lens MaterialAcrylic
- Max Op. Relative Humidity [%]90% @ 50°C
- NEMA RatingNEMA 1, 2, 3, 3S, 4, 4X, 6, 12
- IP RatingIP67
- Number of Pins4
- Repeatability (µs)140
- Special Feature: Water DetectionNo
- Delay at Power-up (ms)100
- Special Feature: Intrinsically SafeNo
- Special Feature: Remote TeachNo
- Output response time (ms)0.3
- Max Op. Temp. (°C)70
- OperationN/A
- Min Op. Temp. (°C)-20
- ConnectionPigtail QD
- Quick Disconnect TypeM12 (Euro)
- Power Supply/Supply Voltage10-30 V dc
- Cable Length (m)0.15
- OutputsN/A
- Max Sensing Distance (mm)3000
- Housing StyleRectangular w/M18 Mount
- Primary Housing MaterialThermoplastic
- PowerDC
- Sensing Mode (Detailed)Emitter
- Sensing Mode (General)Opposed
- Sensing BeamInfrared LED
- Light ColorInfrared (IR)
- Main functionSensor (Photo-electric)
- Supply voltage (DC)10Vdc-30Vdc (12Vdc / 24Vdc nom.)
- Connection typePre-wired with 6" / 150mm pigtail terminated with 4-pin Euro-style M12 connector
- Sub-range nameSM312
- ShapeRectangular
- Primary brandBanner Engineering
- Designthrough-beam system / opposed mode
- Thread sizeM18
- Mounting modeThreaded mount
- Ambient air temperature for operation-20...+70 °C
- Product series / family nameMINI-BEAM series
- FunctionsPhoto-electric emitter red LED (power ON) potentiometer adjustment
- Degree of protectionIP67 NEMA 1 NEMA 2 NEMA 3 NEMA 3S NEMA 4 NEMA 4X NEMA 6 NEMA 12 NEMA 13
- Response time0.3ms / 0.0003 s
- Materialthermoplastic housing Acrylic lns.
- Order code / Manufacturer SKU35667
- Compliant with standard(s)cURus CSA CE
