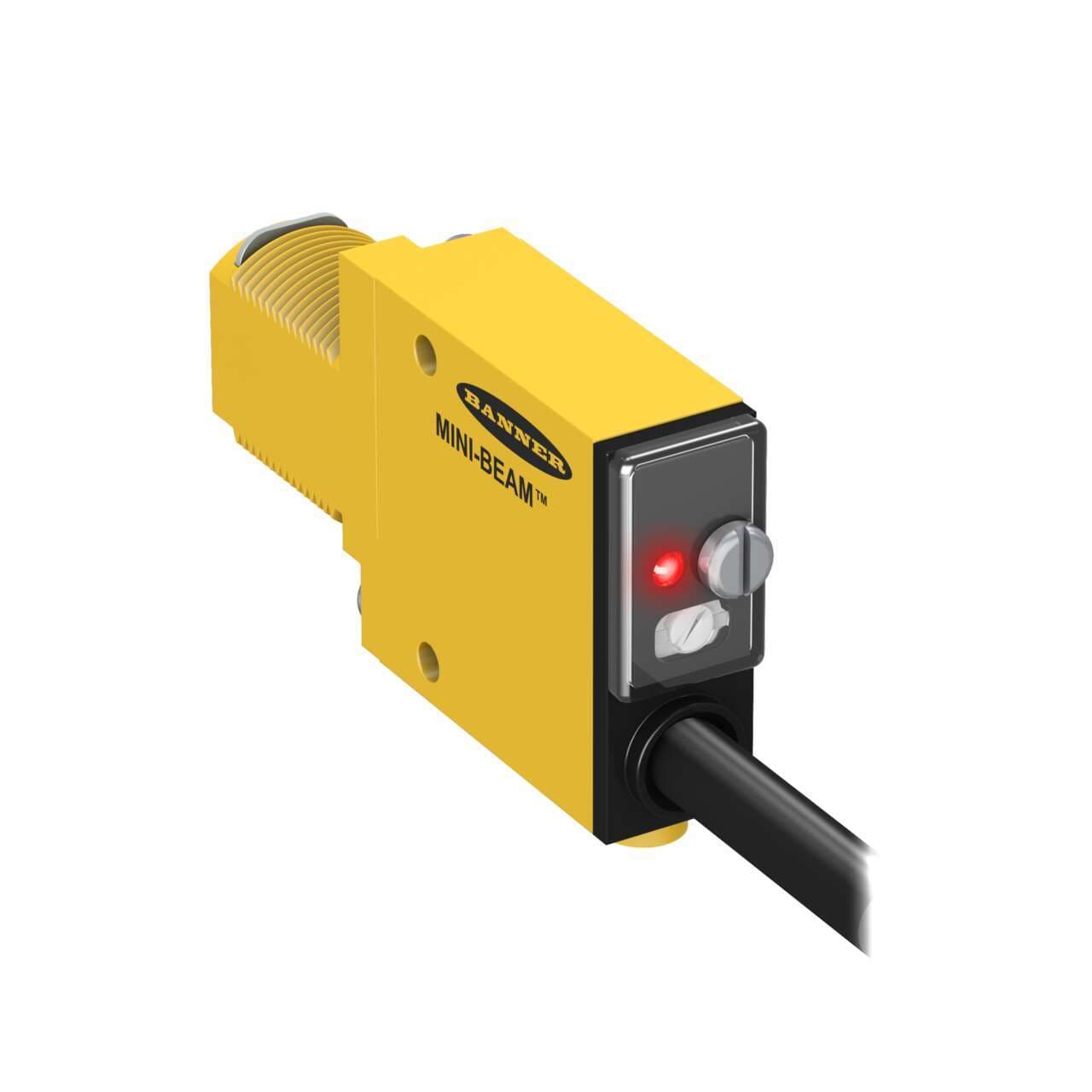

SM312FVMHS Banner Proximity Sensors

SM312FVMHS on Powermatic Associates
Banner

Part#:SM312FVMHS

Alt. Part#:26586

Manufacturer:Banner

Category:Proximity Sensors

Product Lifecycle:Active

Product description

MINI-BEAM: Visible Rd High Speed Glass Fiber Optic; Range: Depends on Fiber; Input: 10-30 V dc; Output: Bipolar: 1 NPN; 1 PNP; MHS Response Time = 0.3 ms; 2 m (6.5 ft)Cable

Product Details

  • Weight
    151.95332 g
  • Country Of Origin
    US
  • Housing Material
    Thermoplastic
  • IO Link
    No
  • Feature: Timing (Hold/Delay)
    No
  • Feature: Audible
    No
  • Feature: Hazardous Area
    No
  • Special Feature: Bussable Power
    No
  • Minimum response time (ms)
    .3
  • Indicator Display Type
    Indicator LEDs
  • Delay at Power-up (ms)
    100
  • Adjustments
    Potentiometer
  • Special Feature: Remote Teach
    No
  • Intrinsically Safe
    No
  • Power Supply/Supply Voltage
    10-30 V dc
  • Max Op. Relative Humidity (%)
    90% @ 50°C
  • IP Rating
    IP67
  • Min Op. Temperature (°C)
    -20
  • Repeatability (µs)
    300
  • Max Op. Temperature (°C)
    70
  • Number of Pins
    4
  • NEMA Rating
    NEMA 1, 2, 3, 3S, 4, 4X, 6, 12
  • Quick Disconnect Type
    No QD
  • Output Type (Specific)
    Single Discrete
  • Cable Length (m)
    2
  • Color LED - Amplifiers
    Red
  • Input/Output
    Discrete
  • Fiber Type
    Glass Only
  • Connection
    Cable
  • Output
    Bipolar (NPN & PNP)
  • Primary Housing Material
    Thermoplastic
  • Housing Style
    Rectangular w/M18 Mount
  • Power
    DC

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of SM312FVMHS on Powermatic Associates is $148.00. Order now.


About the product

Banner Engineering SM312FVMHS is a photo-electric fiber optic sensor within the SM312 series, featuring a potentiometer adjustment for glass fiber. This sensor is housed in thermoplastic with glass fiber material and comes pre-wired with a 6.5ft / 2m cable terminated with bare end flying leads. It operates on a supply voltage of 10Vdc-30Vdc (12Vdc / 24Vdc nom.) and is designed for M18 threaded mount installation. The ambient air temperature for operation ranges from -20 to +70°C. It boasts a degree of protection rated at IP67, NEMA 1, NEMA 2, NEMA 3, NEMA 3S, NEMA 4, NEMA 4X, NEMA 6, NEMA 12, ensuring durability in various environments. The sensor has a rectangular shape, includes 1 x digital output (PNP/NPN transistor), emits visible red light with a wavelength of 650 nm, and offers a quick response time of 0.3ms / 0.0003 s. Its operating modes include Light-ON and Dark-ON.
