SM2A30SRLQDB Banner Proximity Sensors

SM2A30SRLQDB on Powermatic Associates
Banner

Part#:SM2A30SRLQDB

Manufacturer:Banner

Category:Proximity Sensors

Alt. Part#:27381

Product Lifecycle:Active

Get a quick Quote!

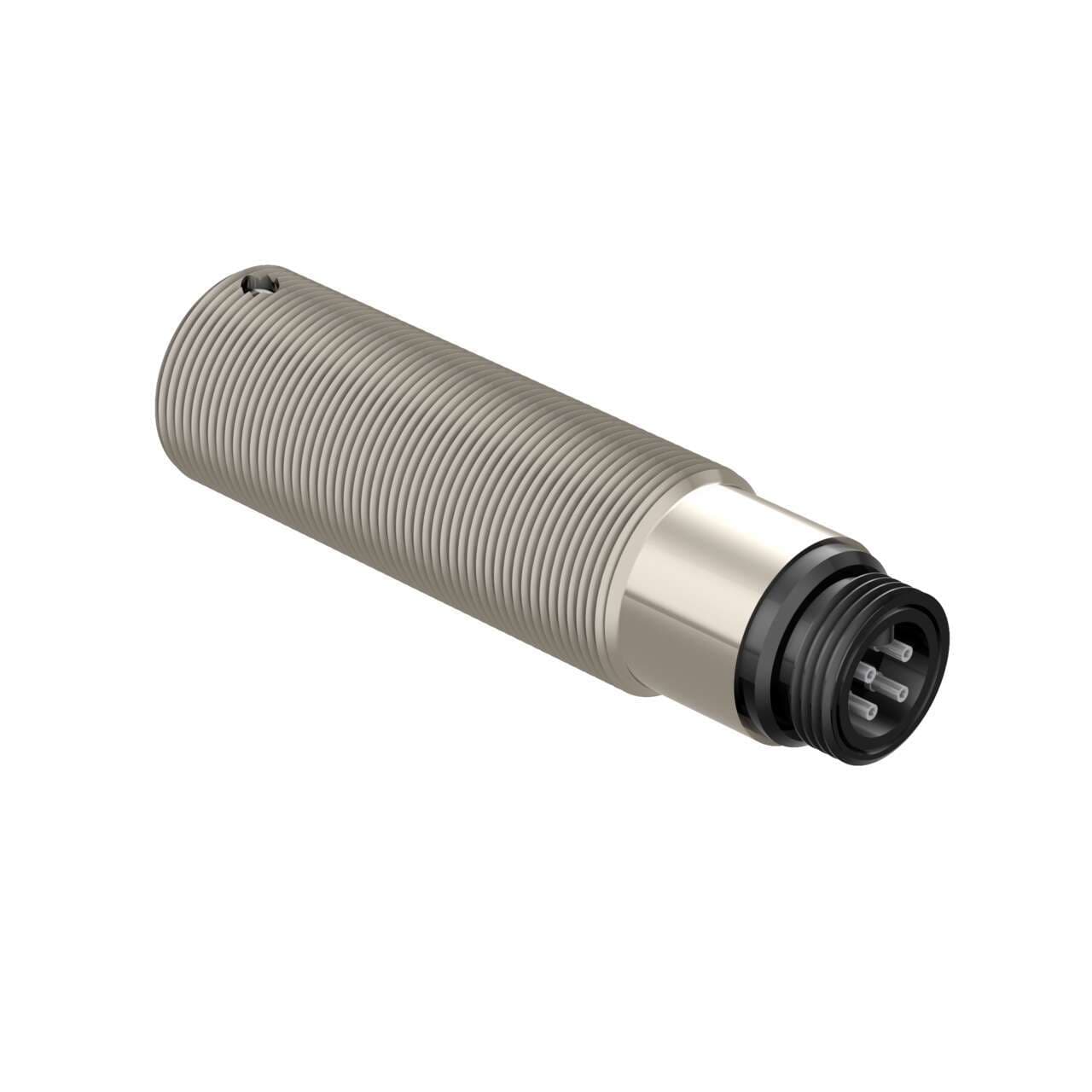

SM30 Series: Receiver - Frequency B Stainless Stl; Range: 150 m; Input: 24-240 V ac; Output: SPST Solid-State - Light Operate; 3-pin Mini Integral QD

About the manufacturer: Banner is one of the manufacturers that offers Proximity Sensors that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the SM2A30SRLQDB Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    300.277904 g
  • Country Of Origin
    MX
  • IO Link
    No
  • Feature: Audible
    No
  • Feature: Encapsulated
    Yes
  • Indicator
    LEDs
  • Barrel Diameter (mm)
    30
  • Adjustments
    N/A
  • Lens Material
    Acrylic
  • IP Rating
    IP67
  • NEMA Rating
    NEMA 6P
  • Number of Pins
    3
  • Repeatability (µs)
    1500
  • Delay at Power-up (ms)
    N/A
  • Min Op. Temp. (°C)
    -40
  • Max Op. Temp. (°C)
    70
  • Connection
    Integral QD
  • DeviceNet
    No
  • Feature: Chemical Resistant
    Yes
  • Feature: Hazardous Area
    No
  • Feature: Timing (Hold/Delay)
    No
  • Opposed Mode Emitter/Receiver
    Receiver
  • Max Op. Relative Humidity [%]
    90% @ 50°C
  • Special Feature: Remote Teach
    No
  • Power Supply/Supply Voltage
    24-240 V ac
  • Special Feature: Water Detection
    No
  • Operation
    Light Operate
  • Special Feature: Intrinsically Safe
    No
  • Output response time (ms)
    10
  • Quick Disconnect Type
    7/8 in. (Mini)
  • Outputs
    Solid-State AC Switch
  • Max Sensing Distance (mm)
    150000
  • Input/Output
    Solid-State AC Switch
  • Primary Housing Material
    Stainless Steel
  • Housing Style
    Barrel
  • Power
    AC
  • Sensing Mode (Detailed)
    Receiver
  • Sensing Mode (General)
    Opposed
  • Sensing Beam
    Infrared LED
  • Primary brand
    Banner Engineering
  • Supply voltage (AC)
    24Vac-240Vac (200Vac / 220Vac nom.)
  • Wavelength
    880 nm
  • Operating mode
    Light-ON
  • Order code / Manufacturer SKU
    27381
  • Sub-range name
    SM30 series
  • Connection type
    Pre-equipped with 3-pin 7/8" Mini connector
  • Material
    Stainless steel housing
  • Main function
    Sensor (Photo-electric)
  • Design
    through-beam system / opposed mode "B" modulation frequency washdown rated
  • Thread size
    M30
  • Digital outputs
    1 x digital output (Solid-state AC output)
  • Ambient air temperature for operation
    -40...+70 °C
  • Product series / family name
    EZ-BEAM series
  • Functions
    Photo-electric sensor receiver red LED (power ON)
  • Light Color
    Infrared (IR)
  • Shape
    Cylindrical threaded/barrel
  • Degree of protection
    IP67 NEMA 6P
  • Sensing distance
    150m
  • Response time
    10ms / 0.01 s
  • Compliant with standard(s)
    cURus CSA CE

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

SM2A30SRLQDB Description

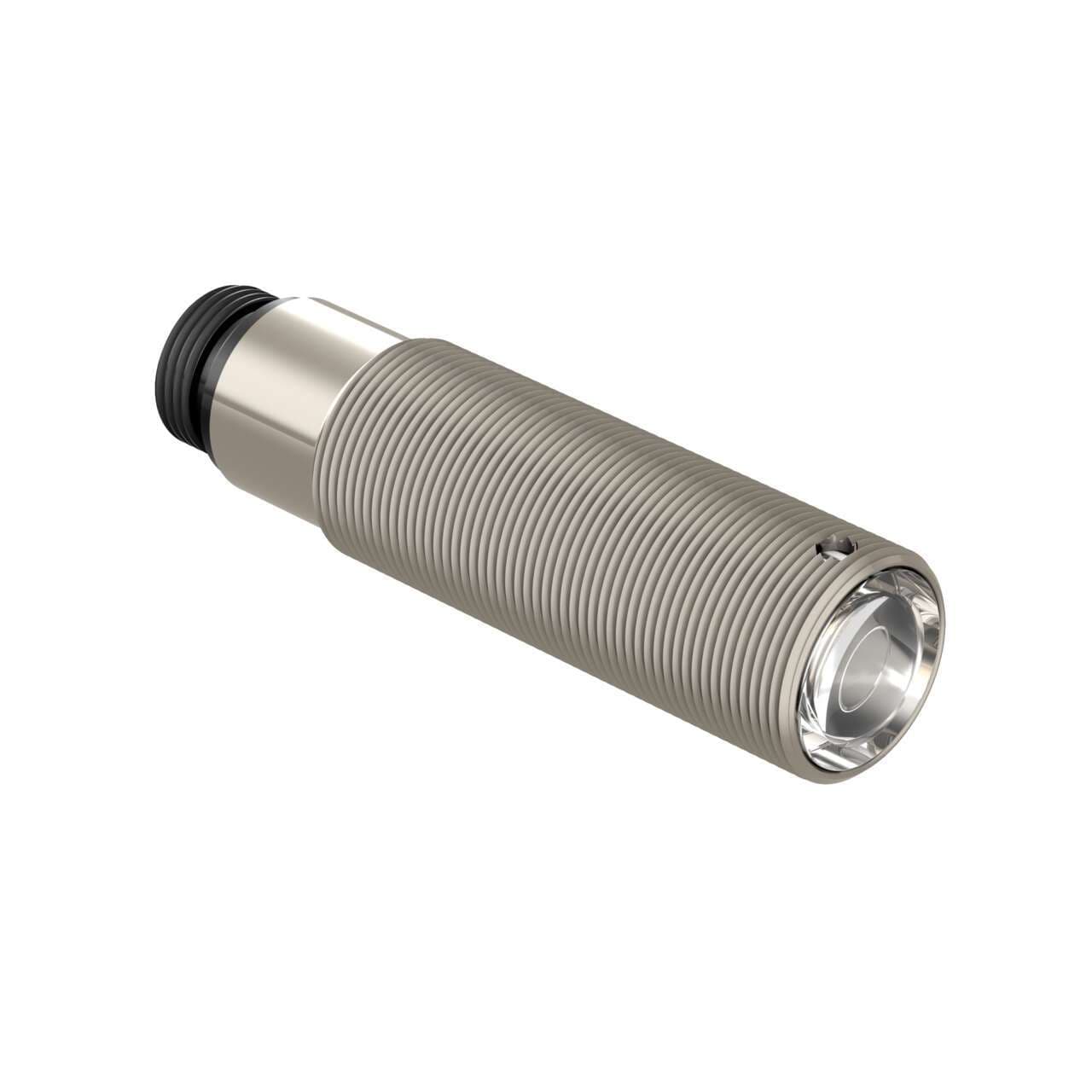

Banner Engineering SM2A30SRLQDB is a photo-electric sensor designed for through-beam system applications, part of the SM30 series. This sensor operates as the receiver in an opposed mode "B" modulation frequency system, suitable for washdown environments. It features a durable stainless steel housing and is equipped with a 3-pin 7/8" mini connector for connectivity. The sensor is designed to work with a supply voltage range of 24Vac to 240Vac, with nominal voltages at 200Vac and 220Vac. It can operate within an ambient air temperature range of -40 to +70°C. The SM2A30SRLQDB offers a high degree of protection with ratings of IP67, NEMA 6P, and IP69K, making it suitable for harsh conditions. Its M30 cylindrical threaded/barrel shape allows for straightforward installation. The sensor provides one digital output (Solid-state AC output) and has a sensing distance of up to 150 meters. It utilizes infrared light with a wavelength of 880 nm and has a quick response time of 10ms (0.01 s). The operating mode for this sensor is Light-ON.

Related documents SM2A30SRLQDB Specs

SM2A30SRLQDB 03541.pdf
