SLSR30-450NQ8 Banner Safety Light Curtains

SLSR30-450NQ8 on Powermatic Associates
Banner
  • SLSR30-450NQ8
  • SLSR30-450NQ8

Part#:SLSR30-450NQ8

Alt. Part#:75662

Manufacturer:Banner

Category:Safety Light Curtains

Product Lifecycle:Active

Product description

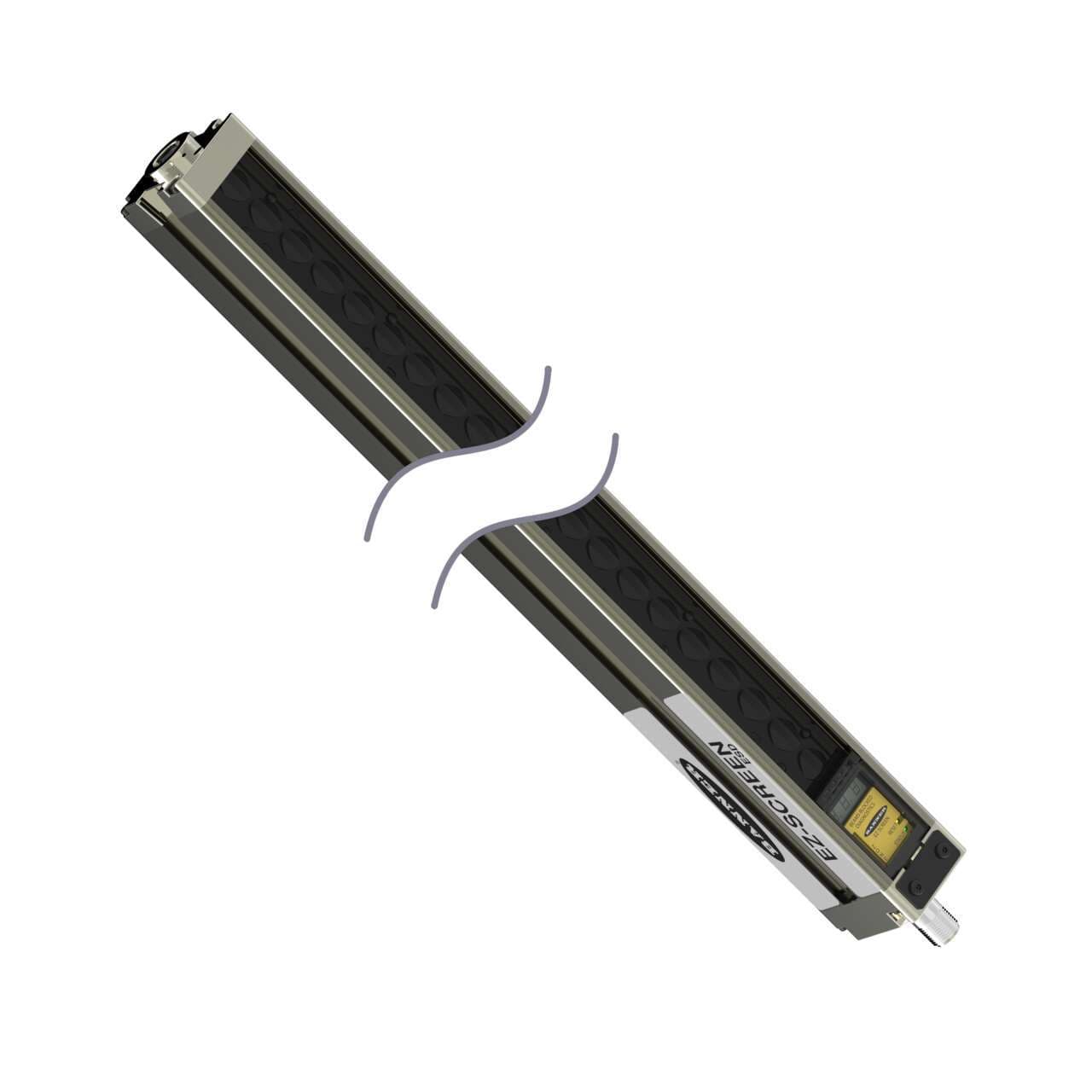

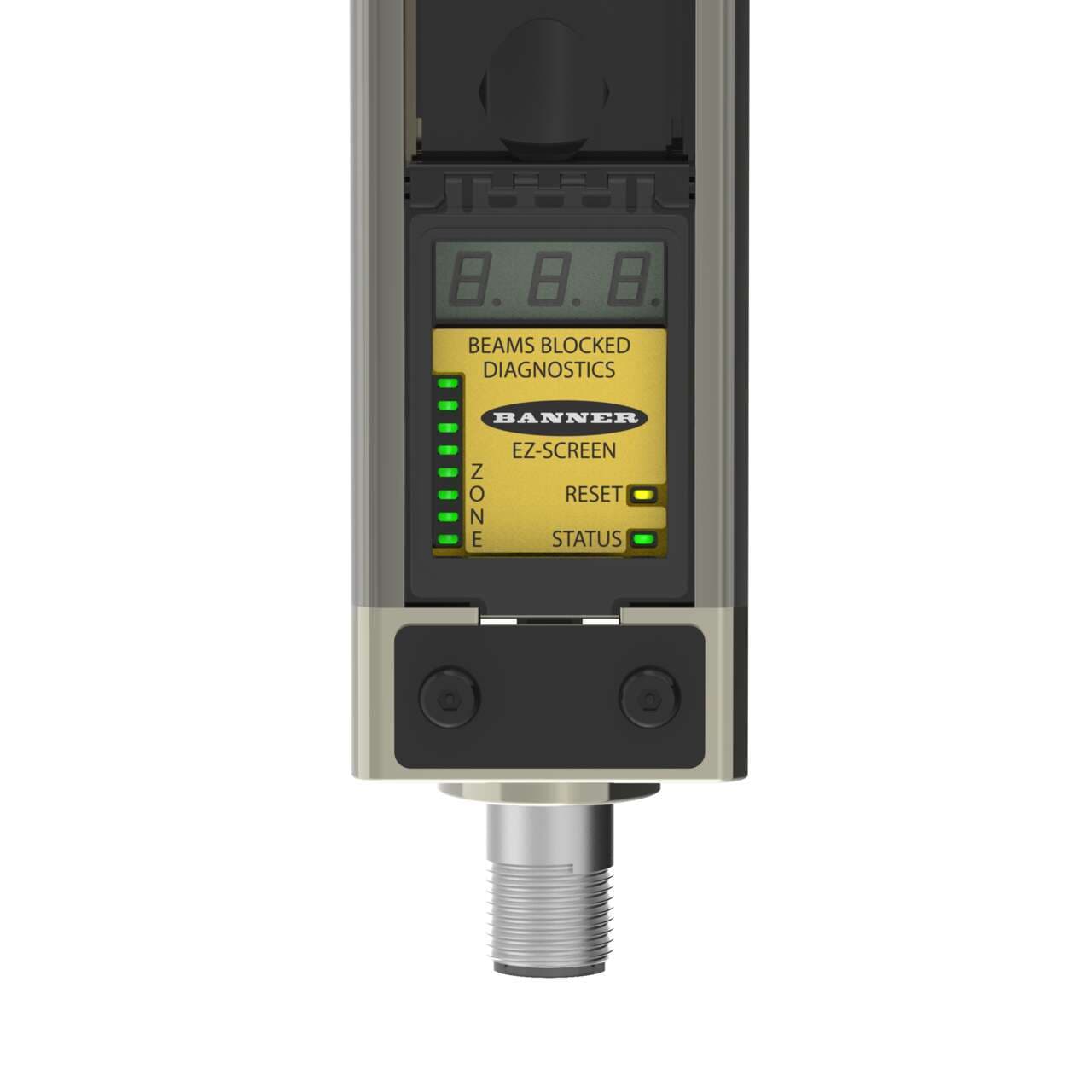

EZ-SCREEN Receiver; Resolution: 30 mm; Range: 18 m (60 ft); Defined Area: 450 mm (17.7 in); Housing Length: 522 mm (20.6 in); Connection: 8-pin M12 Connector

Product Details

  • Weight
    712.13944 g
  • Country Of Origin
    MX
  • Feature: Integral Muting
    No
  • Feature: End-to-End Sensing
    No
  • Test Input
    No
  • Feature: ESD Safe
    Yes
  • Supply Current
    275 mA max.
  • Housing Material
    Aluminum; Zinc; Acrylic
  • Trip/Latch Output
    Selectable
  • OSSD Rating
    24 V dc at 0.5 A each
  • Fault Output
    No
  • Auxiliary Output
    Yes
  • Electrical Safety Class
    III
  • SIL Rating
    SIL3; CL3
  • Number of Pins (Receiver/Emitter)
    8
  • Vibration
    10-55 Hz at 0.35 mm
  • Short Protection
    Yes
  • System Type
    Receiver
  • Shock
    10g at 16ms (6000 cycles)
  • Scan Code
    Selectable
  • Operating Distance (m)
    0.1 - 18
  • Operating Temperature
    0 to +55 deg. C; RH 95%
  • Operating Voltage
    24 V dc +/- 15%
  • Response Time
    13
  • Reduced Resolution
    Yes
  • Resolution (mm)
    30
  • Recovery Time
    25-152 / 81-495
  • PL Rating
    Ple
  • IP Rating
    IP65
  • Housing Finish
    Nickel Plated
  • Fixed Blanking
    Yes
  • Effective Aperture Angle
    Type 4 Per IEC 61496-2
  • Defined Area Height (mm)
    450
  • Connector Type
    M12
  • External Monitoring Device
    1 or 2 Channel
  • Dimensions WxD (mm)
    36 x 45.2
  • Overall Length (mm)
    522
  • Primary Housing Material
    Aluminum
  • Safety Level
    Type 4
  • low-profile
    No

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of SLSR30-450NQ8 on Powermatic Associates is $1,234.00. Order now.

About the product

Banner Engineering SLSR30-450NQ8 is a safety light curtain designed for hand detection with a protective height of 450mm and a resolution of 30mm. This part of the 14/30 series features an ESD-safe design with an aluminium housing, acrylic lens, and die-cast zinc end caps. It is pre-equipped with an 8-pin Euro-style M12 connector for connectivity. The color of the housing is yellow, and it operates on a 24Vdc supply voltage. The SLSR30-450NQ8 can function within an ambient air temperature range of 0 to +55°C and has an IP65 degree of protection. Its dimensions include a net width of 36mm, a net height of 522mm, and a net depth of 46mm. The light curtain offers a sensing distance between 10cm and 18m, with 30mm beam spacing/pitch. It features 2 x digital outputs (24Vdc; 500mA; sourcing; redundant OSSD solid-state outputs), 1 x digital output (24Vdc; sourcing/PNP transistor; 75mA) for auxiliary output, 1 x digital input (10Vdc-30Vdc) for EDM input, and 1 x digital input (10Vdc-30Vdc) for RESET input. The response time of the device is 13ms / 0.013 s.
