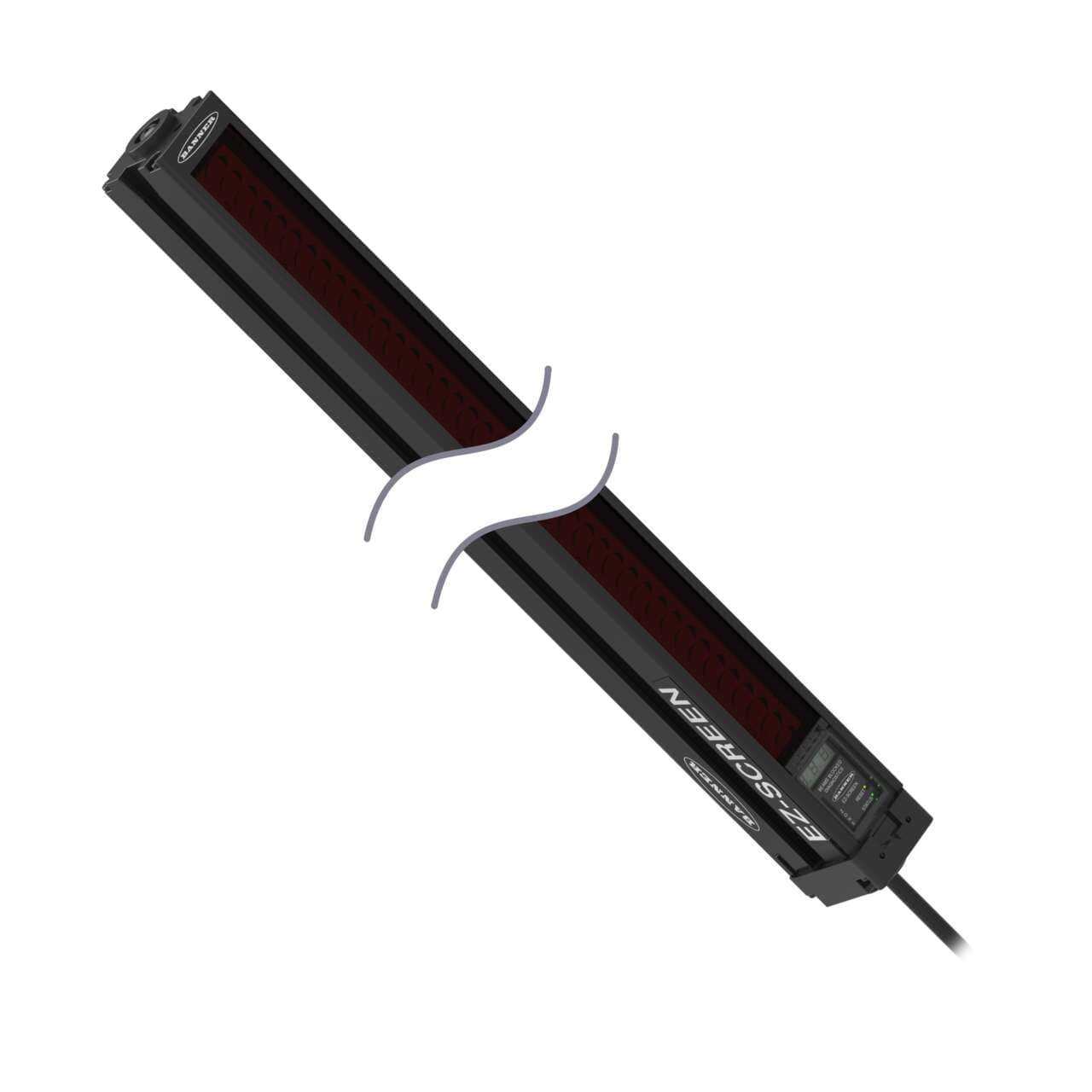

SLSR30-1200P4NT Banner Safety Light Curtains

SLSR30-1200P4NT on Powermatic Associates
Banner
  • SLSR30-1200P4NT
  • SLSR30-1200P4NT

Part#:SLSR30-1200P4NT

Alt. Part#:85424

Manufacturer:Banner

Category:Safety Light Curtains

Product Lifecycle:Active

Product description

EZ-SCREEN Receiver; Resolution: 30 mm; Range: 18 m (60 ft); Defined Area: 1200 mm (47.2 in); Housing Length: 1270 mm (50.0 in); Connection: 4-pin M12 Pigtail Connector

Product Details

  • Weight
    4354.4832 g
  • Country Of Origin
    MX
  • Feature: Integral Muting
    No
  • Test Input
    No
  • Supply Current
    275 mA max.
  • Feature: ESD Safe
    No
  • Feature: End-to-End Sensing
    No
  • Trip/Latch Output
    Selectable
  • Auxiliary Output
    Yes
  • Fault Output
    No
  • Housing Material
    Aluminum; Zinc; Acrylic
  • OSSD Rating
    24 V dc at 0.5 A each
  • Vibration
    10-55 Hz at 0.35 mm
  • System Type
    Receiver
  • Short Protection
    Yes
  • Shock
    10g at 16ms (6000 cycles)
  • Scan Code
    Selectable
  • Electrical Safety Class
    III
  • SIL Rating
    SIL3; CL3
  • Response Time
    23
  • Reduced Resolution
    Yes
  • Resolution (mm)
    30
  • Number of Pins (Receiver/Emitter)
    4
  • Recovery Time
    25-152 / 81-495
  • Operating Temperature
    0 to +55 deg. C; RH 95%
  • PL Rating
    Ple
  • Operating Voltage
    24 V dc +/- 15%
  • Operating Distance (m)
    0.1 - 18
  • Fixed Blanking
    Yes
  • Housing Finish
    Yellow Polyester
  • IP Rating
    IP65
  • Dimensions WxD (mm)
    36 x 45.2
  • External Monitoring Device
    1 or 2 Channel
  • Effective Aperture Angle
    Type 4 Per IEC 61496-2
  • Overall Length (mm)
    1270
  • Defined Area Height (mm)
    1200
  • Safety Level
    Type 4
  • Connector Type
    M12 Pigtail (Yellow)
  • Primary Housing Material
    Aluminum
  • low-profile
    No

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of SLSR30-1200P4NT on Powermatic Associates is $2,276.00. Order now.

About the product

Banner Engineering SLSR30-1200P4NT is a safety light curtain designed for hand detection with a resolution of 30mm and a protective height of 1200mm. This part of the 14/30 series features an aluminium housing with an acrylic lens and die-cast zinc end caps, and it comes pre-wired with a 300mm pigtail terminated with a 4-pin Euro-style M12 connector. It operates on a 24Vdc supply voltage and can function within an ambient air temperature range of 0 to +55°C. The SLSR30-1200P4NT offers a degree of protection rated at IP65 and has dimensions of 36mm in width, 1270mm in height, and 46mm in depth. It is designed with a no test / no ground wire design and is characterized by a yellow housing. The safety light curtain provides a sensing distance from 10cm to 18m and features 30mm beam spacing/pitch. It includes 2 x digital outputs (24Vdc; 500mA; sourcing; redundant OSSD solid-state outputs), 1 x digital output (24Vdc; sourcing/PNP transistor; 75mA) for auxiliary output, 1 x digital input (10Vdc-30Vdc) for EDM input, and 1 x digital input (10Vdc-30Vdc) for RESET input, with a response time of 23ms / 0.023 s.
