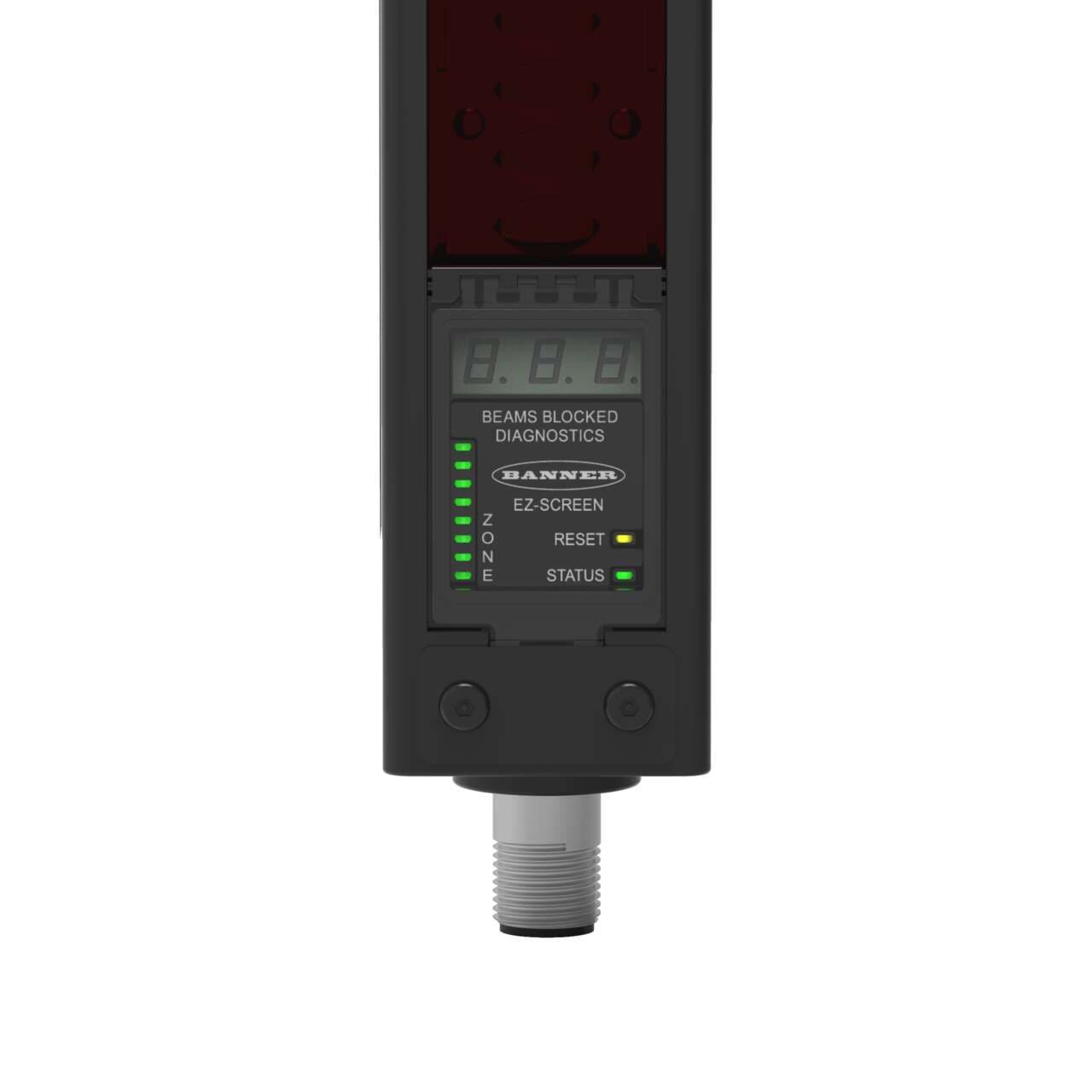

SLSR30-1800Q8 Banner Safety Light Curtains

SLSR30-1800Q8 on Powermatic Associates
Banner
  • SLSR30-1800Q8
  • SLSR30-1800Q8

Part#:SLSR30-1800Q8

Alt. Part#:71259

Manufacturer:Banner

Category:Safety Light Curtains

Product Lifecycle:Active

Product description

EZ-SCREEN Receiver; Resolution: 30 mm; Range: 18 m (60 ft); Defined Area: 1800 mm (70.9 in); Housing Length: 1869 mm (73.6 in); Connection: 8-pin M12 Connector

Product Details

  • Weight
    5937.51928 g
  • Country Of Origin
    MX
  • Feature: Integral Muting
    No
  • Feature: End-to-End Sensing
    No
  • Test Input
    No
  • Trip/Latch Output
    Selectable
  • Feature: ESD Safe
    No
  • OSSD Rating
    24 V dc at 0.5 A each
  • Supply Current
    275 mA max.
  • System Type
    Receiver
  • Fault Output
    No
  • Auxiliary Output
    Yes
  • Vibration
    10-55 Hz at 0.35 mm
  • Housing Material
    Aluminum; Zinc; Acrylic
  • Shock
    10g at 16ms (6000 cycles)
  • Electrical Safety Class
    III
  • Scan Code
    Selectable
  • SIL Rating
    SIL3; CL3
  • Short Protection
    Yes
  • Recovery Time
    25-152 / 81-495
  • Response Time
    32
  • Resolution (mm)
    30
  • Reduced Resolution
    Yes
  • Operating Temperature
    0 to +55 deg. C; RH 95%
  • Operating Voltage
    24 V dc +/- 15%
  • PL Rating
    Ple
  • Operating Distance (m)
    0.1 - 18
  • Number of Pins (Receiver/Emitter)
    8
  • IP Rating
    IP65
  • Housing Finish
    Yellow Polyester
  • Fixed Blanking
    Yes
  • External Monitoring Device
    1 or 2 Channel
  • Overall Length (mm)
    1869
  • Dimensions WxD (mm)
    36 x 45.2
  • Defined Area Height (mm)
    1800
  • Primary Housing Material
    Aluminum
  • Connector Type
    M12
  • Effective Aperture Angle
    Type 4 Per IEC 61496-2
  • Safety Level
    Type 4
  • low-profile
    No

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of SLSR30-1800Q8 on Powermatic Associates is $3,271.00. Order now.

About the product

Banner Engineering SLSR30-1800Q8 is a safety light curtain designed for hand detection with a resolution of 30mm. This component of the 14/30 series features an aluminium housing with an acrylic lens and die-cast zinc end caps, ensuring durability. It is pre-equipped with an 8-pin Euro-style M12 connector for straightforward installation. The protective height of this safety light curtain is 1800mm, housed in a yellow casing, and it operates on a 24Vdc supply voltage. It is designed to function within an ambient air temperature range of 0 to +55°C and offers a degree of protection rated at IP65. The SLSR30-1800Q8 has dimensions of 36mm in width, 1869mm in height, and 46mm in depth. It features a 30mm beam spacing/pitch and is capable of sensing distances from 10cm up to 18m. The device includes two digital outputs (24Vdc; 500mA; sourcing; redundant OSSD solid-state outputs) and one digital output (24Vdc; sourcing/PNP transistor; 75mA) for auxiliary output, alongside one digital input (10Vdc-30Vdc) for EDM input and one for RESET input. Its response time is recorded at 32ms / 0.032 s.

SLSR30-1800Q8 Related Documents

112852.pdf
